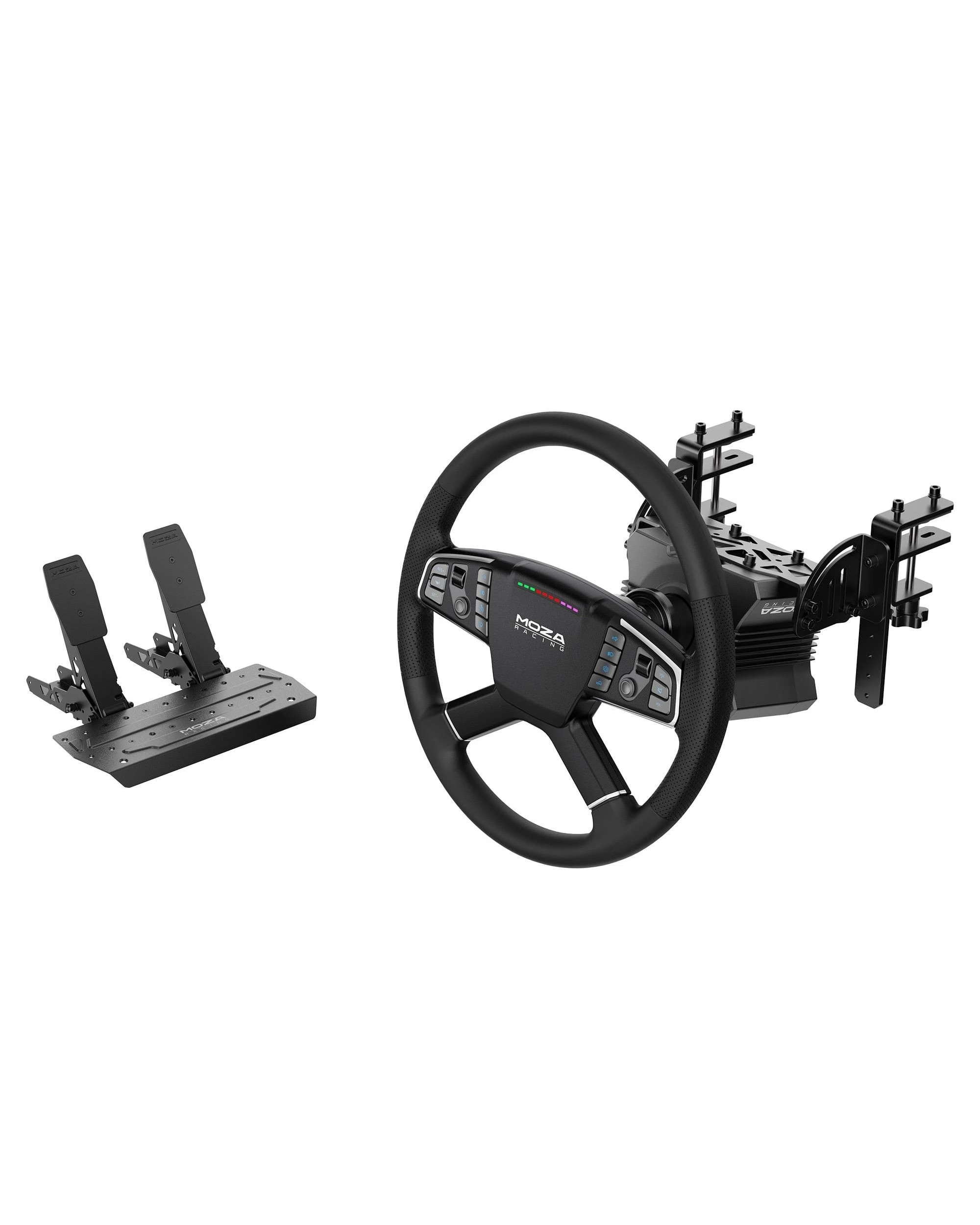

Elevate your truck simulation experience with the MOZA Trucking Bundle. This complete set includes the R5 Wheel Base for precise force feedback, the TSW Truck Wheel with customizable controls for enhanced realism, and the SR-P Lite Pedals for optimal performance. Additionally, the included Clamp for the Truck Wheel ensures secure attachment. Perfectly designed for immersive and authentic driving, the MOZA Trucking Bundle is your ultimate solution for sim racing enthusiasts.

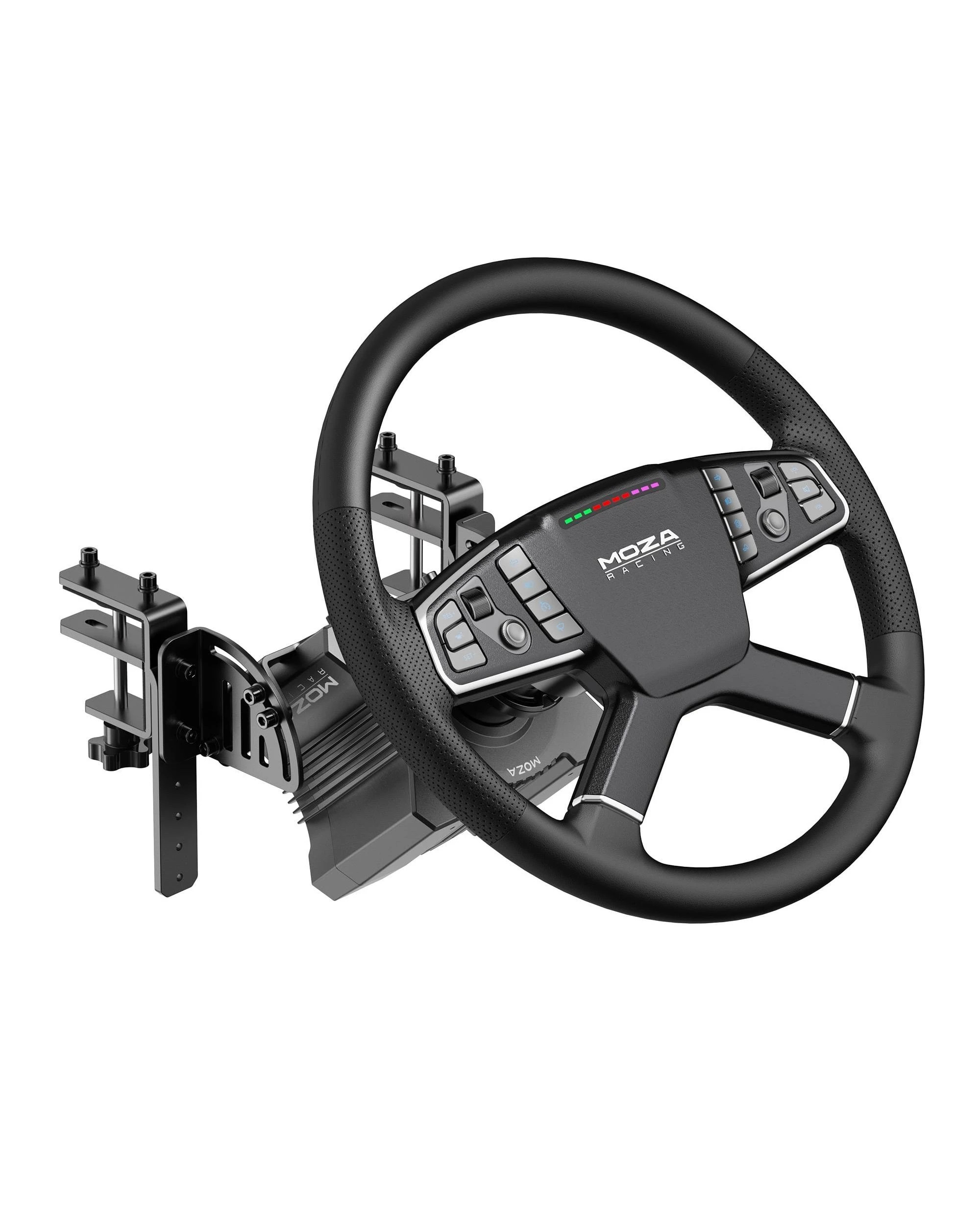

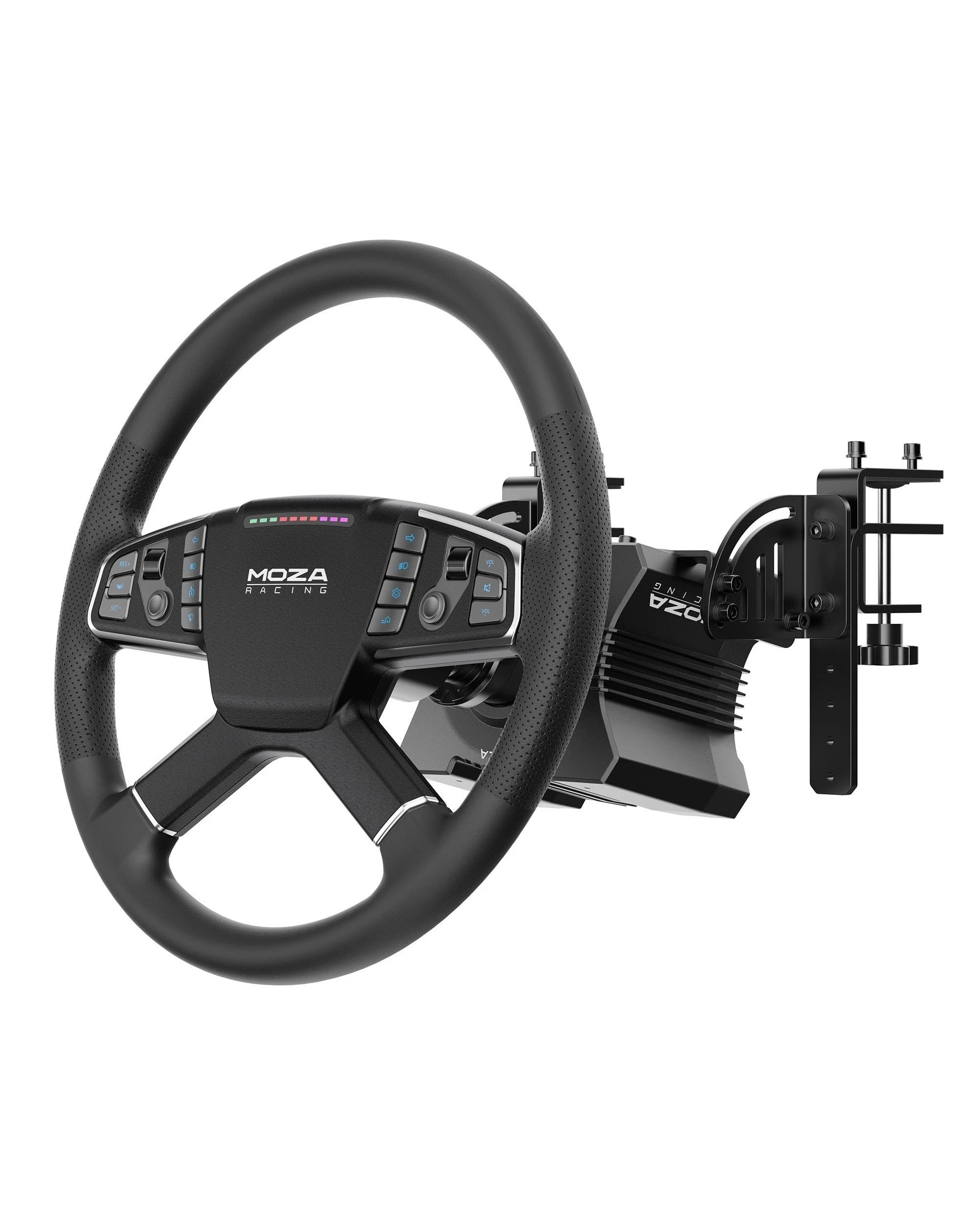

FeaturesTSW TRUCK WHEEL
Standard 400mm Truck Wheel
The world's first steering wheel tailor-made for truck simulators, featuring the popular four-spoke design and 400mm diameter found in real truck steering wheels.
Microfiber Leather with Hand Stitching
The steering wheel rim is crafted with perforated and textured microfiber leather.
Aerospace-grade Aluminium Alloy Frame
The internal frame of the steering wheel is constructed using solid 4mm-thick aerospace-grade aluminium alloy.
RGB Backlit Buttons
14 realistically shaped short travel buttons offering crisp and precise feedback with customisable RGB backlighting and icons tailored for real life truck scenarios.
Customizable RPM LED Light
It features 10 bright LED light, each capable of displaying 16.7 million colours.
Open Ecosystem & All-aluminium Quick Release
It can be directly connected to a PC via MOZA's universal adapter, making it compatible with third-party bases outside of MOZA's ecosystem. Plus MOZA's custom quick release connection system is compatible with all MOZA bases
Wireless & Conductive Slip Ring
The steering wheel communication supports both wireless and conductive slip ring modes meaning full compatibility with all MOZA bases.
Thumbwheels and Joysticks
Two aluminium thumbwheels with textured surfaces provide excellent tactile feedback for convenient operation with two ultra-thin joysticks that can function as D pads.
MOZA Pit House Software
The Pit House steering wheel control allows you to test the functionality of your wheel, adjust settings for dual-clutch paddle mode, and select between knob and joystick modes.
R5 DD WHEEL BASE
Lightweight Design, Maximum Torque
The R5 delivers maximum power with minimum volume and weight, allowing for a wider audience to get the best simracing experience.
Intelligent Temperature Control
With MOZA's onboard temperature monitoring, even endurance racers can relax knowing that the R5 DD wheelbase will provide reliable performance.
15-bit Resolution
The motor encoder sports a 15-bit ultra-high resolution, ensuring steering is accurate and gives a true-to-life feel.
Industrial Conductive Slip Ring
The base and the steering wheel are connected through a military-grade conductive slip ring.
SR-P LITE PEDALS
High-Strength Steel
Pure, high-strength steel gives these pedals a rock-solid durability and feel.
High Precision Hall Sensor
A high-precision Hall sensor ensures maximum stability and durability for your pedals.
Adjustable Pedal Spacing
Pedals can be easily spaced and configured for maximum comfort and accessibility.
Detachable, Flexible Setup
Detachable design allows for home setups or professional simulator designs.

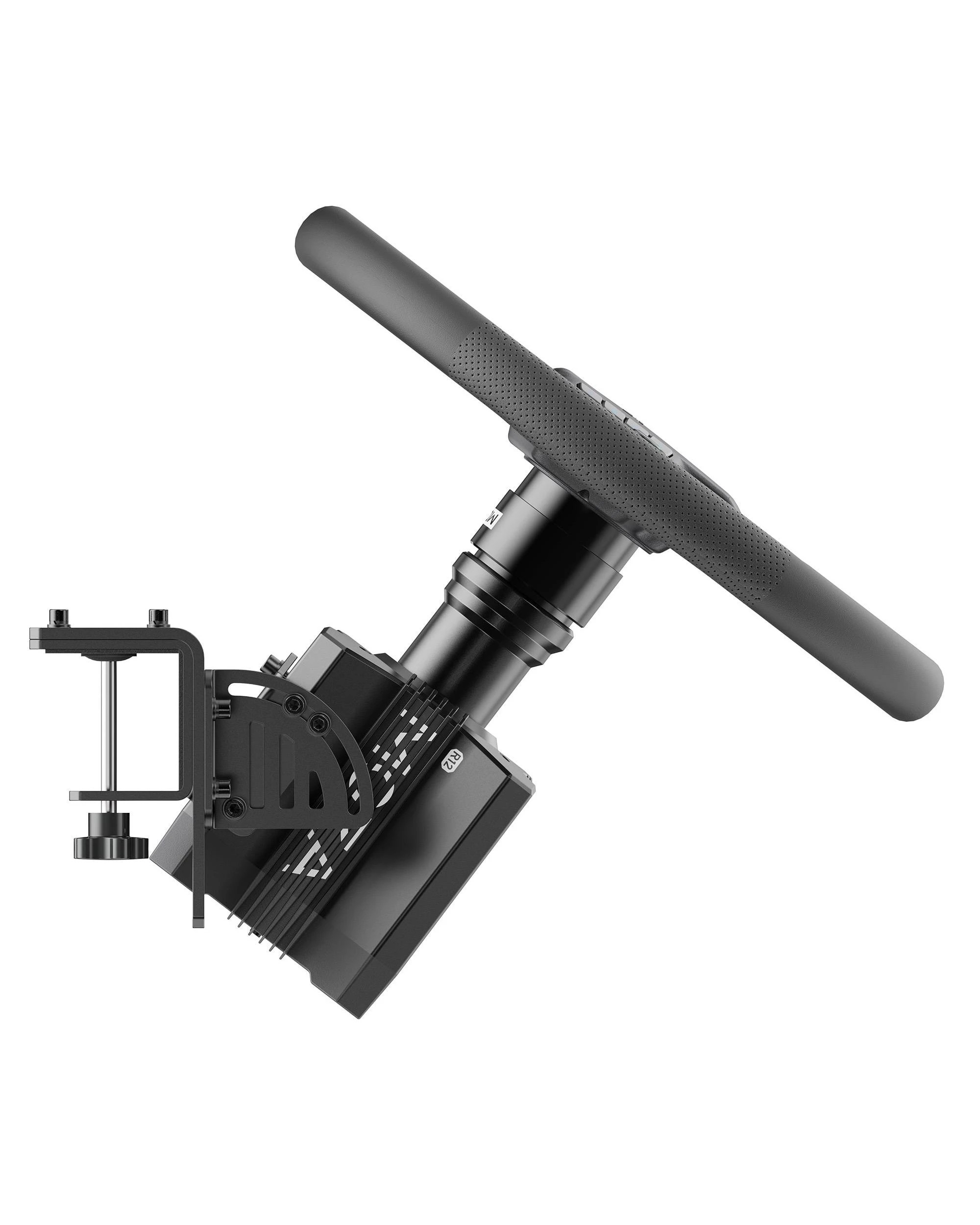

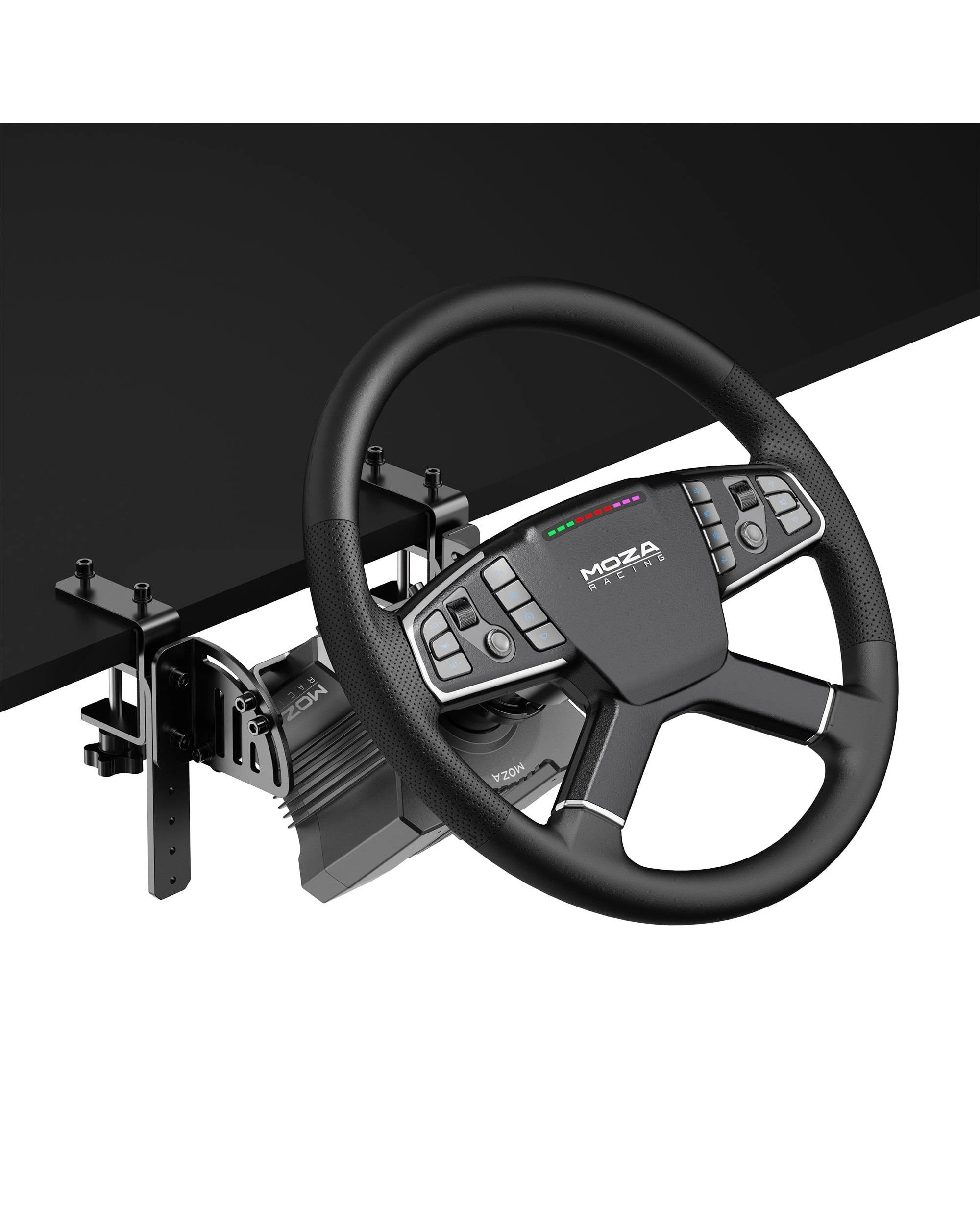

Clamp for Truck Wheel (Optional)
High-Strength Steel Build
Crafted entirely from 4-6mm thick high-strength steel.
Versatile Angle Adjustment
Enjoy angle adjustments ranging from 0 to 75 degrees, facilitating effortless customization of steering wheel angle and height.
Flexible Installation Options
Easily installable either by clamping onto desktops with a thickness of 3-70mm or mounting onto aluminium profiles, providing flexible installation solutions tailored to your setup preferences.
SpecificationsTSW TRUCK WHEEL
- Size - 400mm
- Wheel rim material - Aerospace-grade aluminium
- Spoke and hub casing - Polymer composite
- Short travel backlit buttons - 14
- Aluminium thumbwheels - 2
- Ultra-thin joysticks - 2
- RGB LED Light Beads - 10
- LED colours - 16.7 million
- Intelligent telemetry - Supported
- Release method - All-aluminium quick release
- Communication method - Wireless and wired
- Compatibility - Compatible with all MOZA bases, works with 3rd party bases via the MOZA hub.
- Truck Mount - Included
R5 DD WHEEL BASE
- Platform - PC
- FFB Drive System - Direct Drive
- Max Steering Angle - Infinite Rotation
- Housing Material - Aviation Grade Aluminium Alloy
- Colour - Black
- Peak Torque - 5.5Nm
- USB Refresh Rate - 1000Hz
- Input Voltage - 110V~220V AC —>12V DC
- Encoder Resolution - 15 bits
- App Functions - Supported
- Quick Release - Supported
- Interface - Power, Data, Display, Pedals, Wheel Input
- Accessories - User manual, Warranty card, Power supply, USB cable, Toolkit
- Mounting Method - 4 holes on the bottom
- Desktop Mounting Clip - Standard
- Online Firmware Upgrade - Supported
- Emergency Stop Switch - Optional
- Firmware Upgrade - Applicable
SR-P LITE PEDALS
- Material - High-strength Steel
- Plate Material - High-strength Steel
- Colour - Black
- Pedal Sensor Type - Hall Sensor
- Pedal Spacing - Adjustable
- Pedal Plate Height - Adjustable
- Pedal Input Adjustment - Supported
- Pedal Input Reversal - Supported
- Pedal Output Curve Adjustment - Supported
- Size - 350*270*140 (mm)
CLAMP FOR TRUCK WHEEL
- Size - 160*155*200 (mm)
- Material - High-strength steel
- Height Adjustment Range - 5mm to 70mm
- Angle Adjustment Range - 0° to 75°
Item SpecificsBarcode: 6973137270667
Manufacturer: Moza Racing
Weight (Packaged): 14.90 kg
Dimensions: 47.00cm x 47.00cm x 32.00cm
