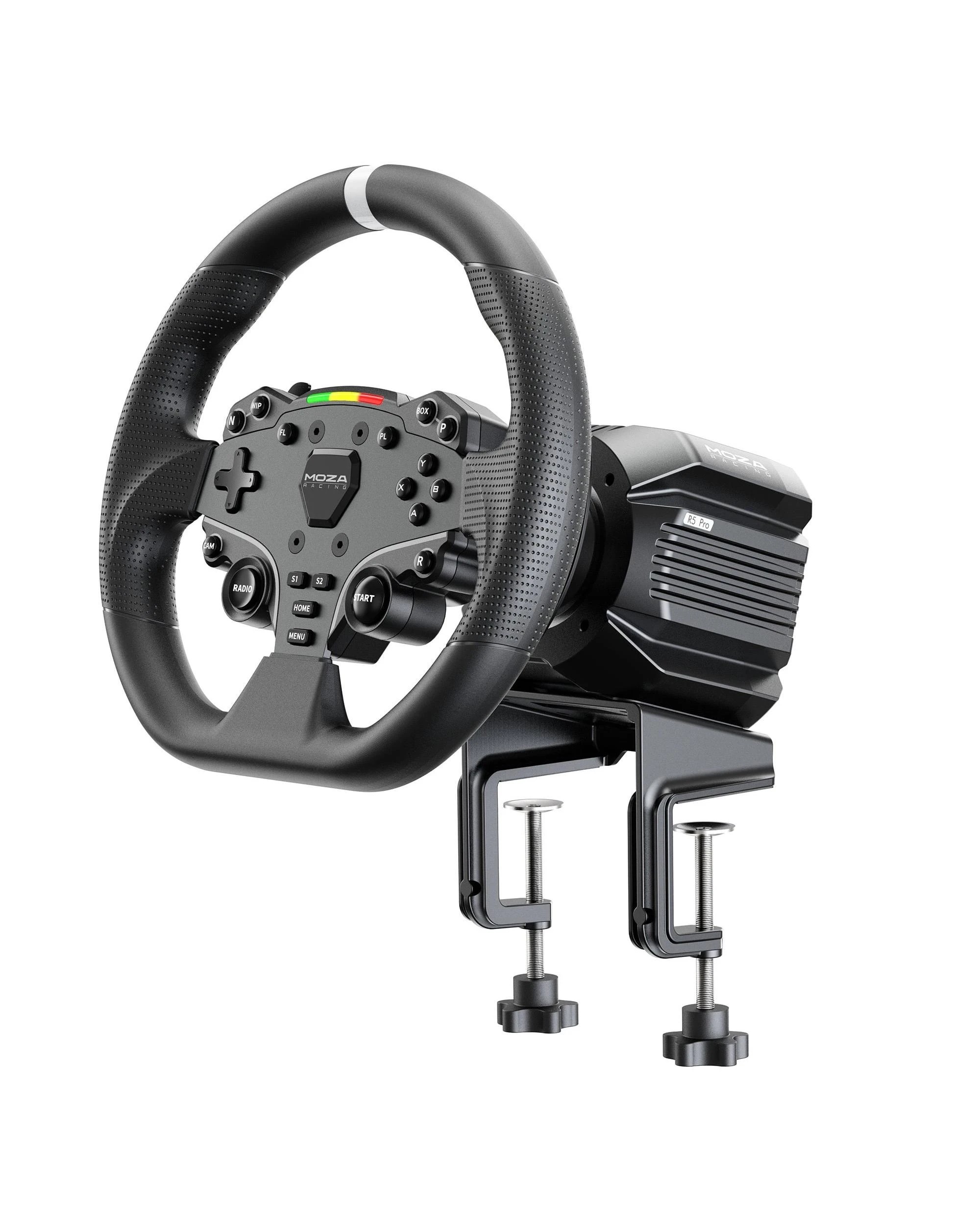

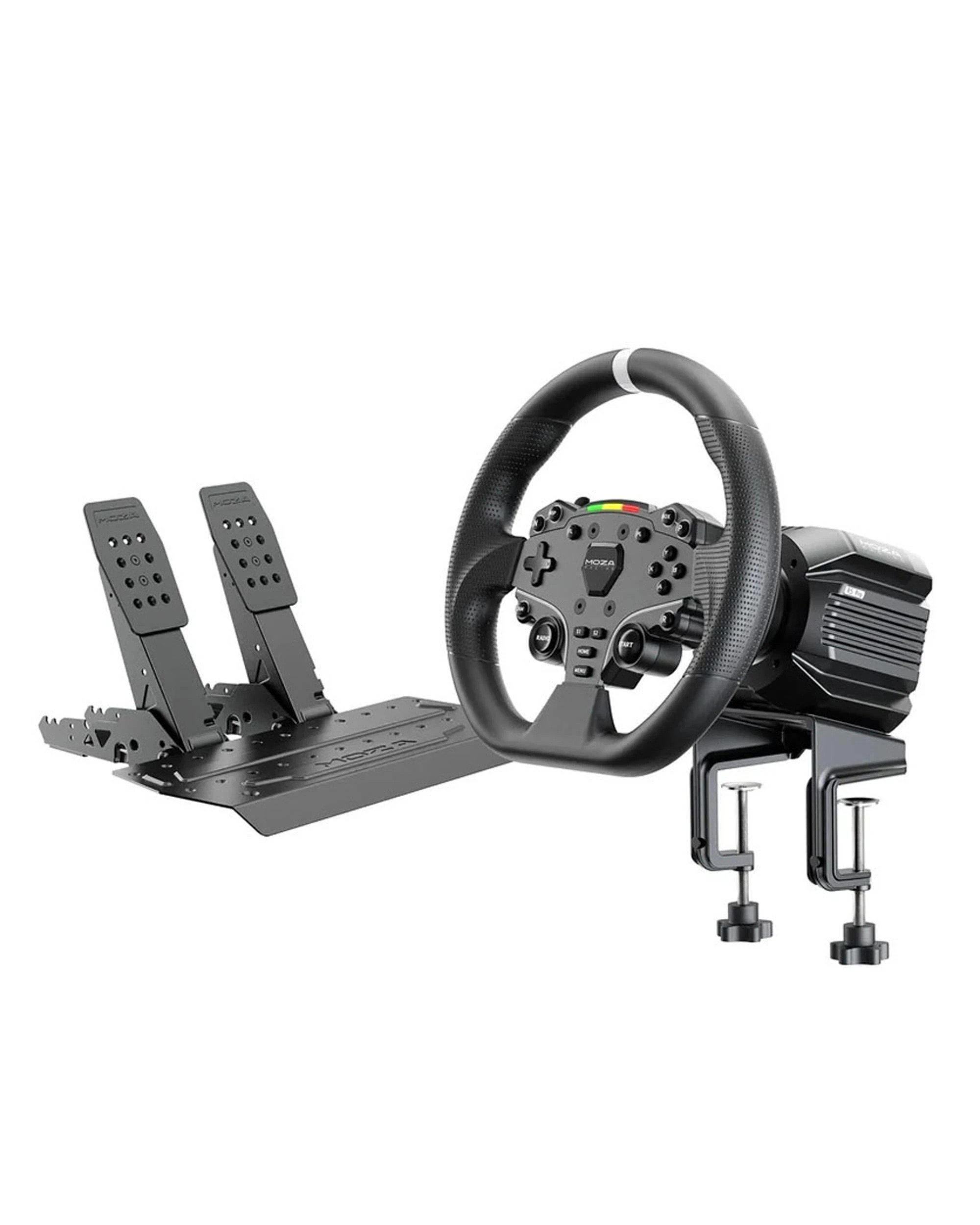

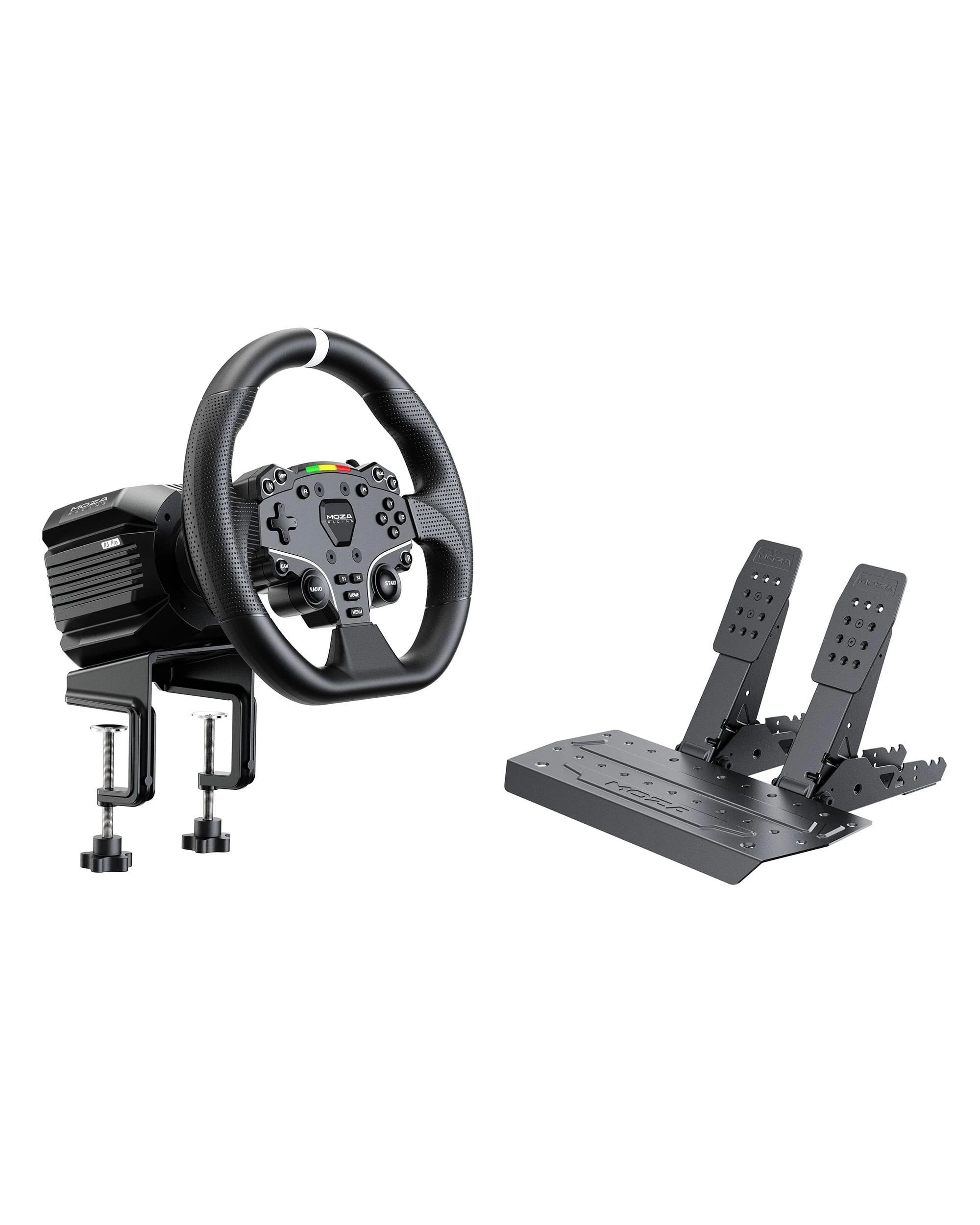

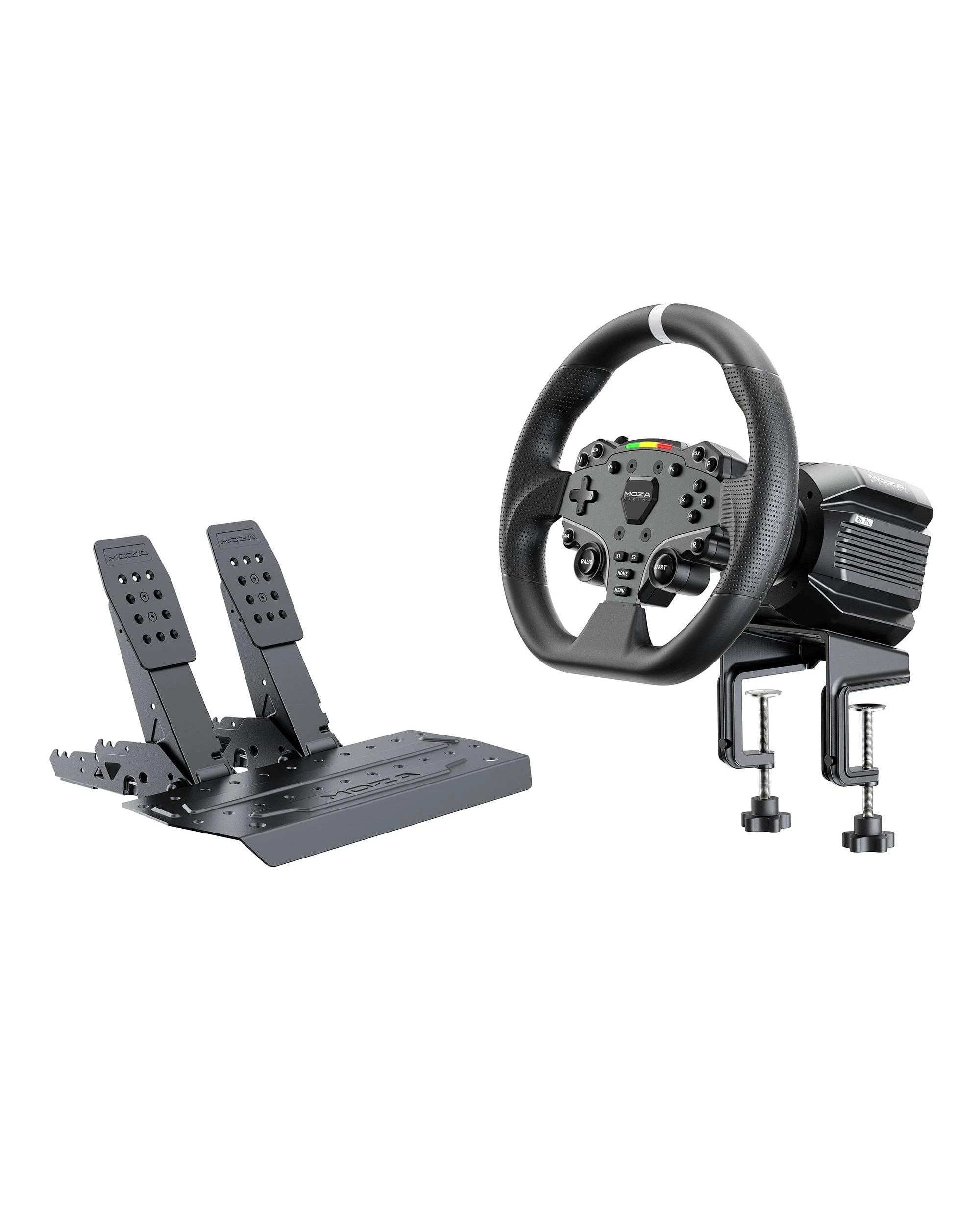

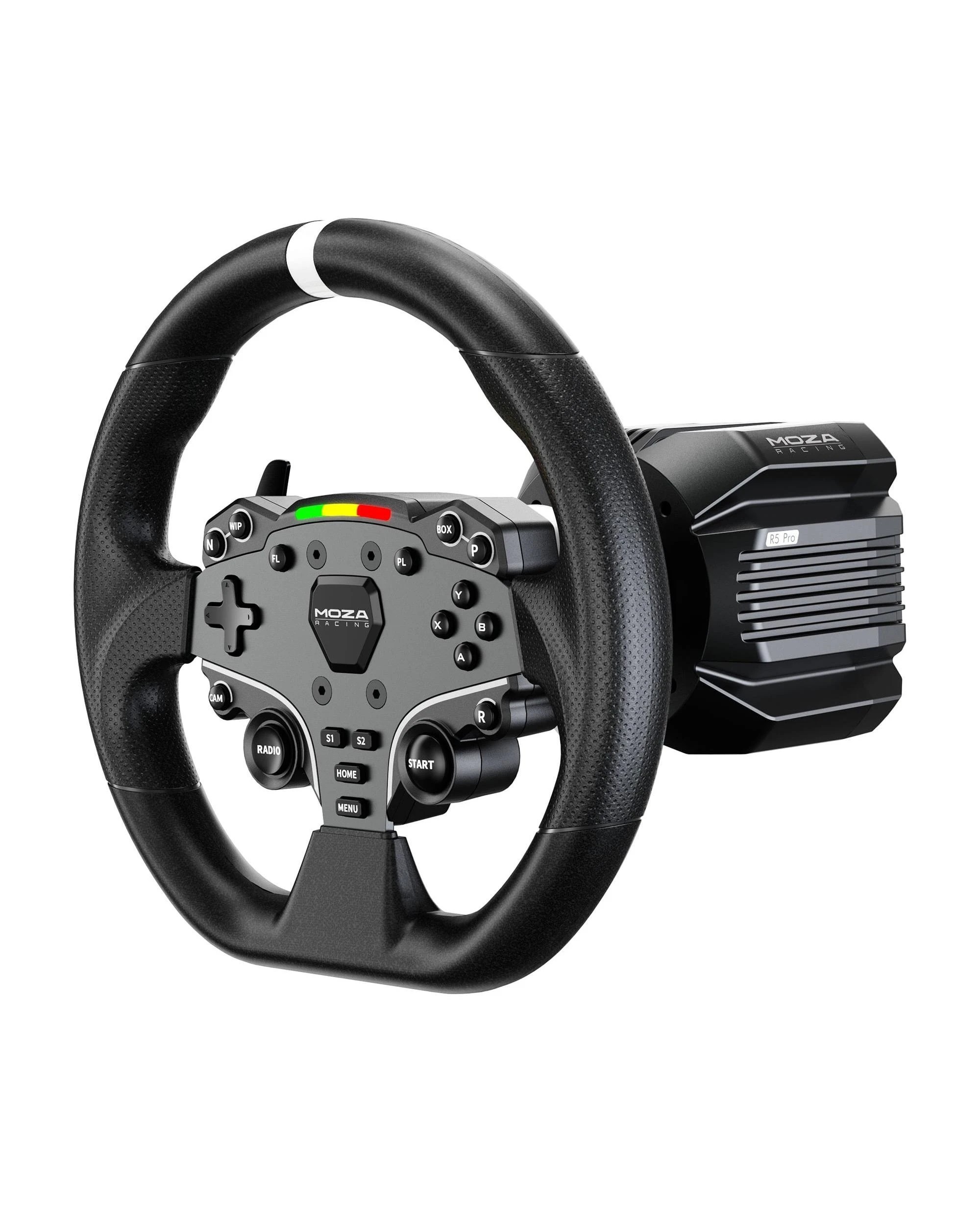

Building on the proven MOZA R5 Bundle, the R5 Pro Bundle elevates the complete direct drive experience with enhanced 6 Nm torque, an ultra-precise 21-bit magnetic encoder, a 600 MHz high-performance CPU, and MOZA NexGen Force Feedback Algorithm 5.0. Paired with the ES Lite steering wheel and SR-P Lite2 two-pedal set, it delivers more detailed road feel, faster response, and smoother torque transitions in a compact, ready-to-race package. Fine-tune your setup through MOZA Pit House or the MOZA Racing App.
Features

Enhanced 6 Nm Direct Drive Torque

The MOZA R5 Pro delivers 6 Nm of constant torque, a 9.1% increase over the previous generation. The upgraded motor platform provides greater performance headroom.

21-Bit High-Resolution Magnetic Encoder

The MOZA R5 Pro is equipped with a 21-bit high-resolution magnetic encoder with over 2 million points of resolution, delivering 64 times the precision of the previous generation.

600 MHz High-Performance Processor

Powered by the same 600 MHz high-performance processor used in flagship MOZA wheelbases such as the R25 and R21 Ultra, the R5 Pro delivers more than twice the computing performance of the previous-generation R5.

NexGen Force Feedback Algorithm 4.0

Powered by MOZA's latest NexGen 4.0 force feedback algorithm, the R5 Pro delivers more refined and realistic force feedback with richer road detail, improved dynamic response, and expanded tuning flexibility.

Advanced Force Feedback Customization

The R5 Pro allows users to fine-tune force feedback curves, adjust the force feedback interpolation algorithm for smoother and more detailed road feel, and independently tune effects such as damping, friction, and spring force to suit different racing styles and driving scenarios.

Intelligent Temperature Control

Featuring an upgraded intelligent temperature control system, the R5 Pro delivers lower operating temperatures, more consistent force feedback, and stable performance under demanding driving conditions. Real-time motor temperature monitoring further ensures reliability during extended racing sessions.

Multiple Mounting Options

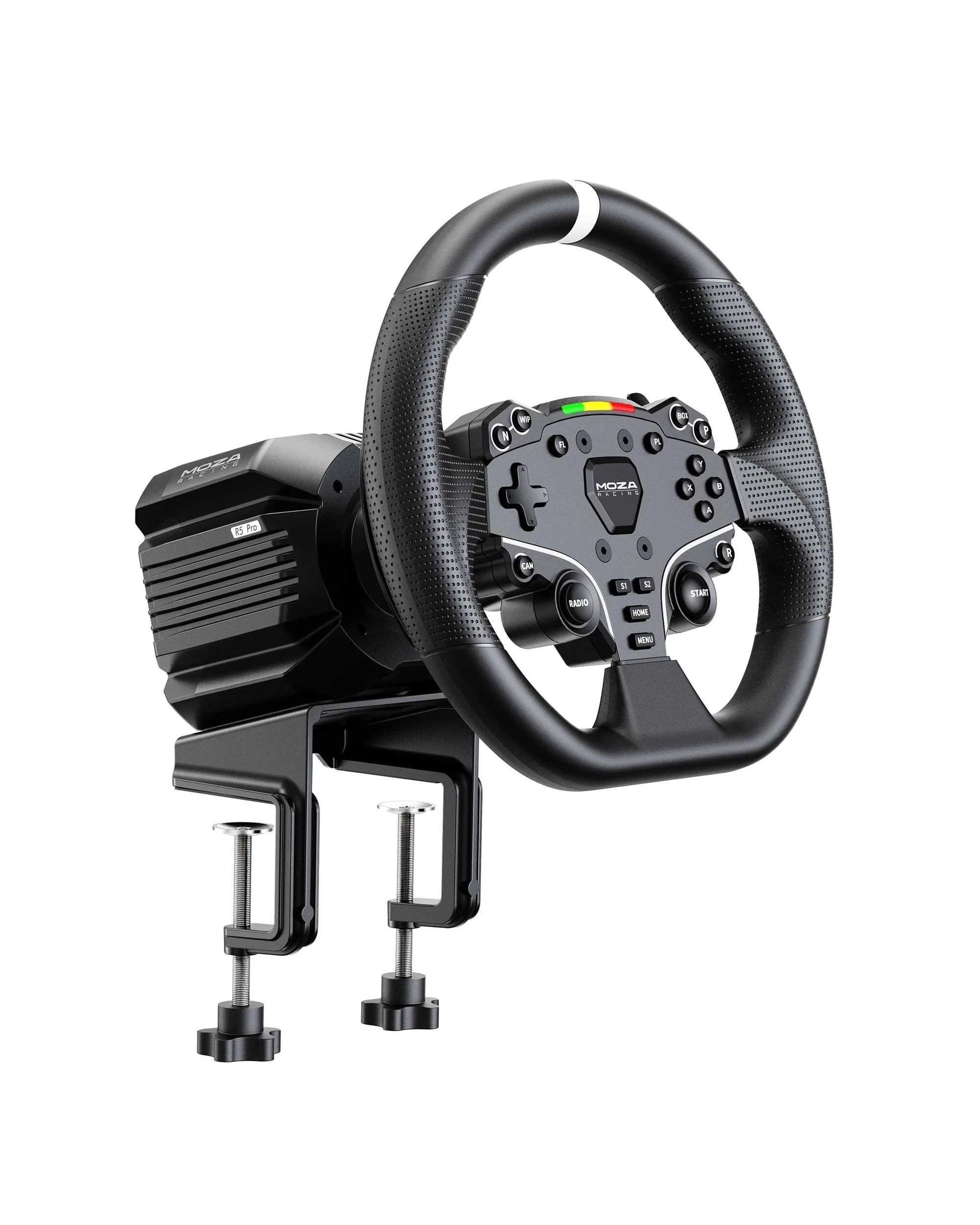

Supporting desk clamp, bottom-mount, and front-mount installation methods, the R5 Pro is designed for compatibility across a wide range rigs and desk setups.

High-Strength Die-Cast Aluminium Construction

Constructed from high-strength die-cast aluminium alloy, the R5 Pro delivers exceptional rigidity and durability in a compact and lightweight design.

Integrated Ecosystem Connectivity

Integrated ecosystem ports allow direct connection of compatible MOZA peripherals including pedals, dashboards, shifters, handbrakes, and emergency stop switches, reducing cable clutter and minimizing USB port usage on the PC.

Soft-Touch Rubber Grips

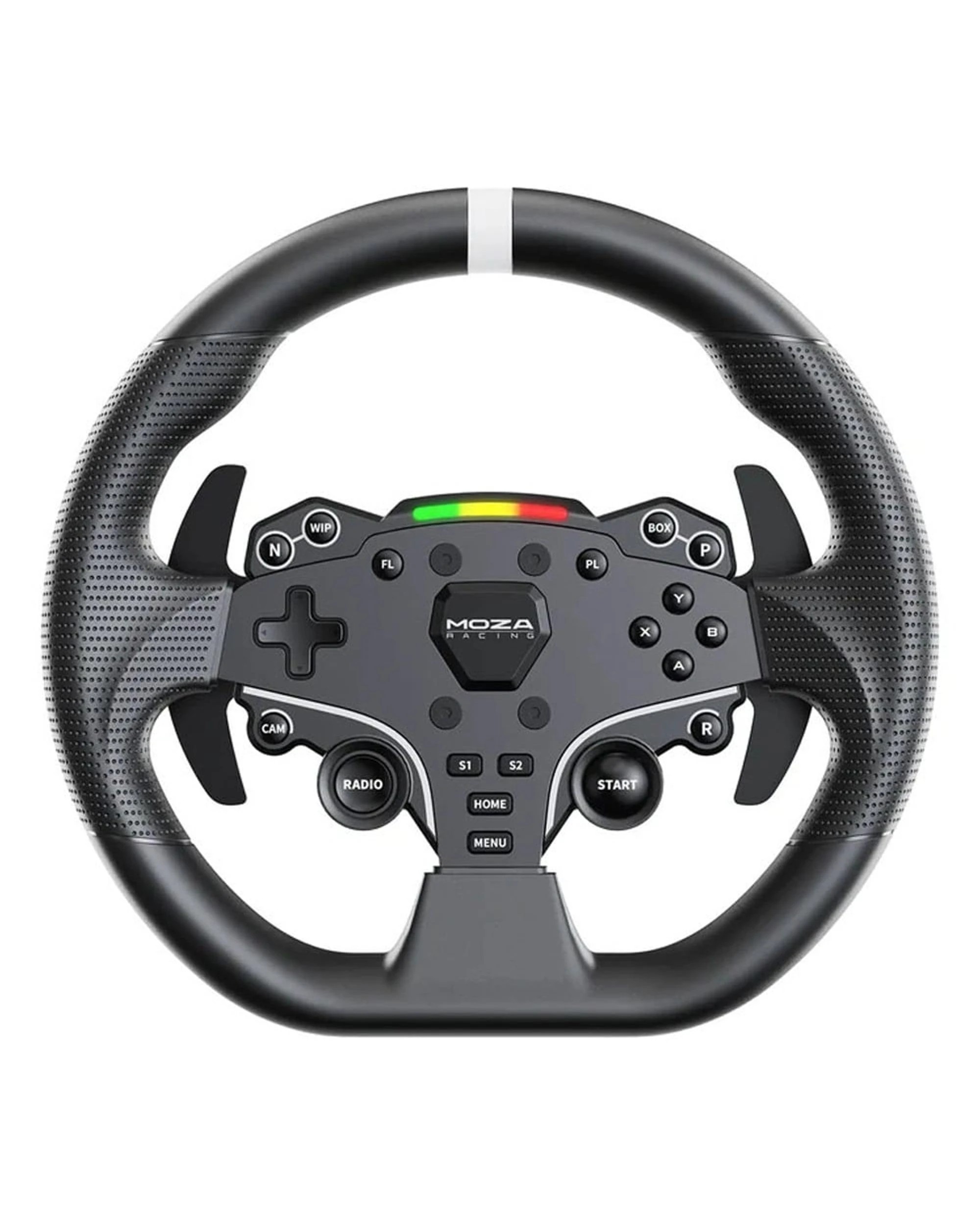

Wrapped in soft-touch rubber with textured anti-slip patterns, the ES Lite wheel delivers a comfortable and secure grip.

22 Programmable Inputs

Featuring 22 programmable inputs, the ES Lite wheel delivers extensive control functionality.

Sequential RPM Indicator Lights

Featuring integrated sequential RPM indicator lights with customizable shift timing.

Ready for Every Racing Style

With interchangeable wheel mod options, including 12-inch round and 280 mm formula-style wheel mods, the ES Lite can be configured for road racing, drifting, rallying, and formula racing, offering multiple driving experiences from a single wheel.

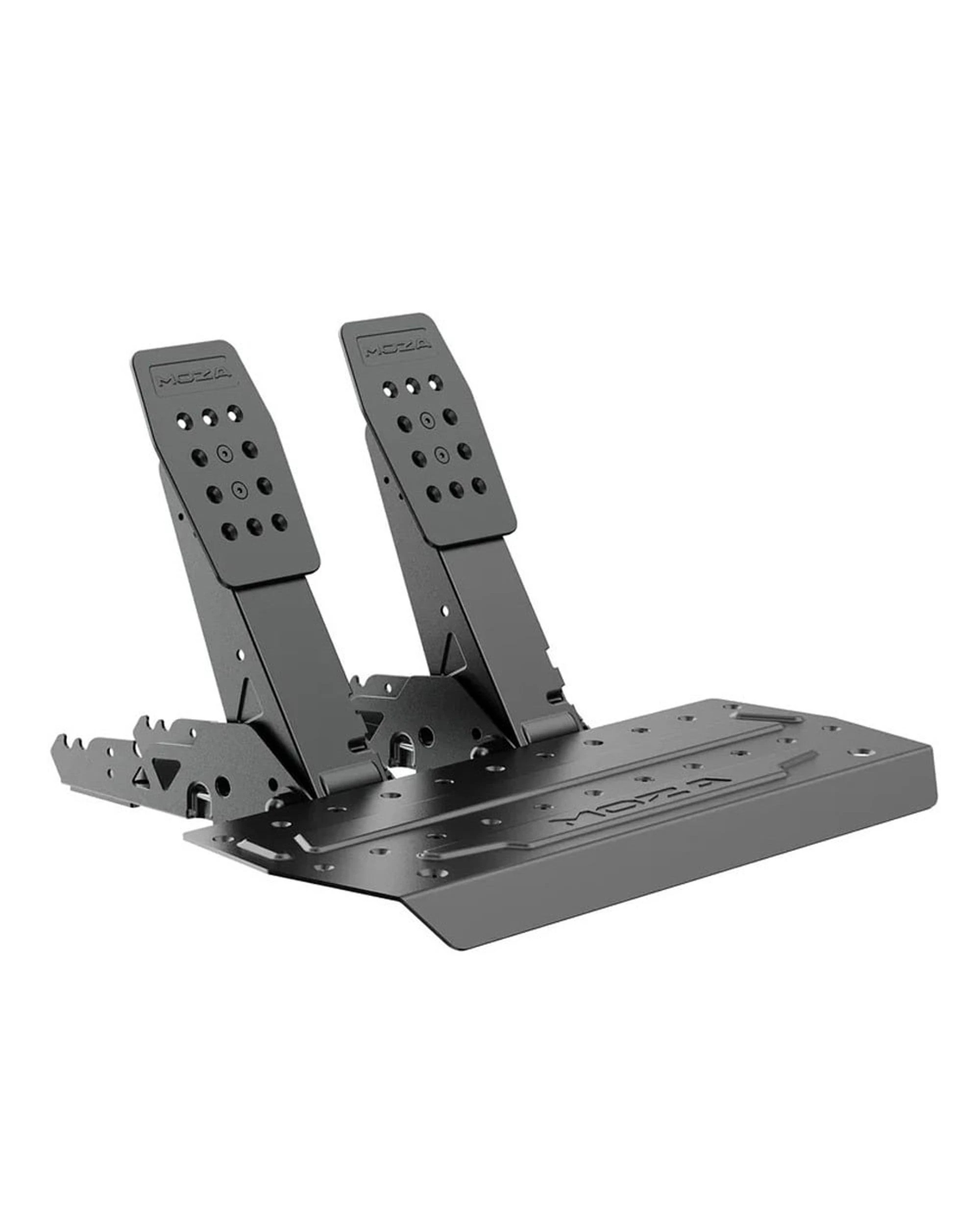

High-strength Steel Construction

The SR-P Lite2 pedals are engineered to withstand heavy braking forces while maintaining exceptional durability and structural rigidity.

High-precision Hall sensor

Featuring high-precision Hall sensors and a contactless design.

Adjustable Pedal Layout

The SR-P Lite2 pedals allow users to fine-tune pedal placement with up to ±15 mm of lateral adjustment and 36 mm of height adjustment.

MOZA Pit House Software

Powered by MOZA Pit House, the R5 Pro Bundle offers extensive customization options, including force feedback tuning, pedal output curves, dead zone adjustment, and real-time hardware monitoring, allowing users to tailor the driving experience to their preferences.

Extensive Pedal Upgrade Options

For drivers seeking a more realistic and personalized pedal feel, a range of optional upgrade kits is available

Specifications

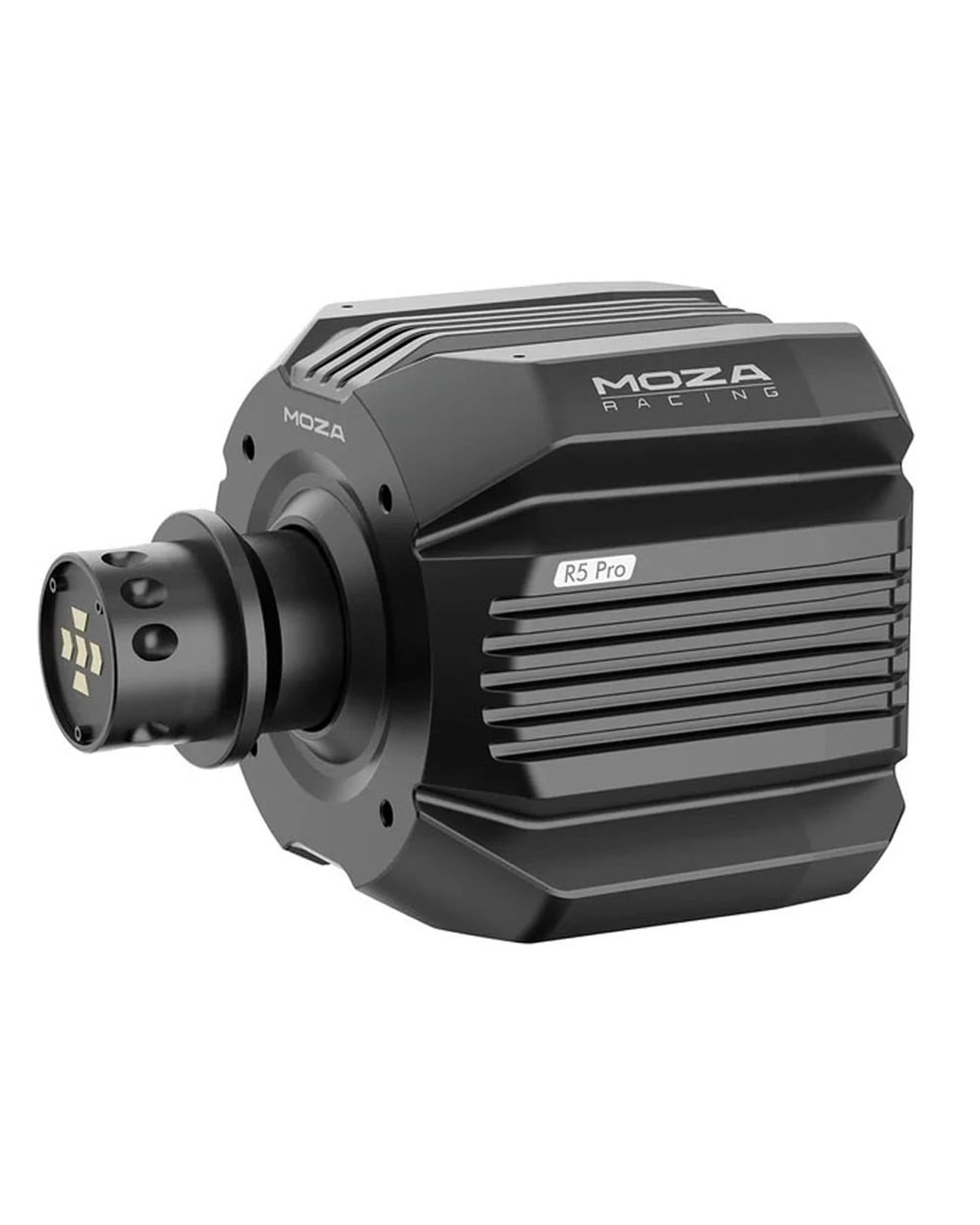

R5 Pro Wheelbase

• FFB Drive System - Direct Drive
• Max Steering Angle - 90~2700°
• Housing Material - Aluminium alloy
• Colour - Black
• Peak Torque - 6Nm
• Peak Power - 100W
• Input Voltage - 110V~220V AC->12V DC
• Weight - 2.9kg
• Encoder Resolution - 21bit
• USB Refresh Rate - 1000Hz
• App Functions - Supported
• Quick Release - Supported
• Connection Ports - Power, USB, Pedal, Dash, Shifter, Handbrake, E-stop
• Accessories - User manual, power adapter, cable, tool kit
• Mounting Options - Bottom, front, and desktop mounting
• Desk Clamp - Included
• Online Firmware Update - Supported

ES Lite Steering Wheel

• Grip Material - TPE
• Frame Material - Aluminium alloy
• Shift Paddles Material - Aluminium alloy
• Size - 280mm
• Buttons - 22
• Rev Lights - 10 top-mounted RGB LEDs
• Intelligent Telemetry - Supported
• Fully Adjustable RPM LEDs through MOZA Pit House - Supported
• Release Method - All-aluminium quick release

SRP2 Lite Pedals

• Pedal Face Material - High-strength Steel
• Pedal Base Material - High-strength Steel
• Sensor - Contactless Hall Sensor
• Pedal Left/Right Adjustment Range - 15mm
• Pedal Height Adjustment Range - 36mm
• Pedal Curve Adjustment - Supported
• Real-time Pedal Output Display - Supported

Item Specifics

Barcode: 6973137271497
Manufacturer: Moza Racing
Weight (Packaged): 7.00 kg

Dimensions: 31.00cm x 29.20cm x 21.00cm
