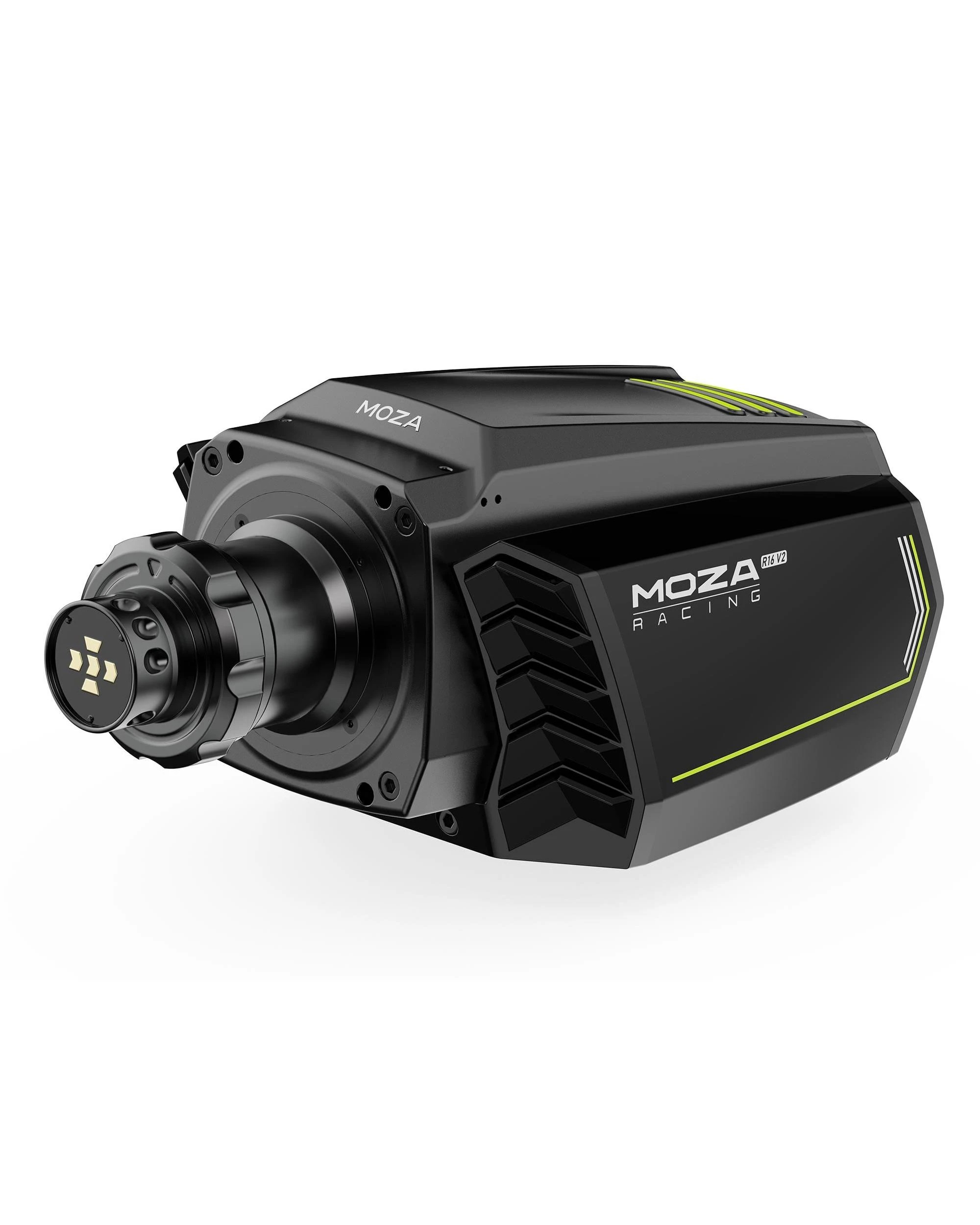

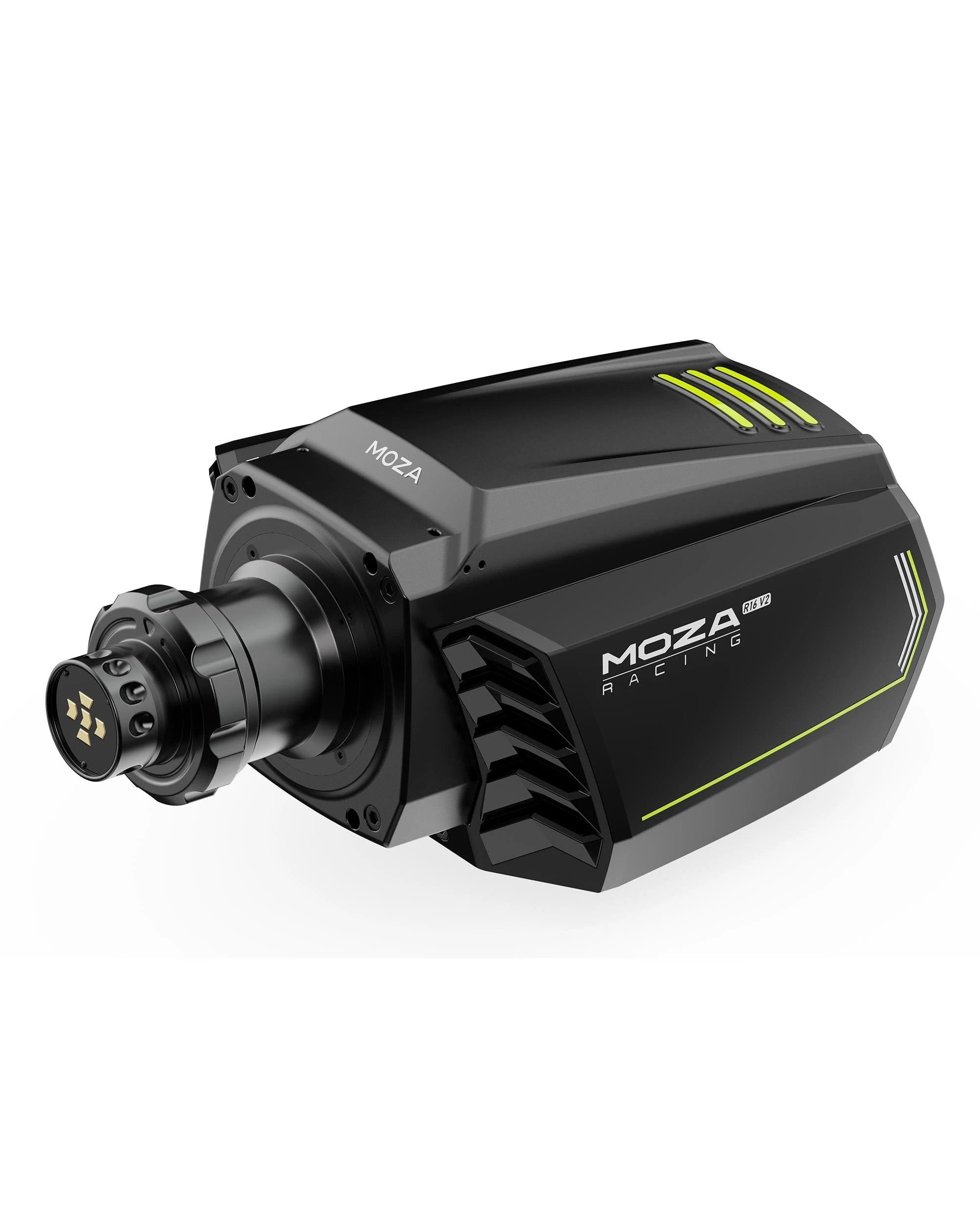

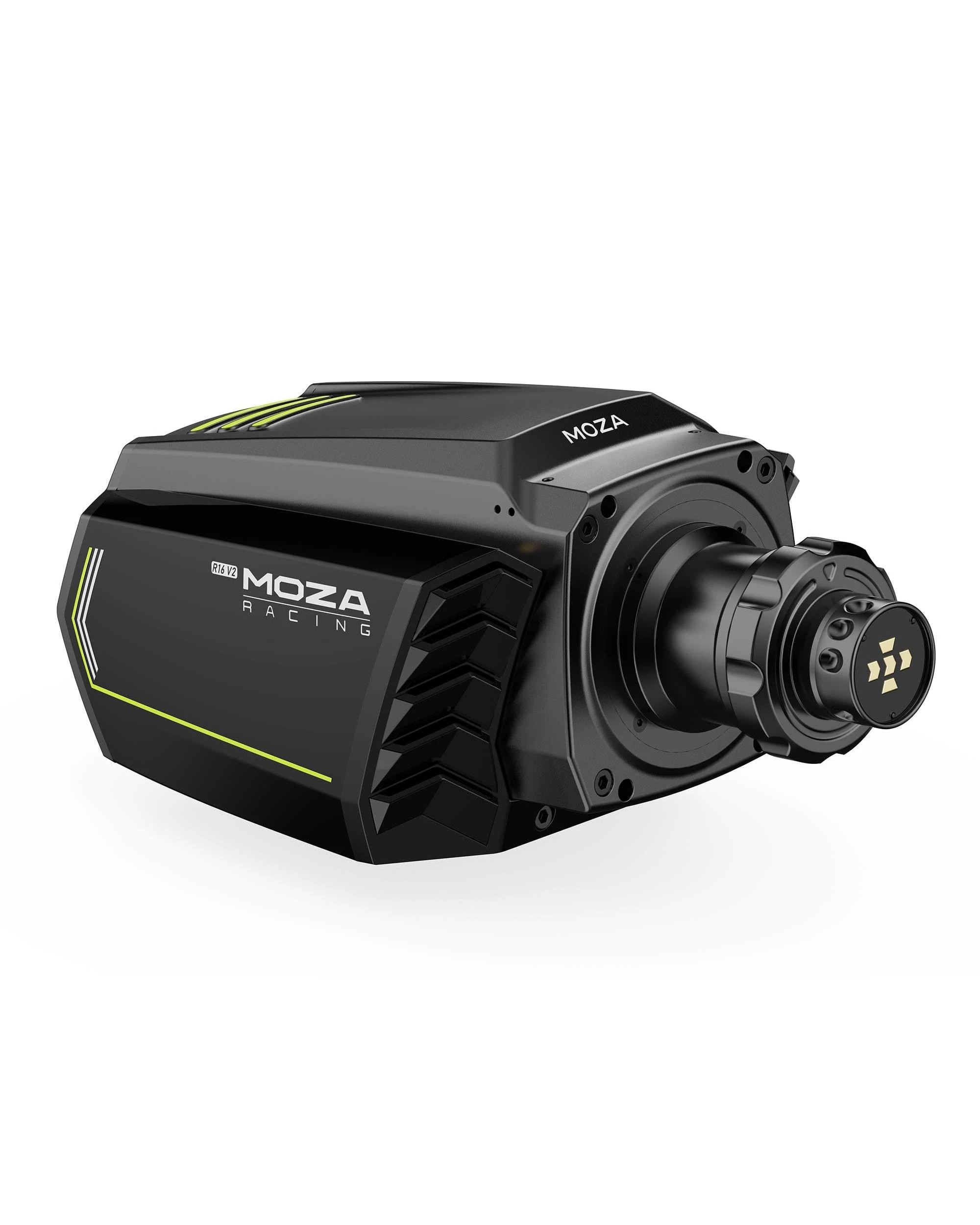

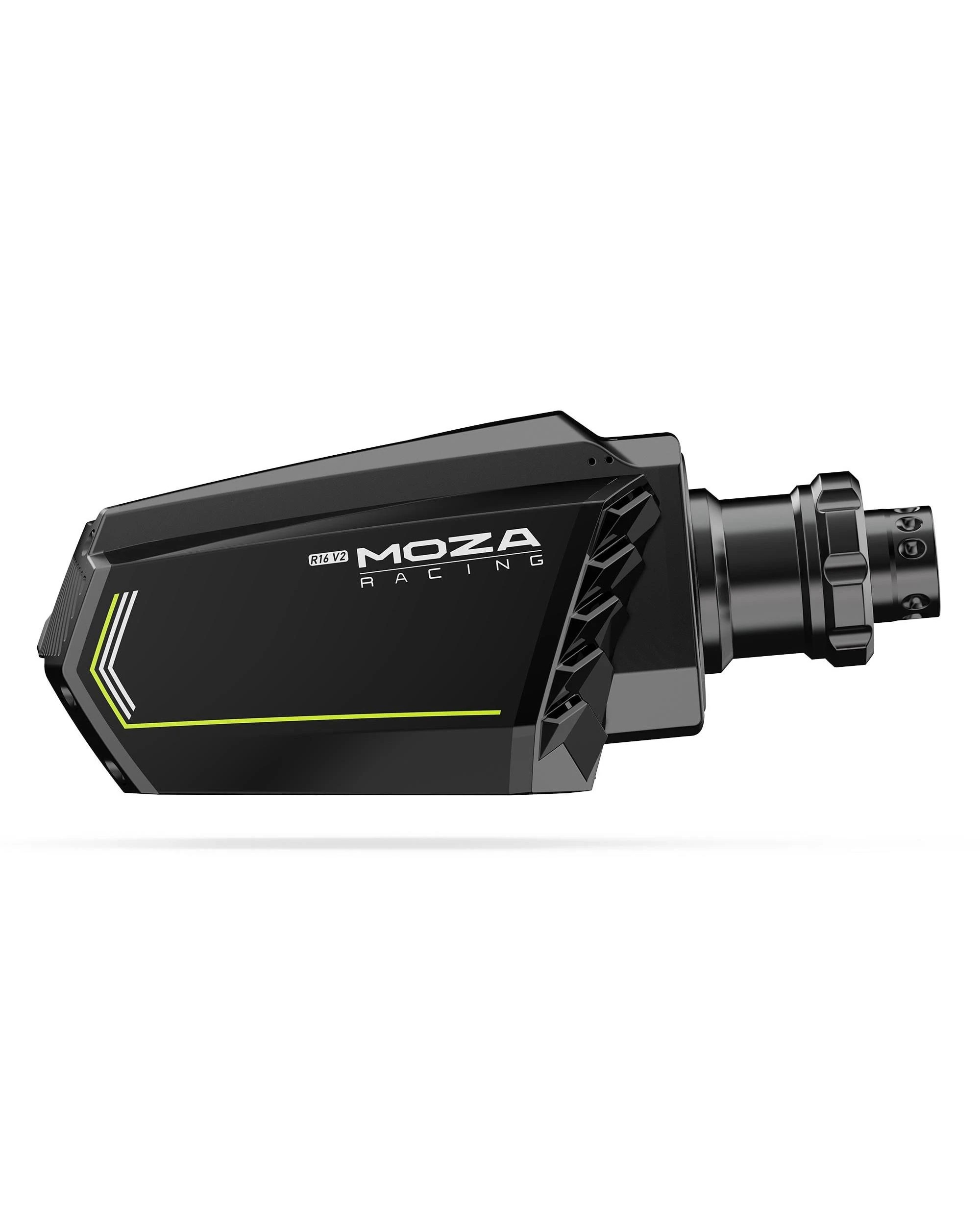

The MOZA R16 sim racing wheelbase is a formidable powerhouse that combines performance and style. With a peak torque of 16 Nm, it delivers impressive force feedback for an immersive racing experience. The all-aluminium alloy body and a sleek supercar-inspired design ensure great reliability without compromising on style. With hands-off protection and ultra-low static torque, you can focus on the race without distractions. Featuring 262,144 points of resolution, every subtle movement is faithfully captured. Take control with the MOZA Pit House App Control, allowing you to fine-tune settings with ease and jump into the race with its one-click launching features. The V2 version supports iRacing 360Hz mode and features a 18-bit magnetic encoder
Features

16Nm of Direct Drive Power

With a huge 16Nm of torque, the R16 provides an impressive torque range to give the kind of accurate immersion that only direct drive wheels can provide. From GT to F1, feel every moment.

Sleek, Modern Design

Inspired by current supercar trends, the R16 sports a robust design and two-tone paint finish.

Sturdy All-aluminium Body

The R16 is made of aluminium alloy, giving the base a rock-solid feel and weight.

Ultra Low Static Torque

Feel everything through an optimized motor design, offering practically zero torque ripple, notching or cogging. Combined with powerful torque delivery, hard braking, curbs, and drifts are clearer and stronger than ever before.

Superior Temperature Control

The R16 encoder gives exceptional understanding of the wheel position, allowing for accurate, clear communication when racing.

262,144 Points of Resolution

The R16 encoder incorporates ultra-high precision wheel position monitoring, allowing for accurate and clear feedback when racing.

Next Generation FFB Filtering Algorithm

The R16 DD base is powered by MOZA's latest force feedback filtering algorithm, providing enhanced dynamic feedback that renders oversteer and understeer with greater clarity and richness.

Dual-Mode Communication

The base and the steering wheel are connected via a military-grade wired conductive slip ring with a lifespan of more than 5 million revolutions. Simultaneously, the base communicates wirelessly with the wheel. This distinct patented design delivers exceptional stability and durability, allowing for seamless, infinite high-speed rotation.

Hands-off Protection

This function can effectively avoid the risk of injury and quickly help restore control by detecting that hands are off the wheel. Once activated, it will quickly stop any oscillation and safely centre the wheel.

Speed-dependent Force Feedback Dampening

This function will increase the damping FFB effect as the vehicle speed increases and reduces the dampening as the vehicle speed decreases to accurately mimic a real race car, resulting in greater high-speed stability and low-speed manoeuvrability.

Force Feedback Equalizer

MOZA's FFB equalizer allows full customization and fine-tuning of the FFB effects spectrum for a perfect setup in any conditions.

One-click Launching

Save your game configuration in the MOZA Pit House launcher to quickly launch into a game from within the Pit House.

Cloud-based Mobile App Control

Enjoy on-the-fly changes using the MOZA app! Force feedback, pedal settings and more can all be changed in real-time, meaning no more reaching for the keyboard and mouse.

Multiple Connection Ports

With the ability to directly connect MOZA pedals, shifter, handbrake, and digital dash to the base, you not only conserve USB ports on your PC but also unlock the potential for simultaneous use of multiple devices.

Front Mount Compatibility

Featuring four front-facing holes designed for MOZA's front mounting bracket, this versatile design supports both front and side mounting options, optimizing legroom and catering to formula-style seating preferences.

Specifications

• Drive Type: Direct Drive
• Communication Method: Wireless
• Max Wheel Rotation: Limitless
• Housing Material: Aviation Grade Aluminium Alloy
• Housing Colour: Black
• Peak Torque: 16 Nm
• Peak Power: 360W
• Input voltage: 110V~220V AC —>36V DC
• USB Refresh Rate: 1000Hz
• V-shaped Struts: -
• Encoder Resolution: 262144ppr (18-bits)
• Indicator: YES
• App Functions: Supported
• Quick Release: Supported
• Connection Ports: Power, DC Input, E-stop, USB (Pogo pins for RM dash)
• Accessories: User manual, Warranty card, Power supply, USB cable, Toolkit
• Mounting Method: Bottom mount
• Side Mount Option: With an optional side/front mount bracket
• Desk Clamp: Optional
• Emergency Stop Switch: Optional
• Online Firmware Upgrade: Applicable
• Firmware Update: Applicable
• Dimension (L x W x H) （mm）: 327*170*130
• Weight: 8.9kg

Item Specifics

Barcode: 6973137270162
Manufacturer: Moza Racing
Weight (Packaged): 8.90 kg

Dimensions:

• 32.70cm x 17.00cm x 13.00cm
