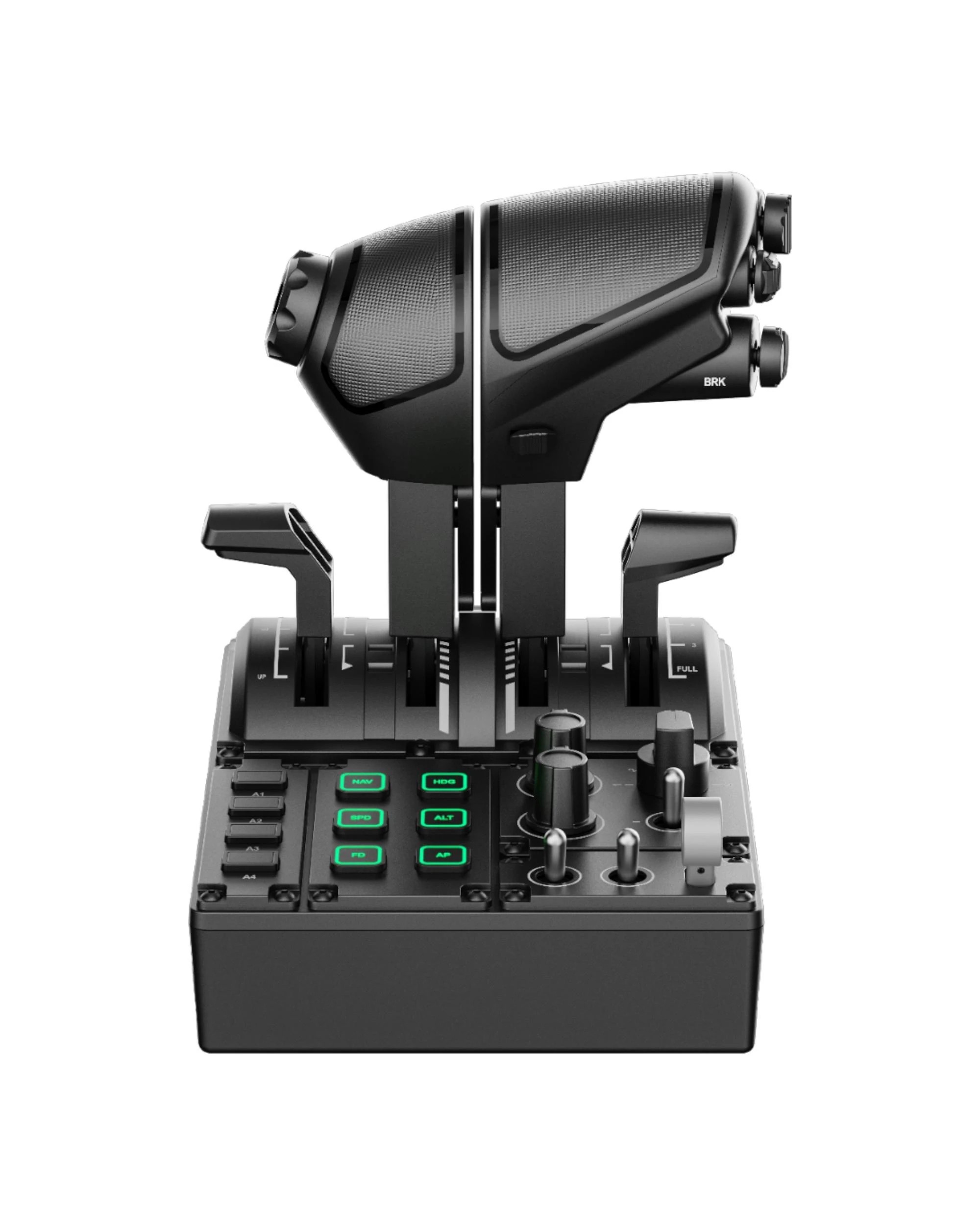

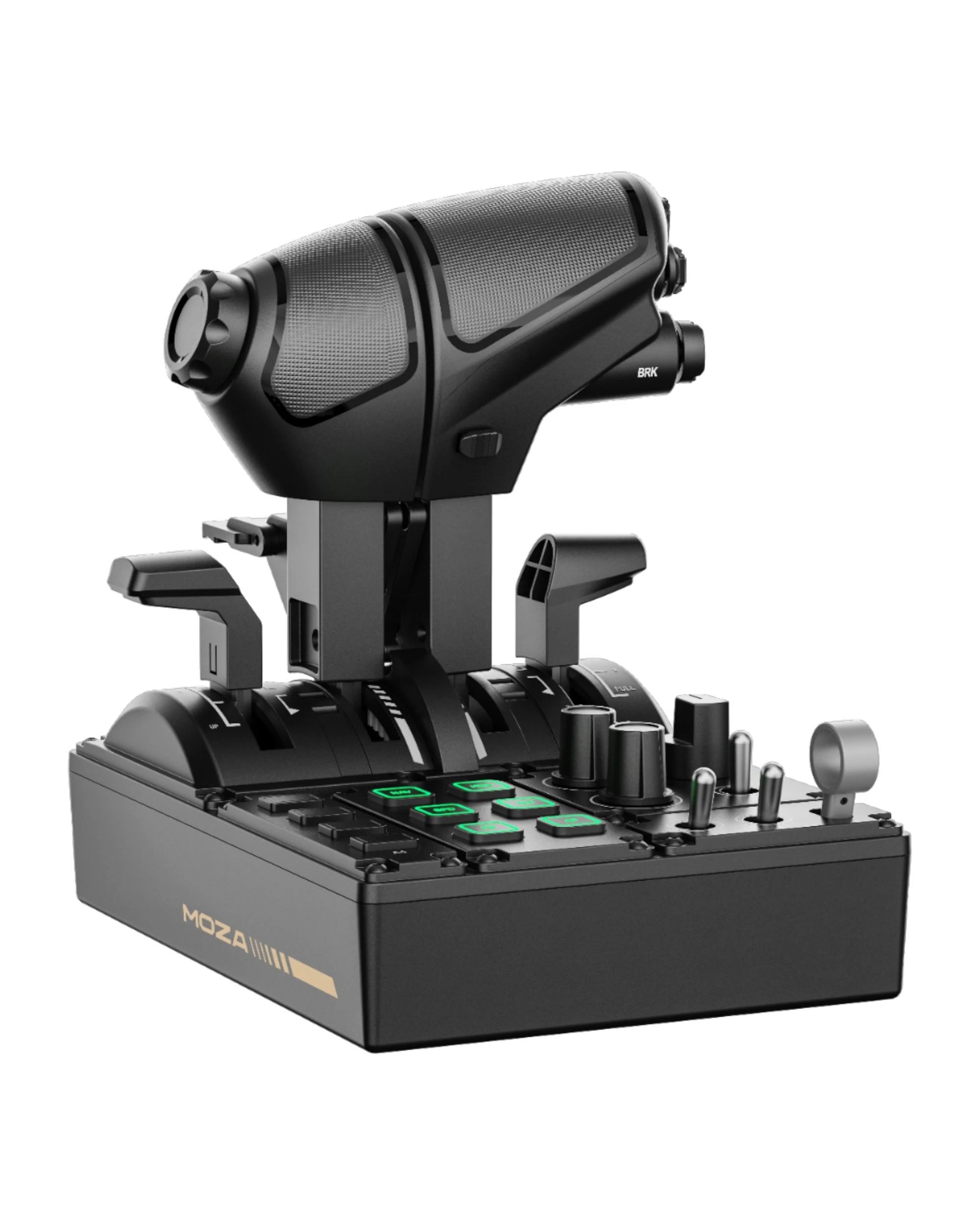

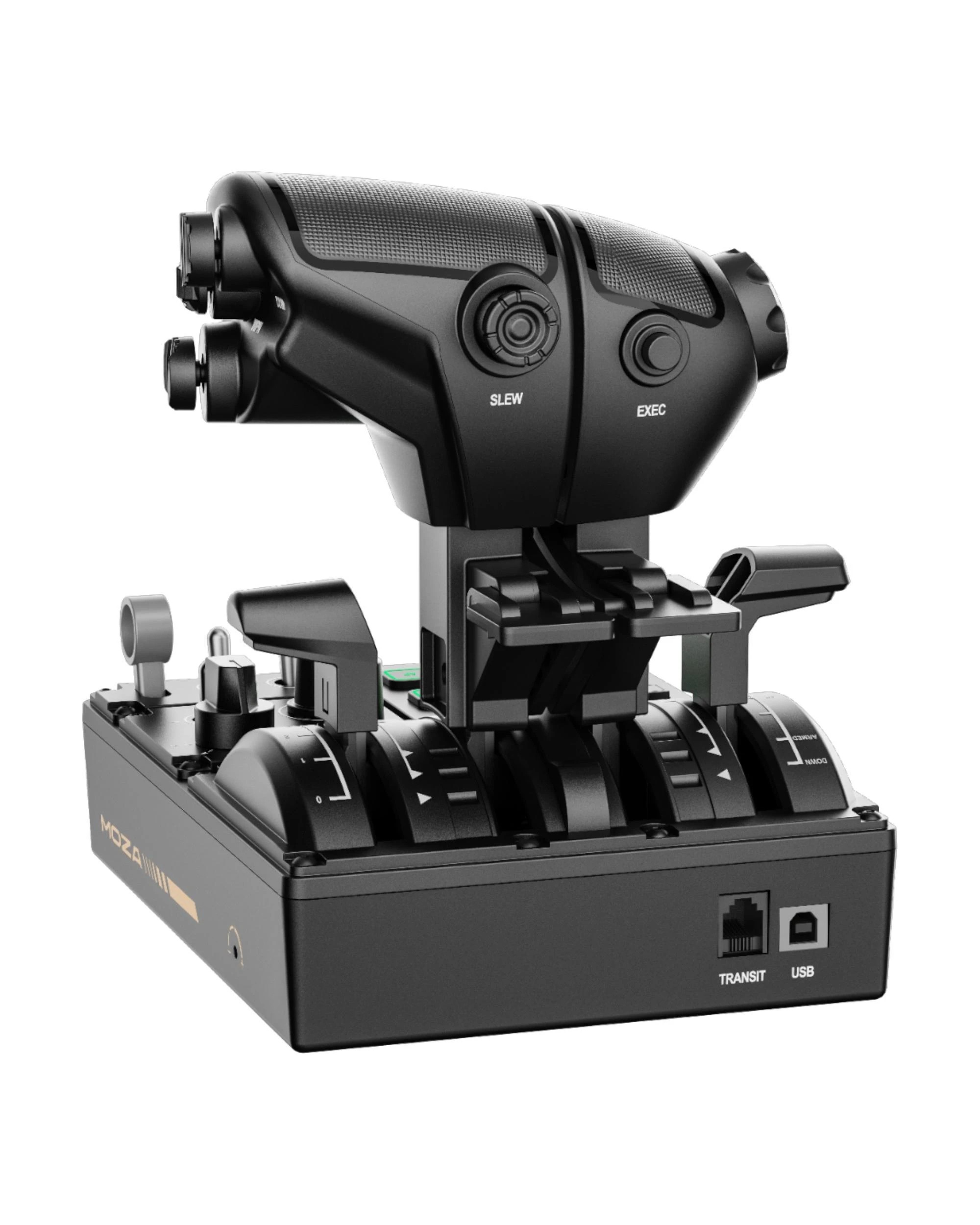

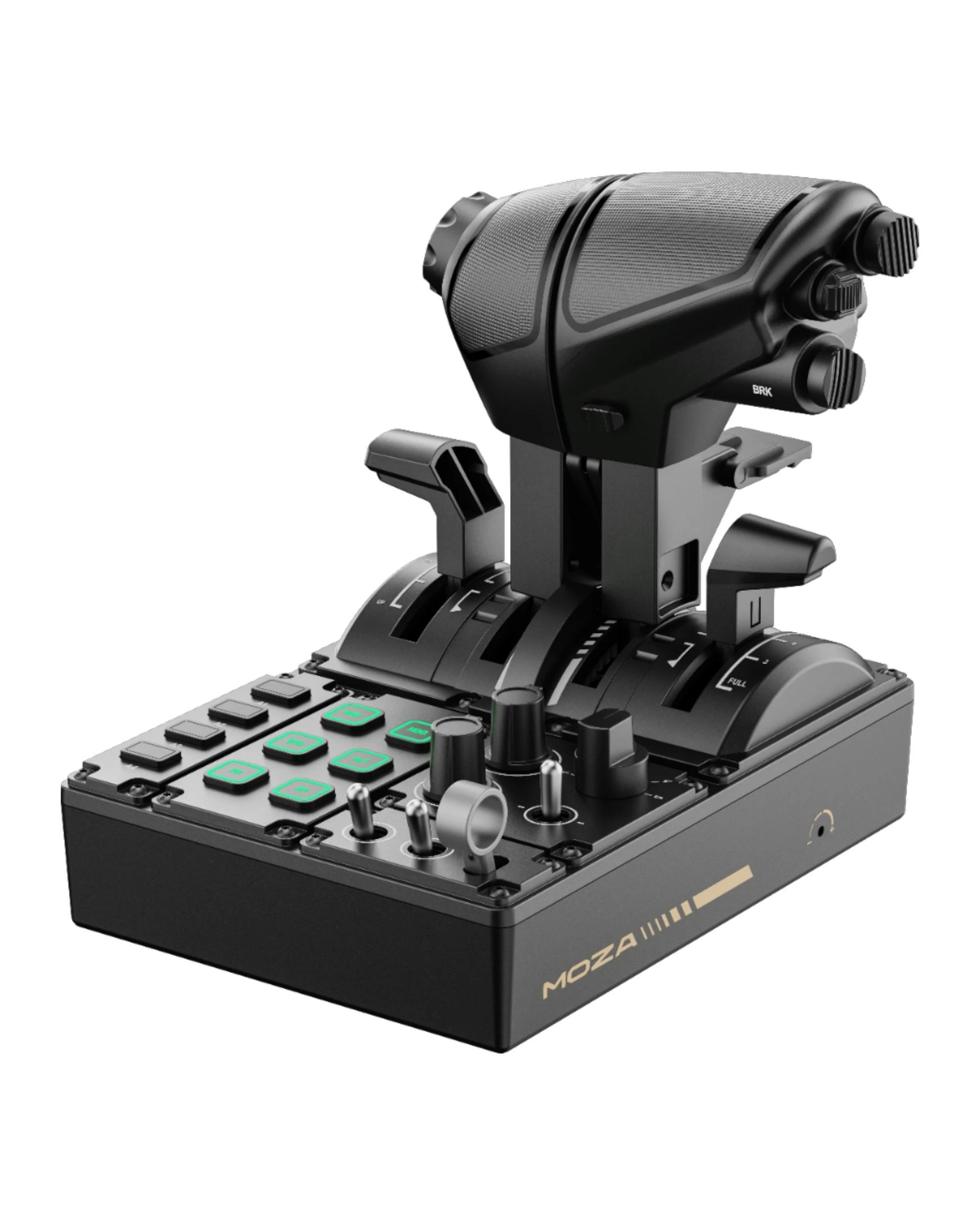

The MOZA MTQ Throttle Quadrant offers a versatile, high-quality throttle control experience tailored to meet the needs of diverse flight sim users.
Features
Modular Throttle Levers System



Featuring adjustable damping for each axis with ultra-smooth motion, the modular lever system allows users to easily switch between different throttle lever styles. Each lever connects via a custom sliding rail mechanism that delivers authentic detent feedback, accurately replicating the feel of fighter jet, Boeing-style, and Airbus-style throttles.



Realistic Design



Features three distinct throttle levers, each ergonomically designed and inspired by real-world aviation. Their intuitive hand positioning and button layouts mirror common cockpit configurations for maximum immersion.



TQF Throttle Levers-Fighter Jet Style



A fighter-style throttle grip designed for HOTAS setups, with ergonomically placed buttons, anti-slip texture, and a built-in detent mechanism that accurately replicates afterburner locks and engine start detents.



TQA Throttle Levers - Airbus Style



Inspired by the Airbus A3X series, these levers recreate the distinctive detent structure and reverse thrust behaviour. Its clearly defined detents provide confident tactile feedback, allowing for precise throttle operation without needing visual confirmation.



TQB Throttle Levers - Boeing Style



Inspired by the Boeing B7X series, these levers provide an extended forward range for precise thrust control. It features an authentic lift-to-arm reverse thrust lever and a TO/GA-style button for realistic take-off and go-around procedures.



Versatile Control Panel



Designed for intuitive control, the MOZA MTQ features a well-organized layout with 10 multifunction buttons, 3 rotary knobs, 3 toggle switches, and a dedicated landing gear lever. Each control is thoughtfully placed within ergonomic zones for seamless access. Enhance your setup with six RGB-lit buttons, offering 16.7 million colours fully customizable through software.



Throttle Axis



Swap throttle levers to achieve distinct detent styles.



A Precision Quad-axis Control with Detents



Includes four independent axes, with dedicated detents on the speedbrake and flap axes. The speedbrake axis features a virtual button detent for arming actions and can also be reversed for liftover-style movement. The flap axis includes four detents to support accurate mechanical positioning.



Seamless Integration with MOZA Ecosystem



Direct connection to MOZA flight bases via RJ11 cable, saving USB ports and ensuring easy integration into the broader MOZA hardware system.



Advanced Software Configuration



Through the MOZA Cockpit software, users can enable telemetry-based lighting effects and fine-tune a wide range of throttle settings. The intuitive interface makes it easy to achieve personalized configurations with just a few clicks.



Specifications

Dimensions - 216*166*198mmCasing Material - Composite materialsThrottle Grip Material - Composite materialsPhysical Toggle Switches - 17Telemetry Lighting - Supported (no plug-ins required)Platform - PCDesktop Clamp - OptionalDesk Mounting Plate - OptionalIncluded Accessories - Data cable, wrench, user manual

Item Specifics

Barcode: 6973137270926
Manufacturer: Moza Racing
Weight (Packaged): 2.04 kg

Dimensions:

• 36.90cm x 14.00cm x 29.00cm
