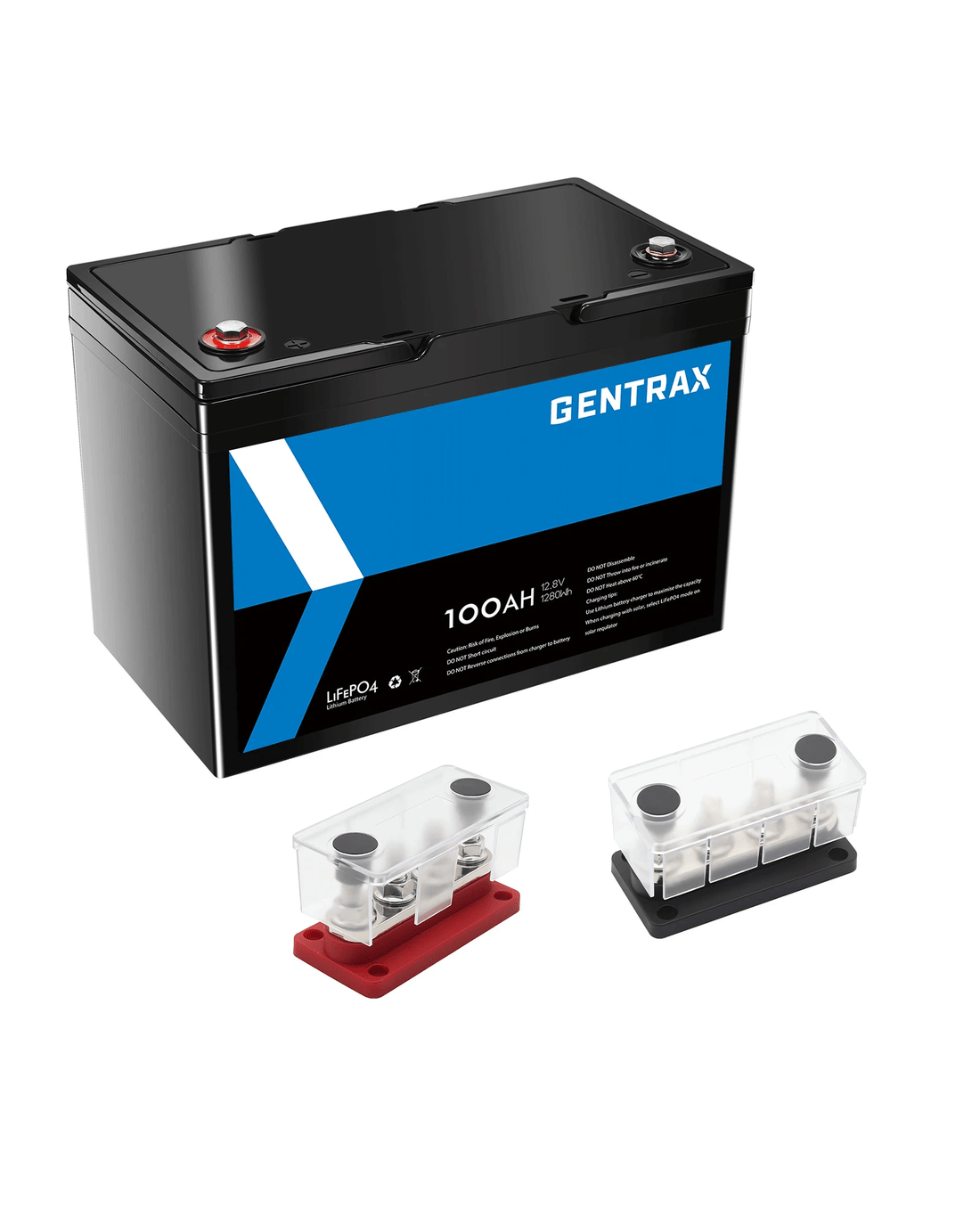

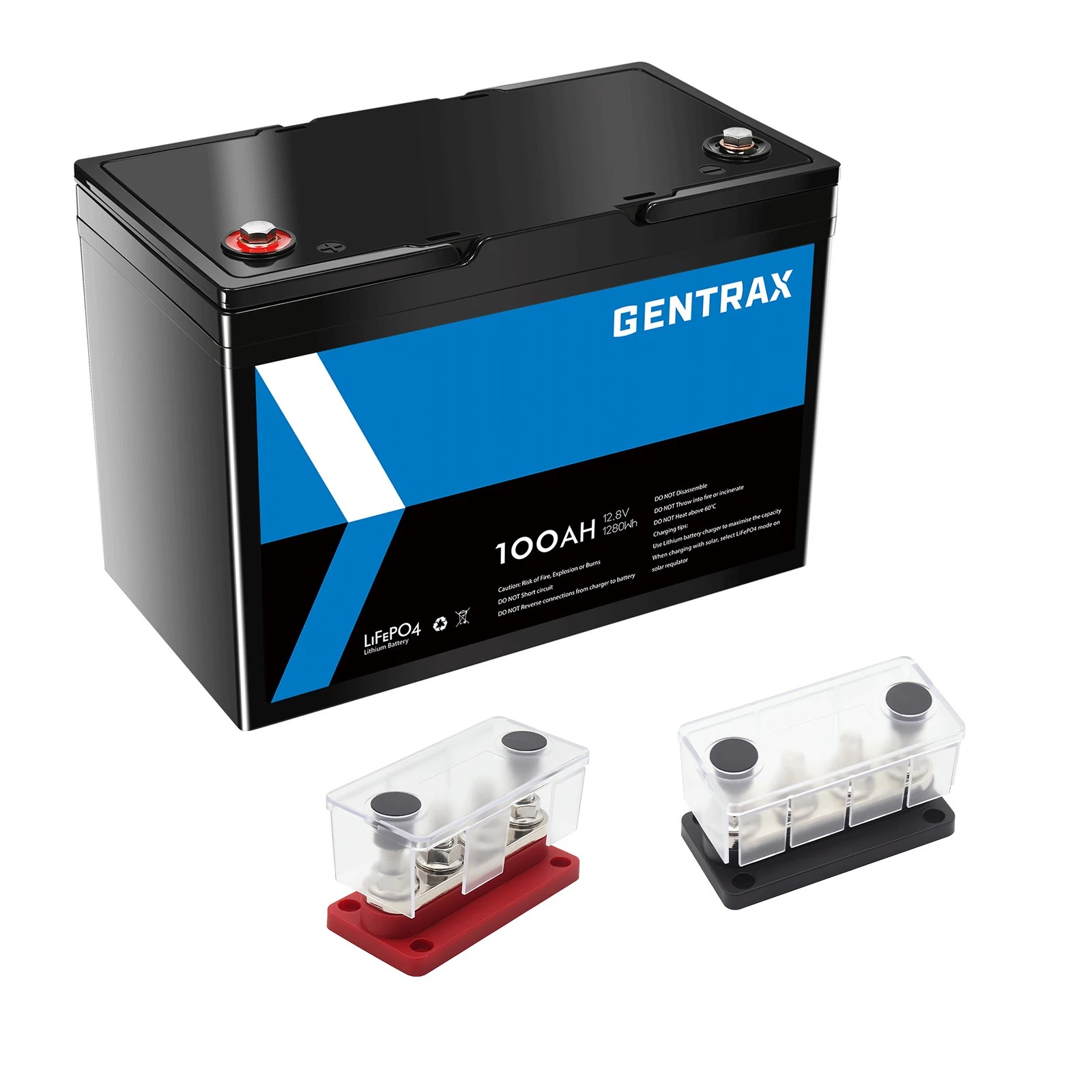

GENTRAX 12V 100Ah Lithium Battery + 4 GANG 300A Bus Bar

$419

(0)

SKU : P_110247627

Online only
Sold and shipped by Outdoor Brands Direct

Description

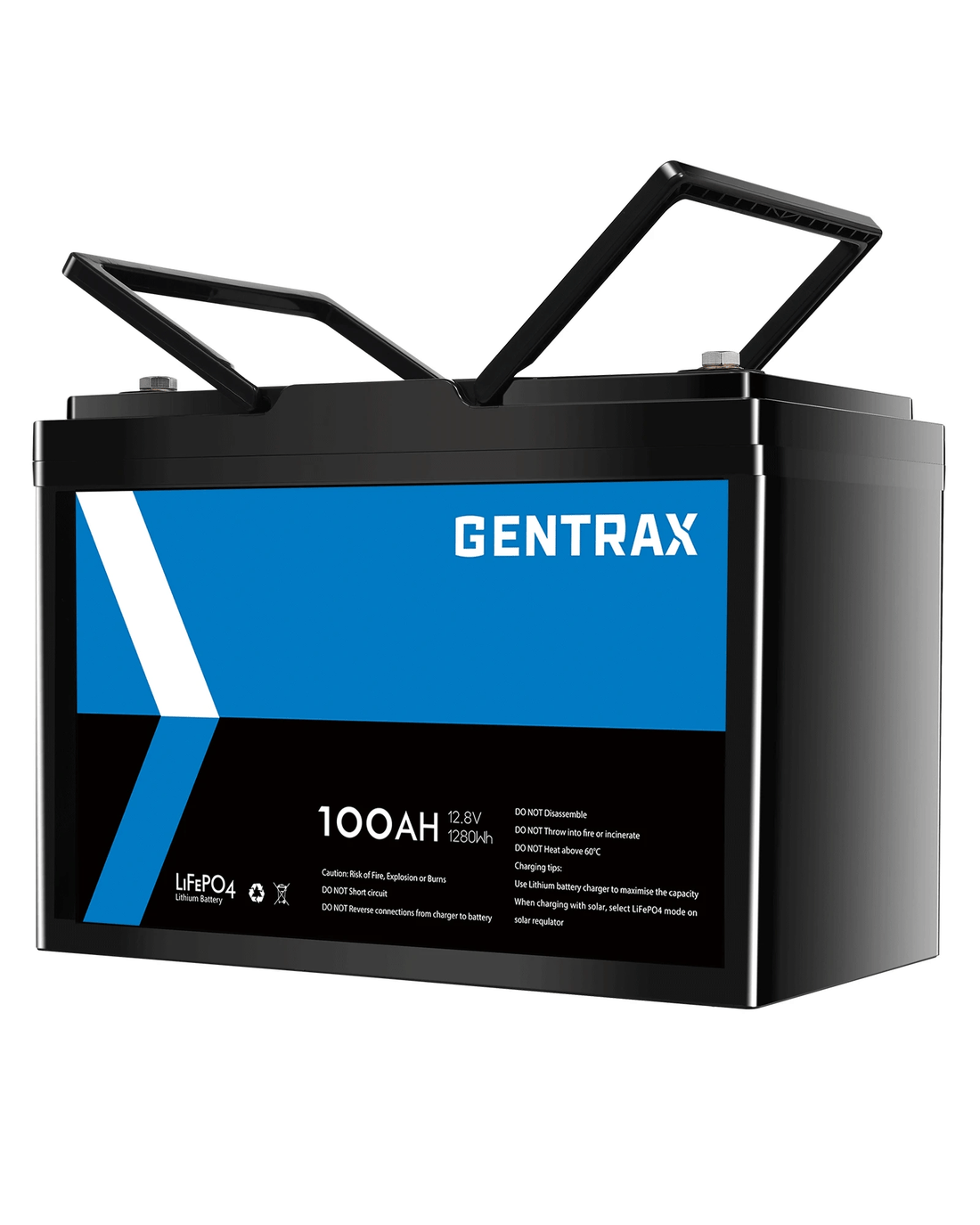

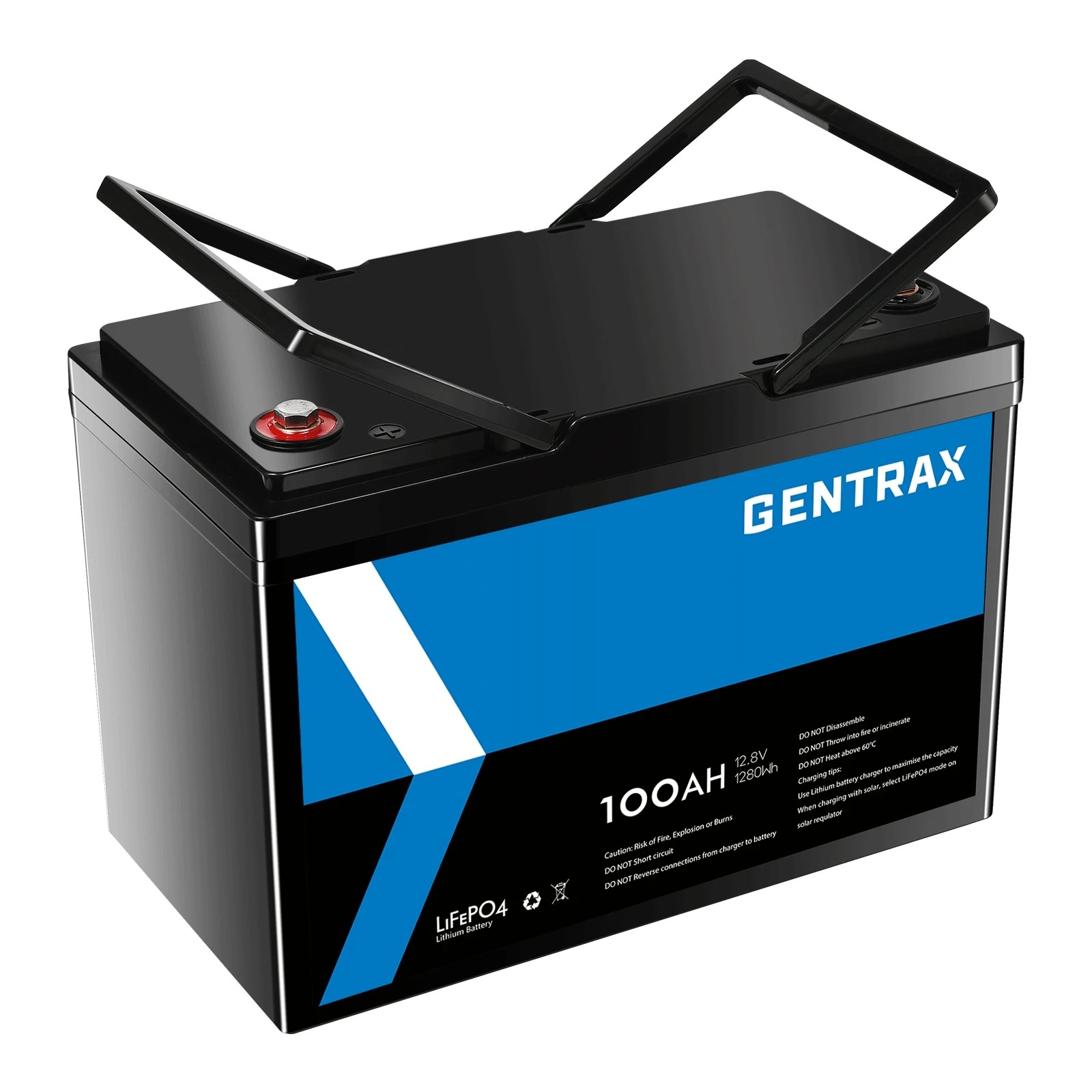

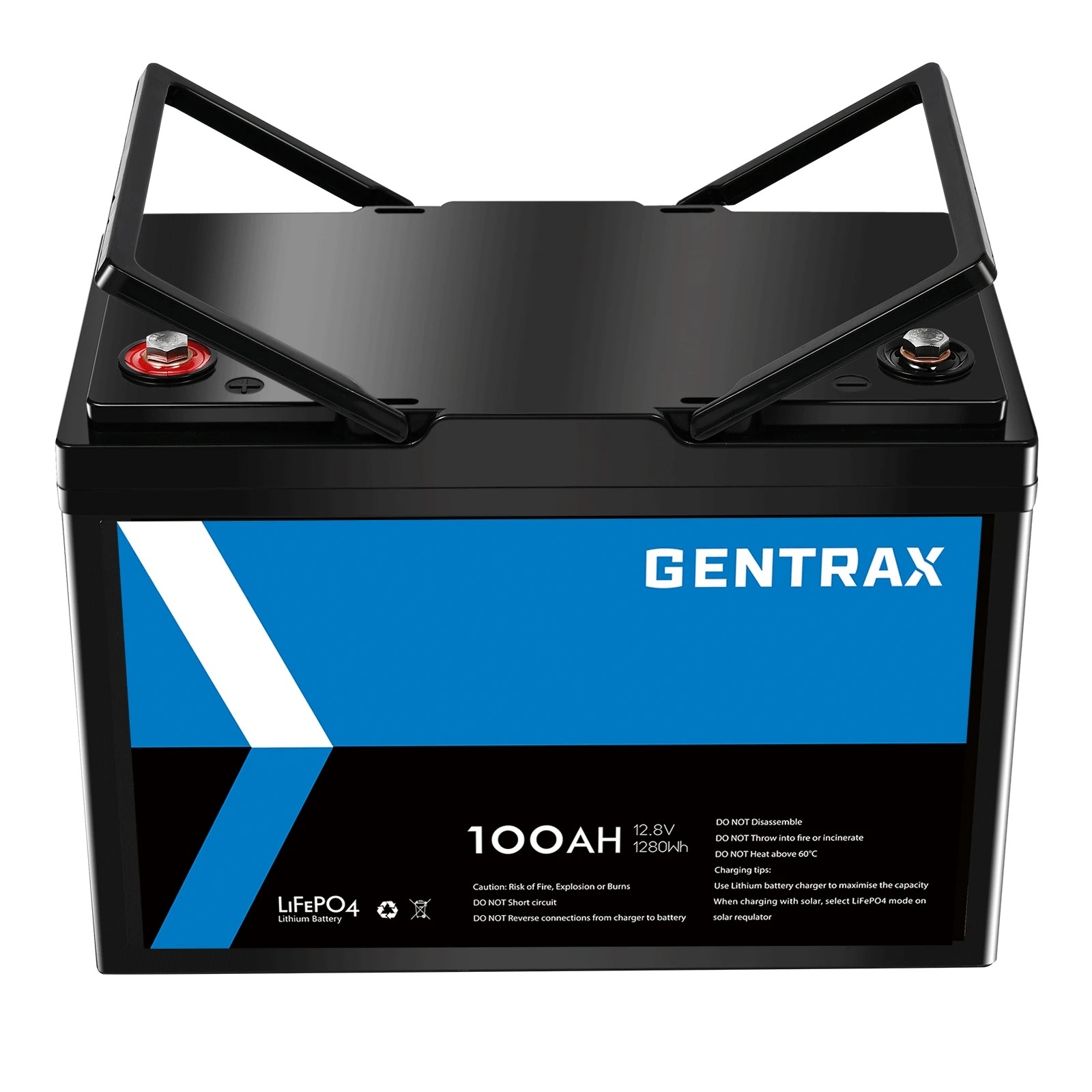

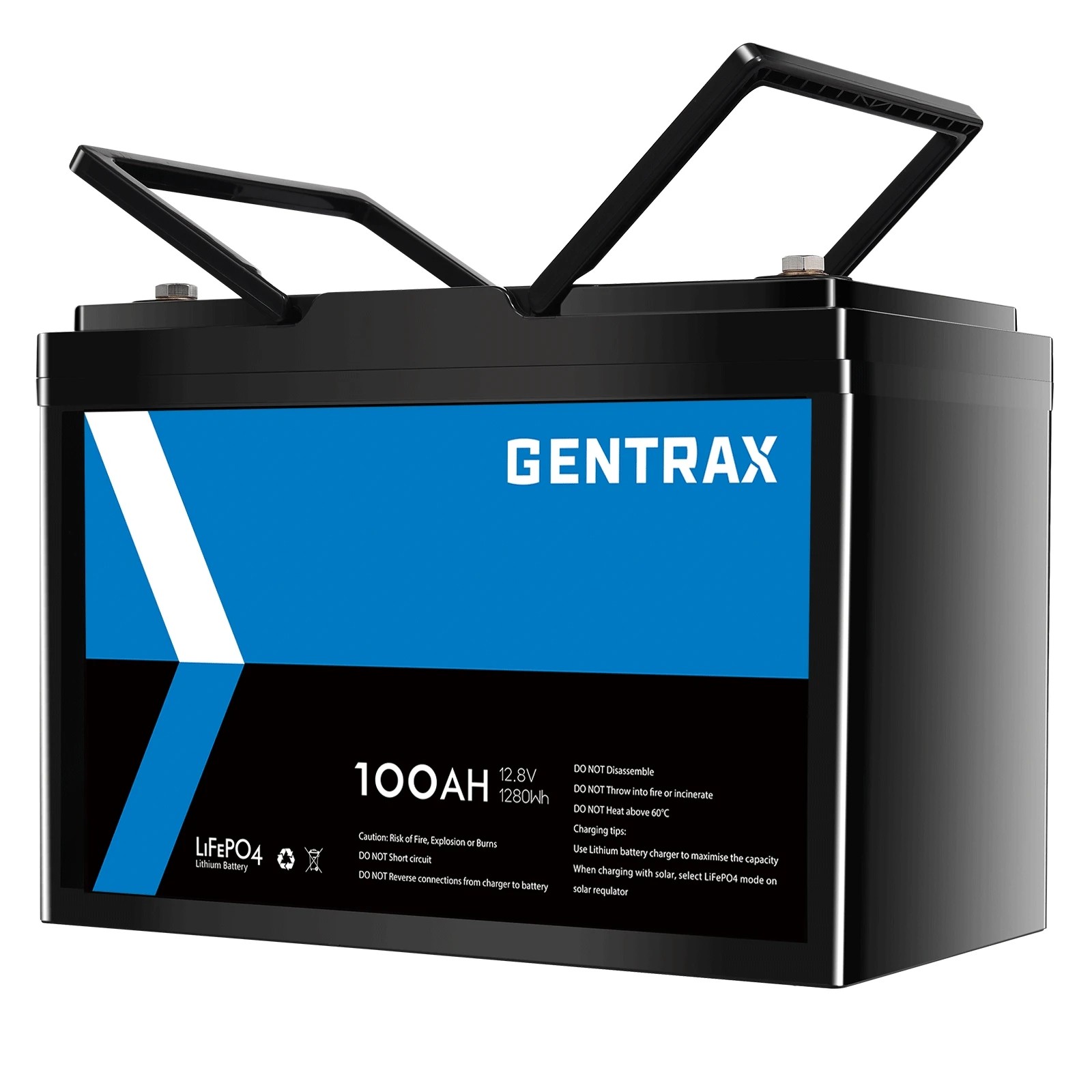

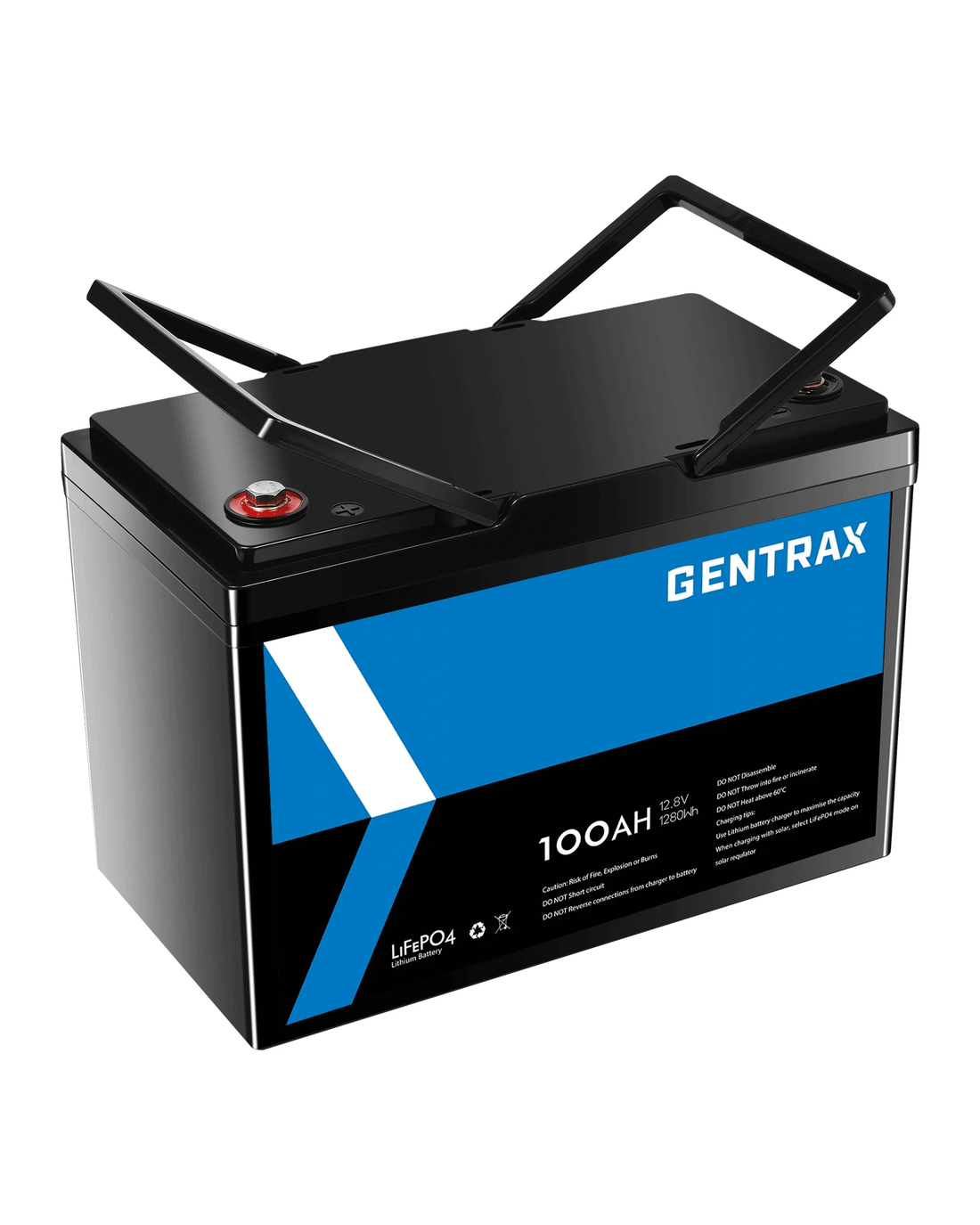

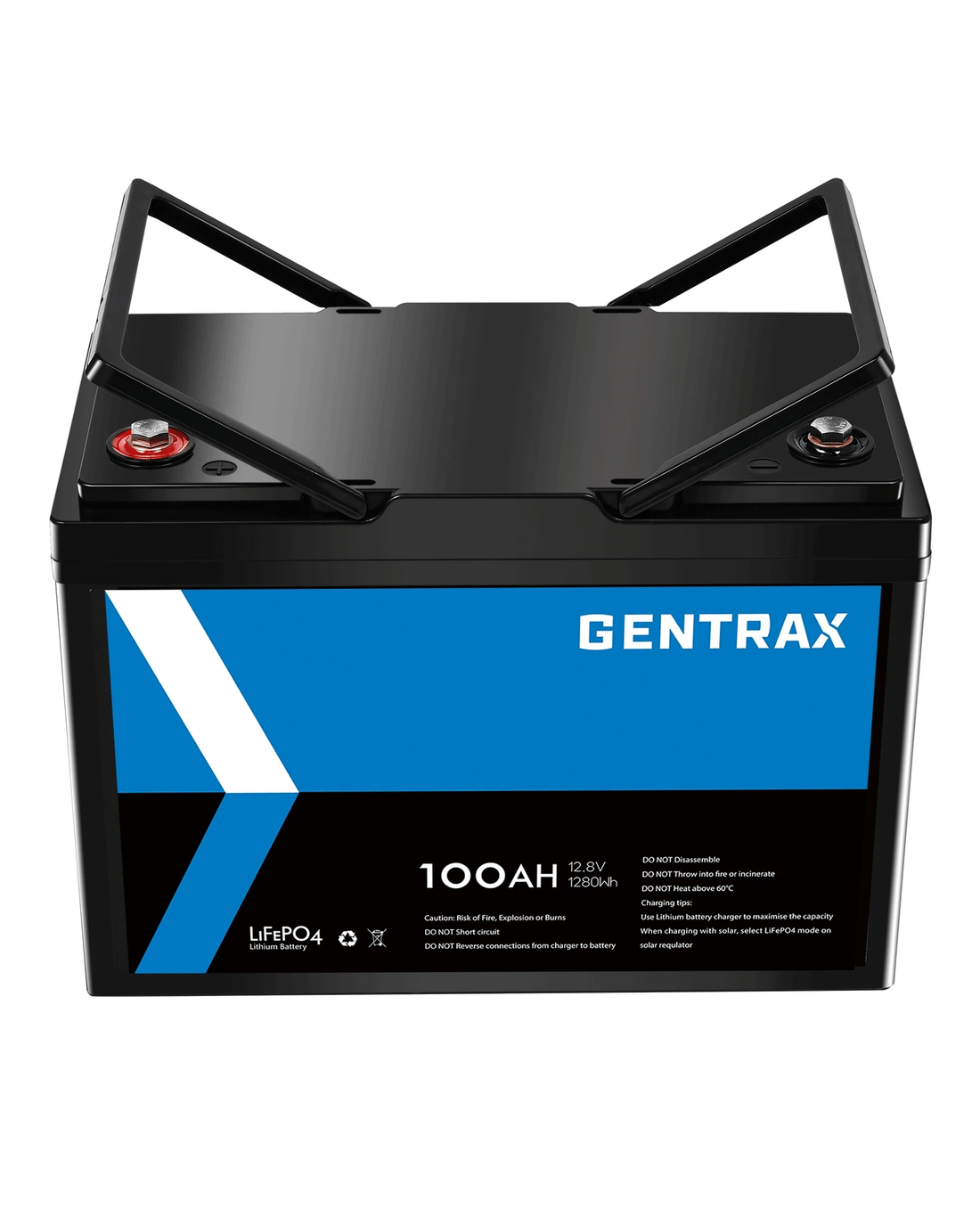

Product 1: 12V 100Ah Lithium Battery

• Specifications

• Brand: GENTRAX

• Nominal Voltage: 12.8V

• Nominal Capacity: 100Ah

• Rated Energy: 1280Wh

• Approx Life Cycles: ≥3000

• Battery Manage System: 100A

• Standard Charging Current: 50A

• Max. Charging Current: 100A

• Standard Discharge Current: 100A

• Max. Continuous Discharge Current: 100A

• Max. Discharge Current 5 sec: 200A

• Charger: 14.6V 50A (not include)

• Charging Voltage: 14.2-14.6V

• Absorption Voltage: 14.2-14.6V

• Float Voltage: 13.6V

• Overcharge Protection: 15V

• Overcharge Recovery: 14.4V

• Overdischarge Protection: 11.2V

• Overdischarge Recovery: 10.6V

• Charge Temperature : 0°C to 45°C

• Discharge Temperature : -20°C to 60°C

• Storage Temperature: -10°C to 50°C

• Charge Method: CC/CV

• Charging Way: LiFePO4 Charger, Solar Panel, Generator

• Case Material: ABS Plastic

• Battery Type: LiFePO4 Lithium Battery

• Battery Model: Standard

• Battery Shape: General

• Certifications: UN38.3

• Protection Class: IP65

• Warranty in Years: 2

• Bolt Type: M8

• Bolt Material: Iron nickel-plated

• Cell Grouping: 4S2P

• Parallel Connection: Max 4

• Series Connection: No

• Dimensions & Weight

• Product Size: L306 x W169 x H215mm

• Package Size: L360 x W230 x H271mm

• Bolt Terminal Size: Hexagon x 14mm

• Bolt Terminal Perimeter: 25.12mm

• Net Weight: 9.5kg

• Gross Weight: 10.4kg

• Package List

• 1x 100Ah Lithium Battery

• 2x Terminal Bolts M8*14

• 2x Insulating Covers

• 2x Screw Spring Washer

• 4x Screw Washers

• 1x User Manual

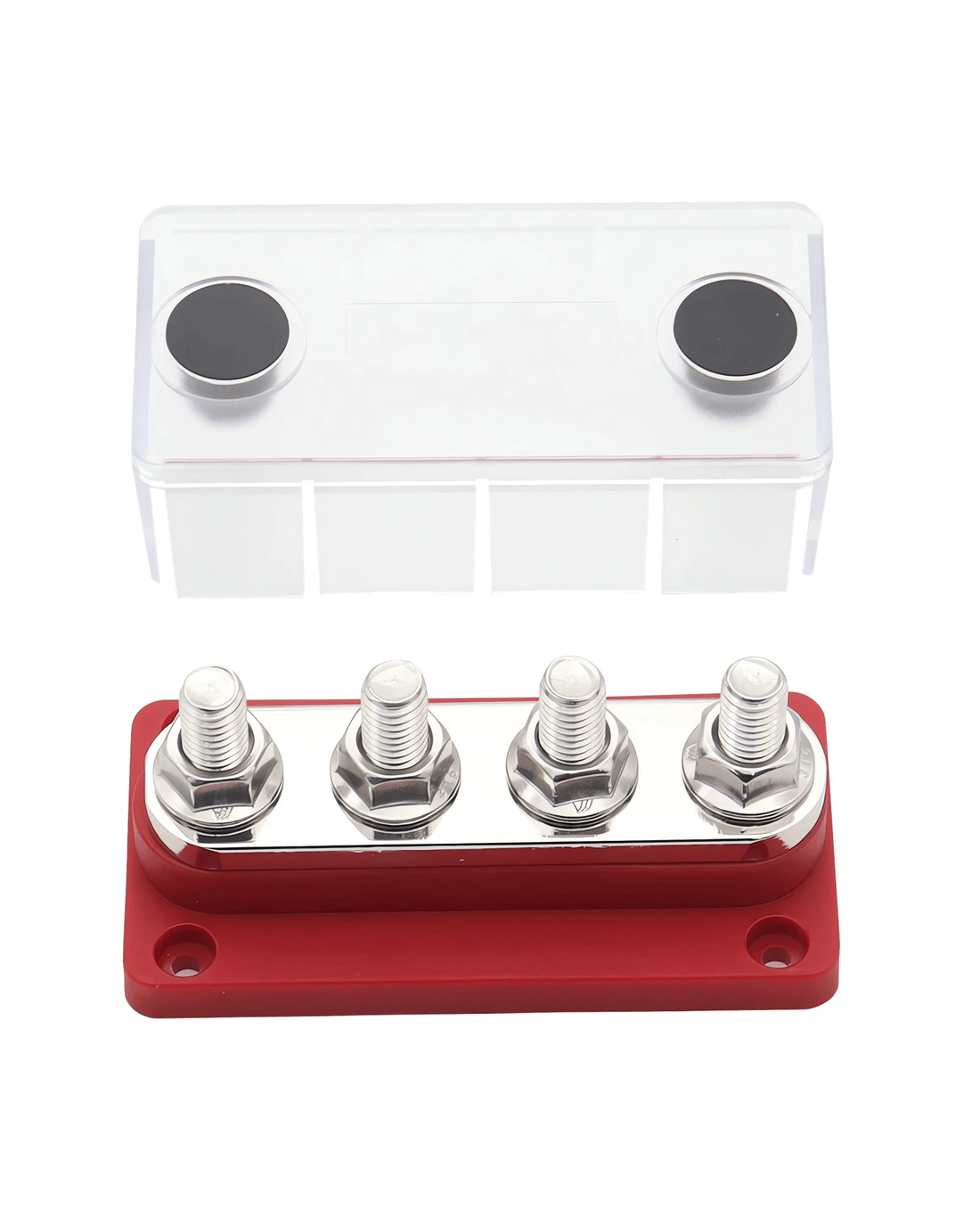

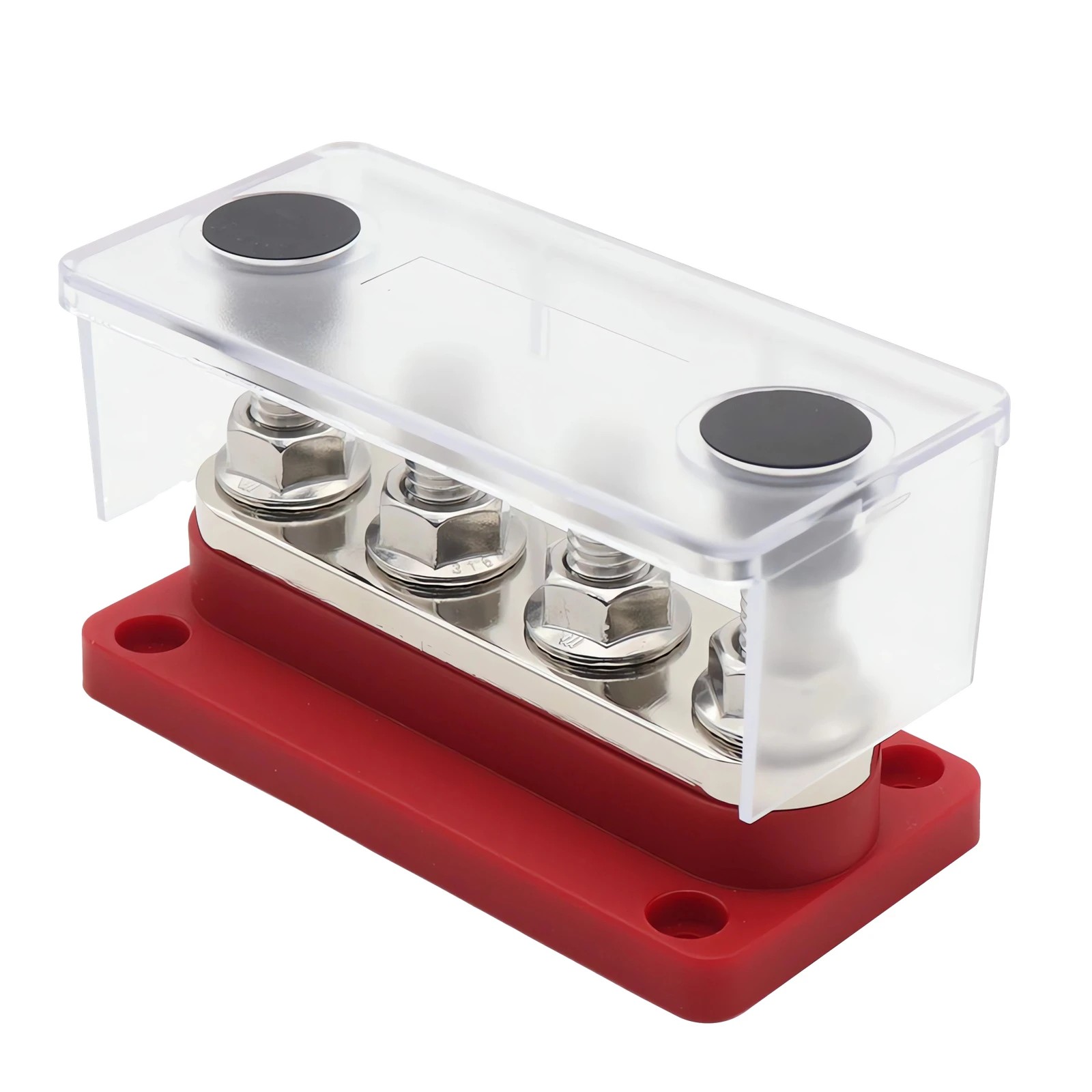

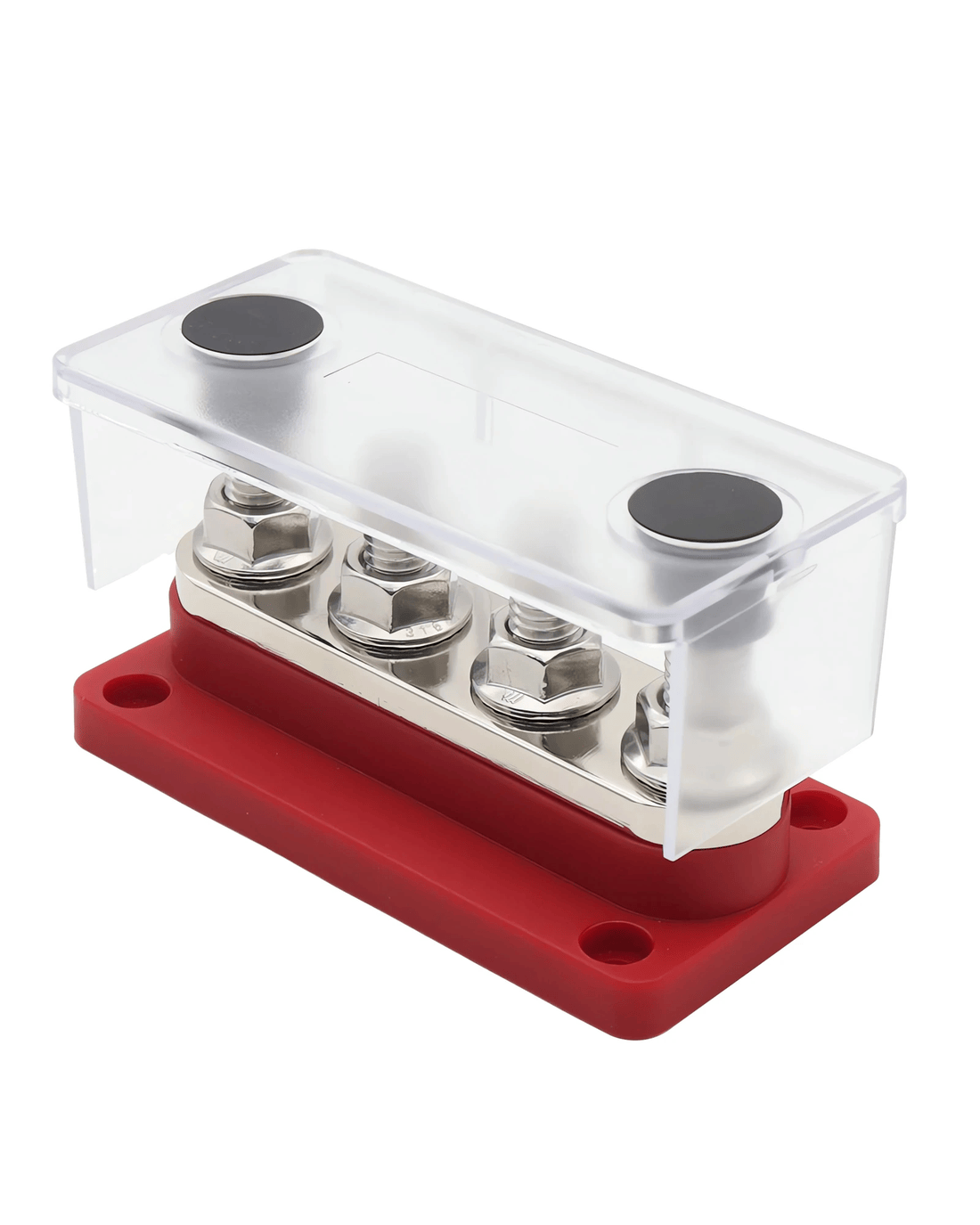

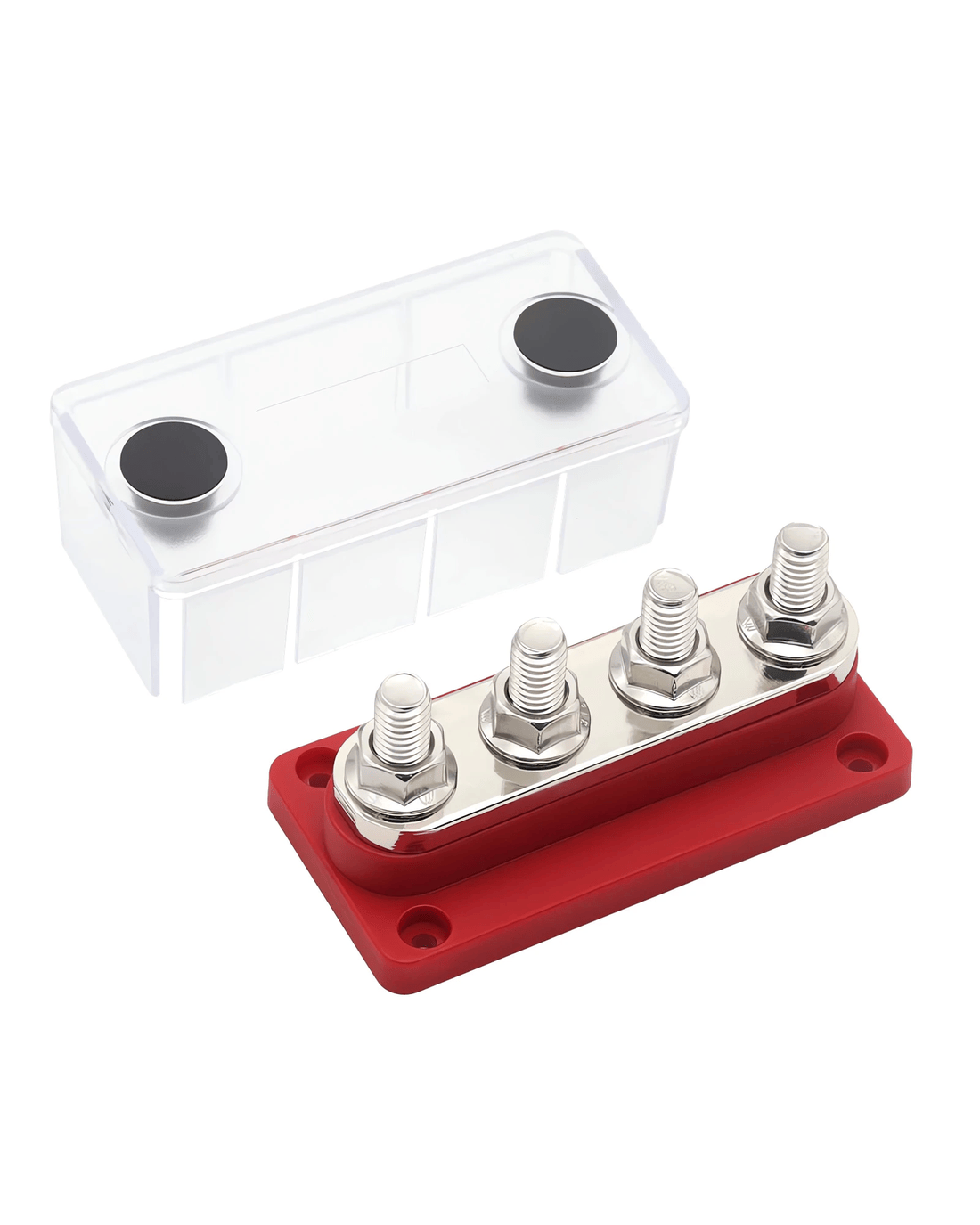

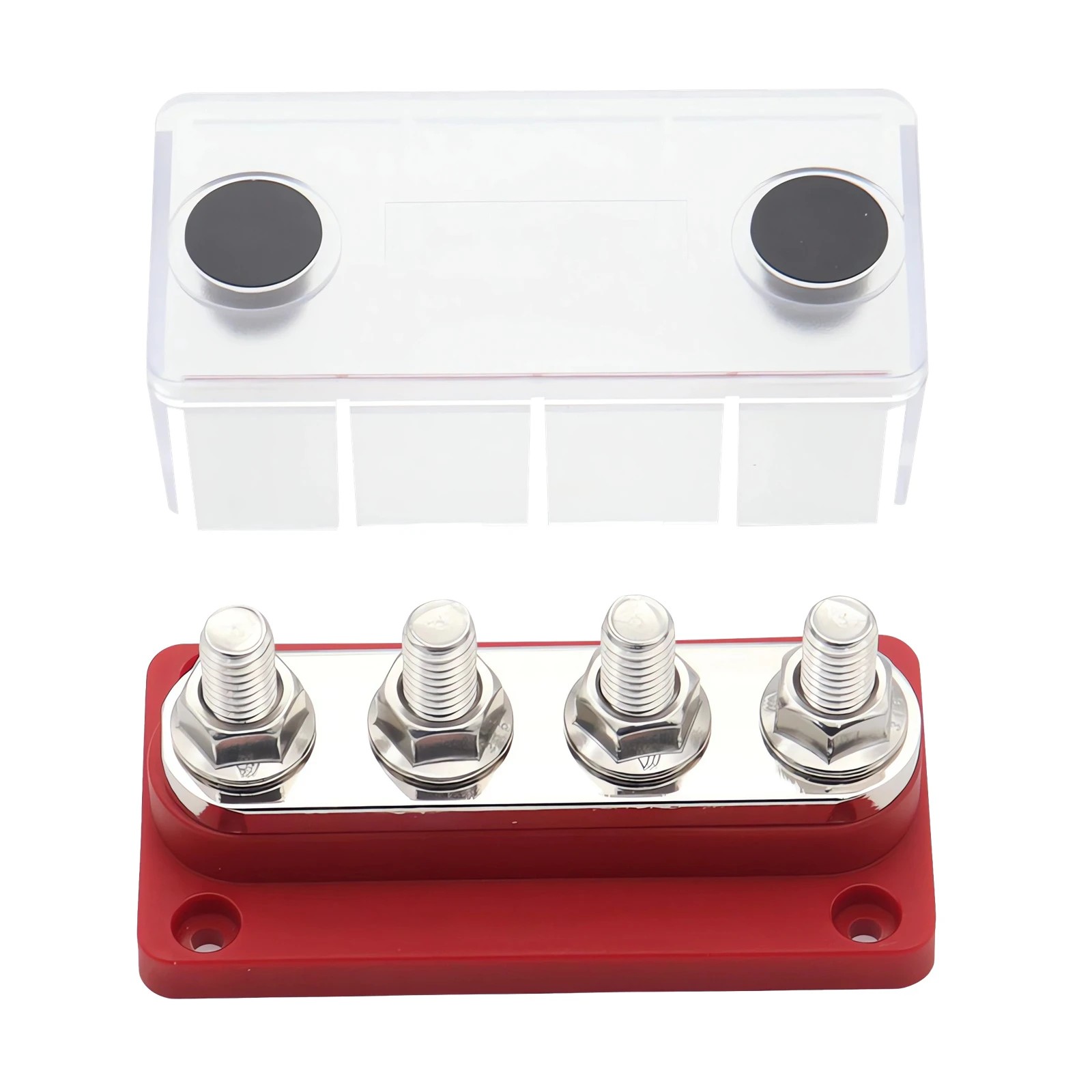

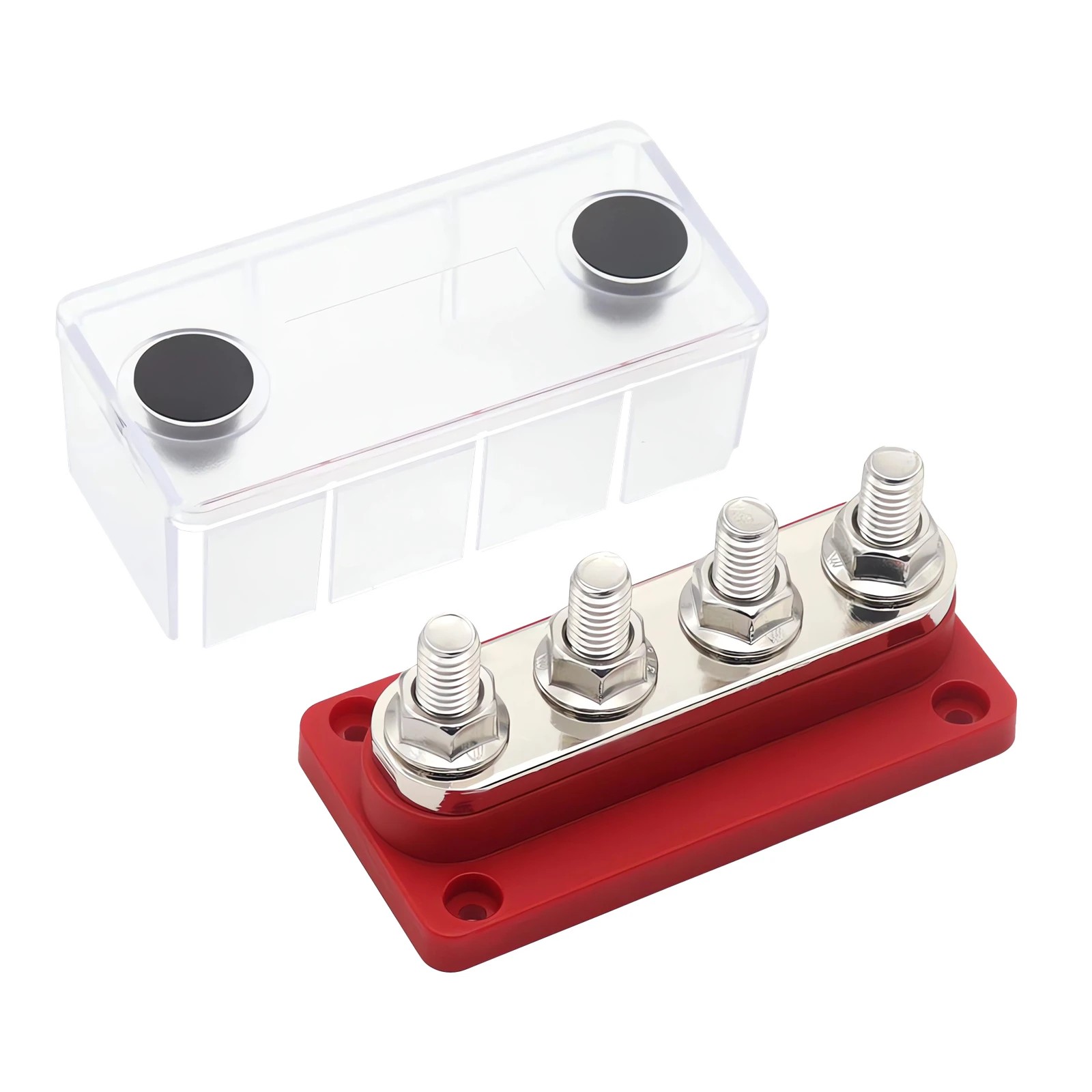

Product 2: Bus Bar M8 Power Distribution Terminal Block (4 GANG 300A Red)

• Specifications

• Base& Cover Material: Nylon, Glass Fiber reinforc

• Bus Material:Tin-Plated Copper

• Max Operating Voltage:DC48V

• Max Continuous Amp:300A

• Terminal Stud Size:4*M10(3/8")

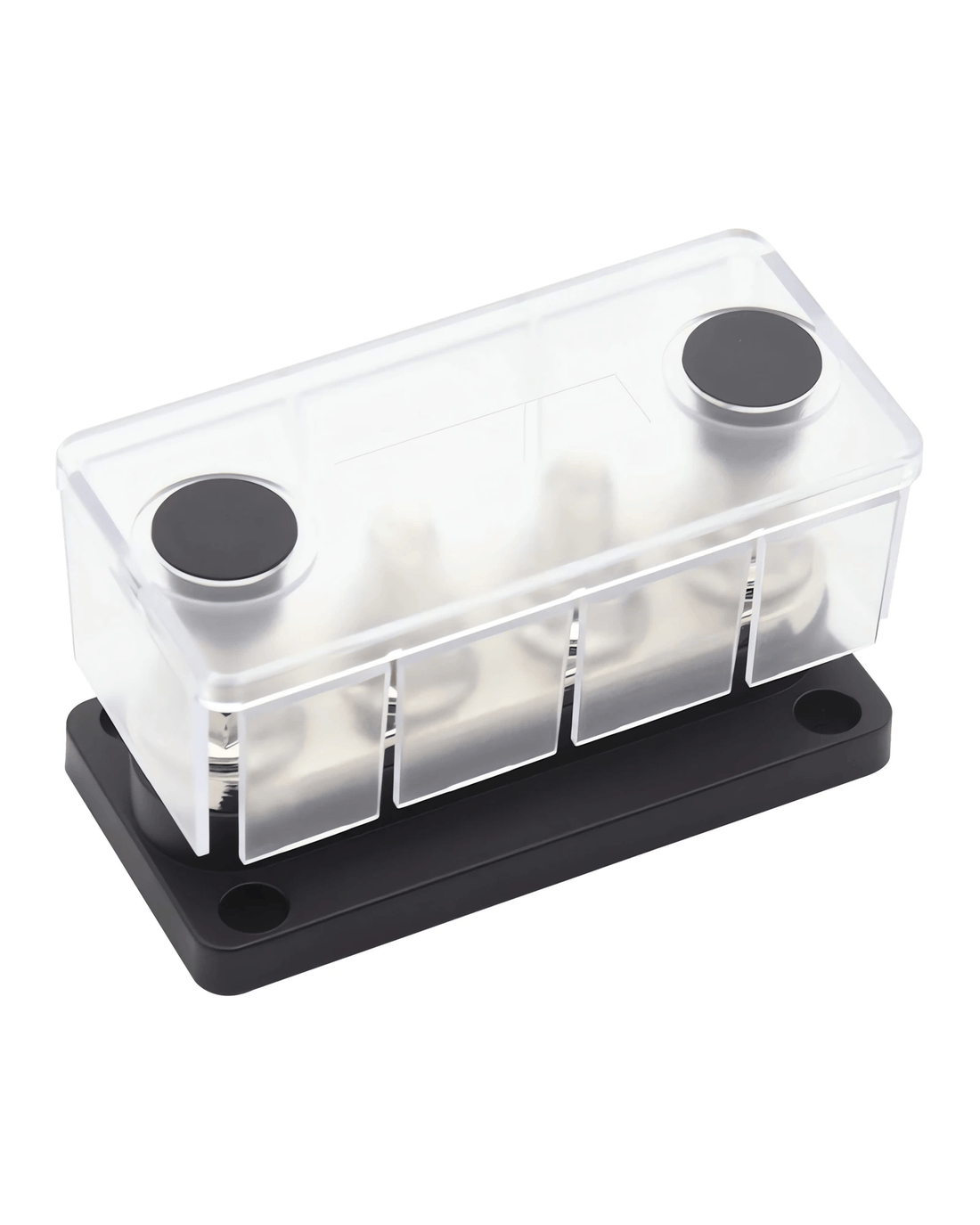

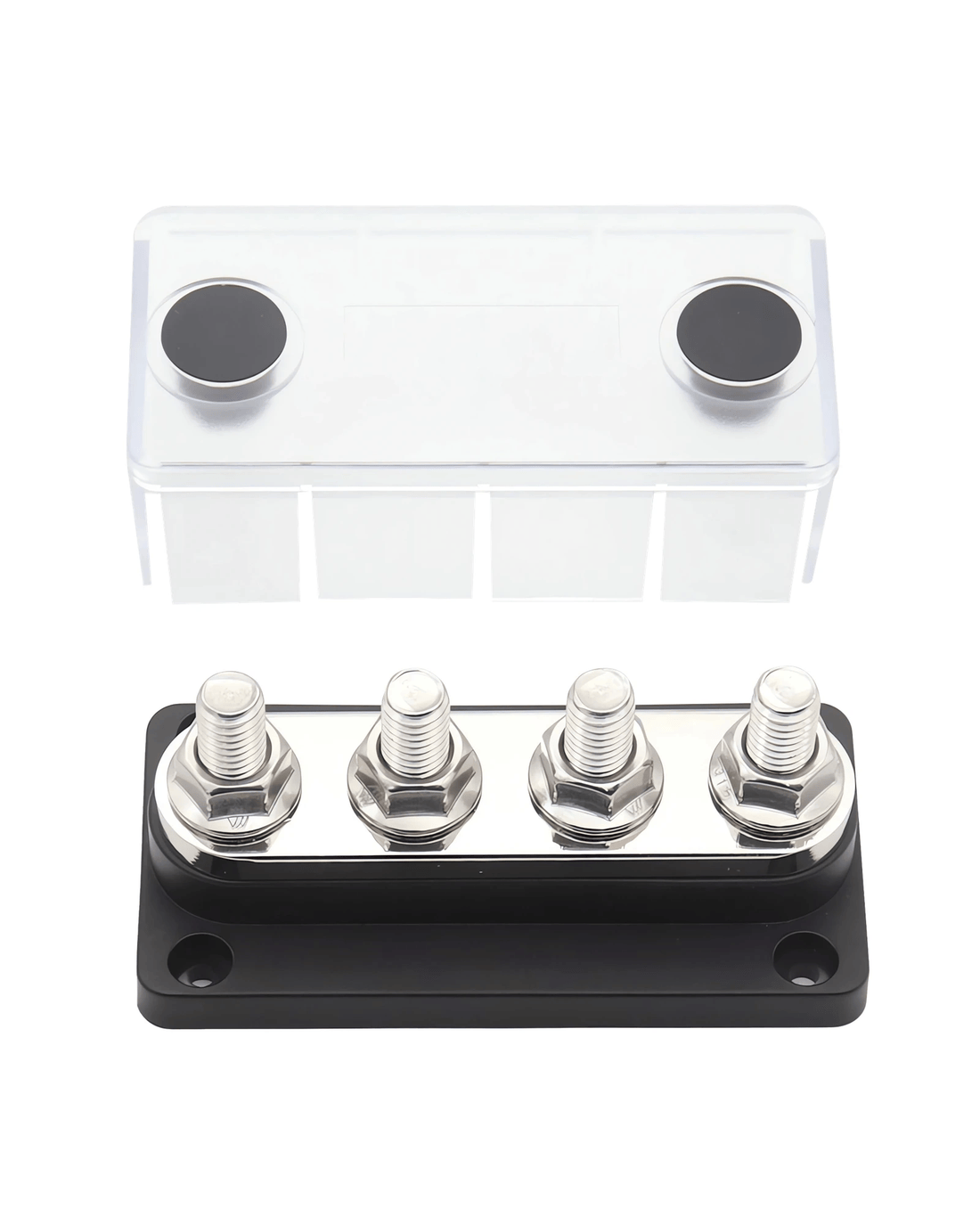

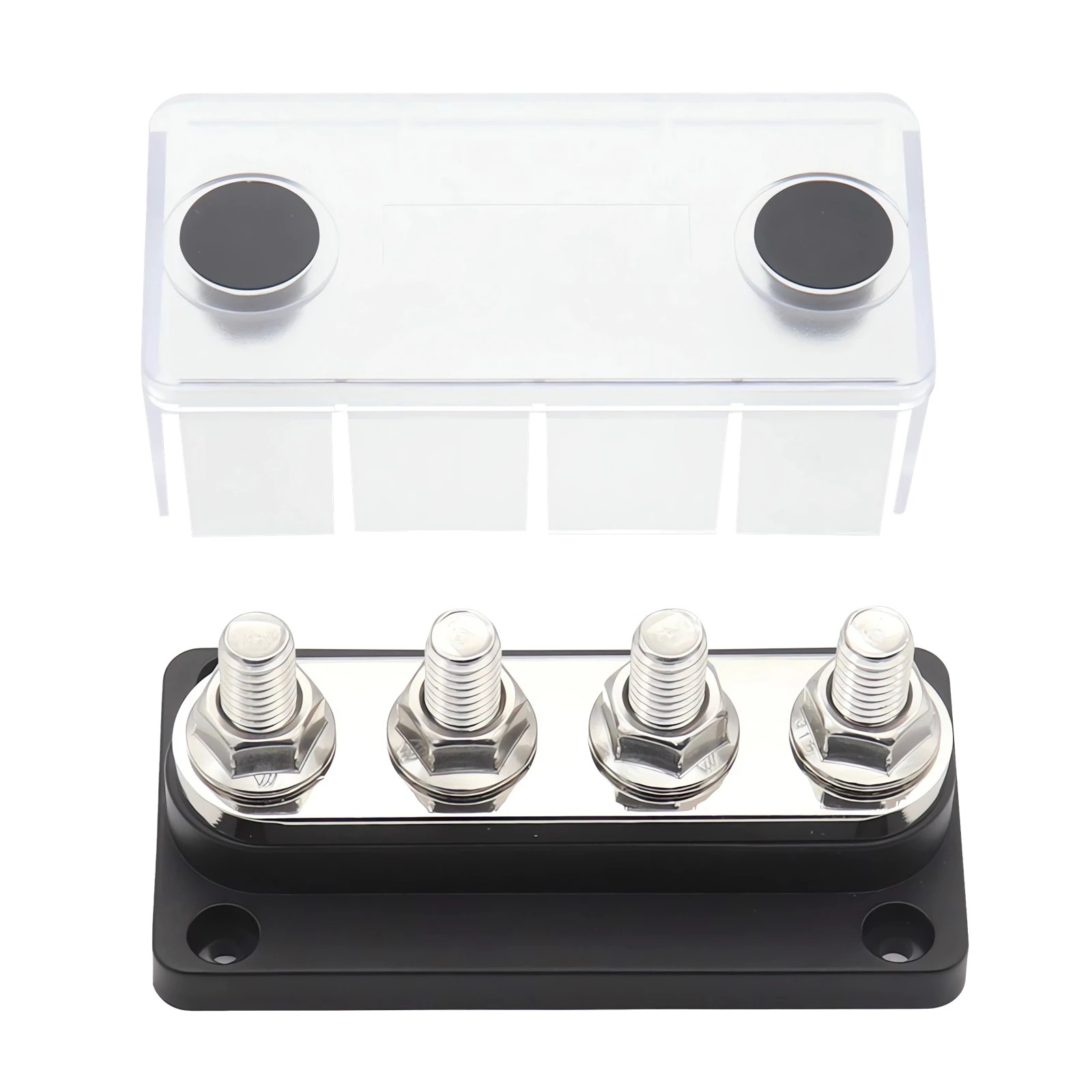

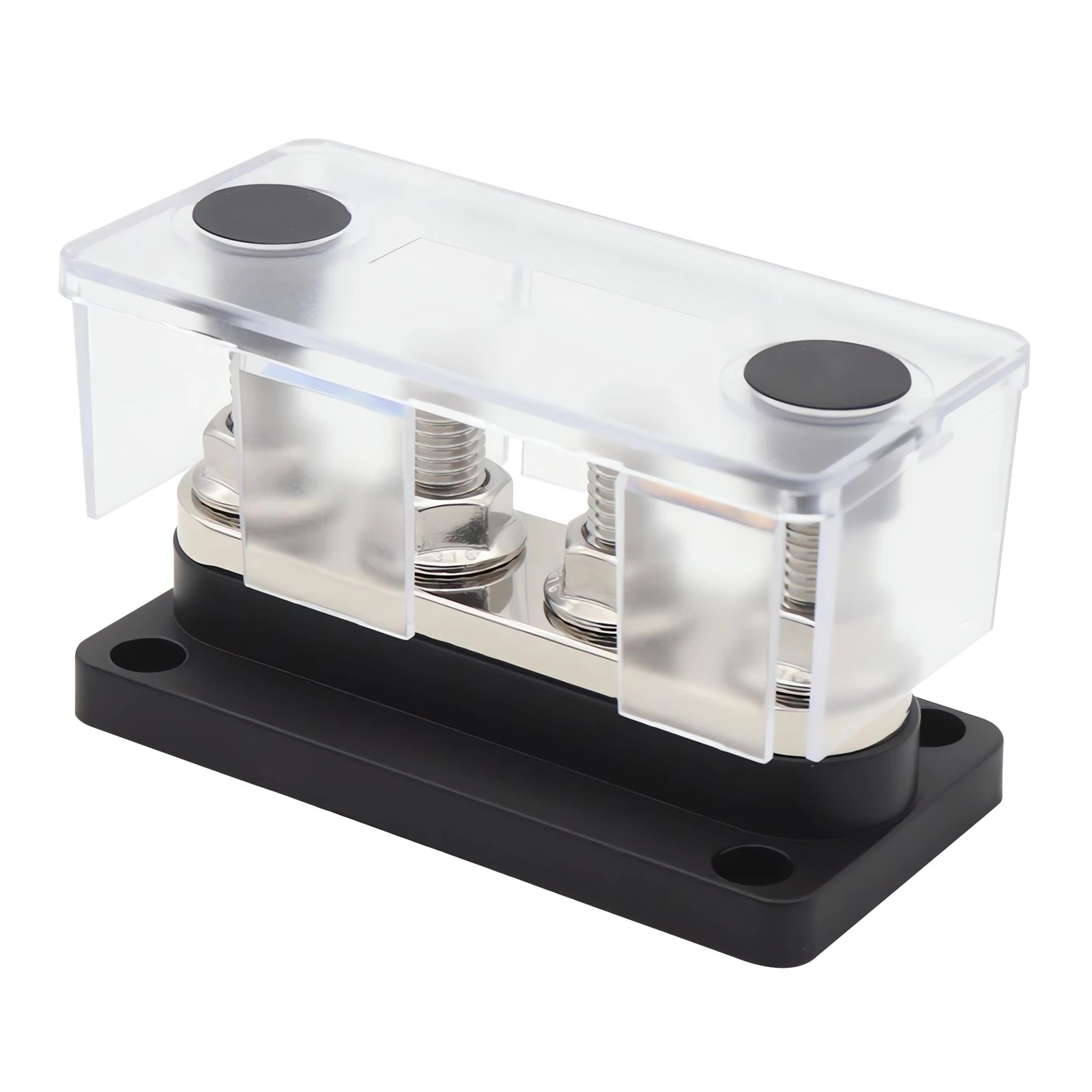

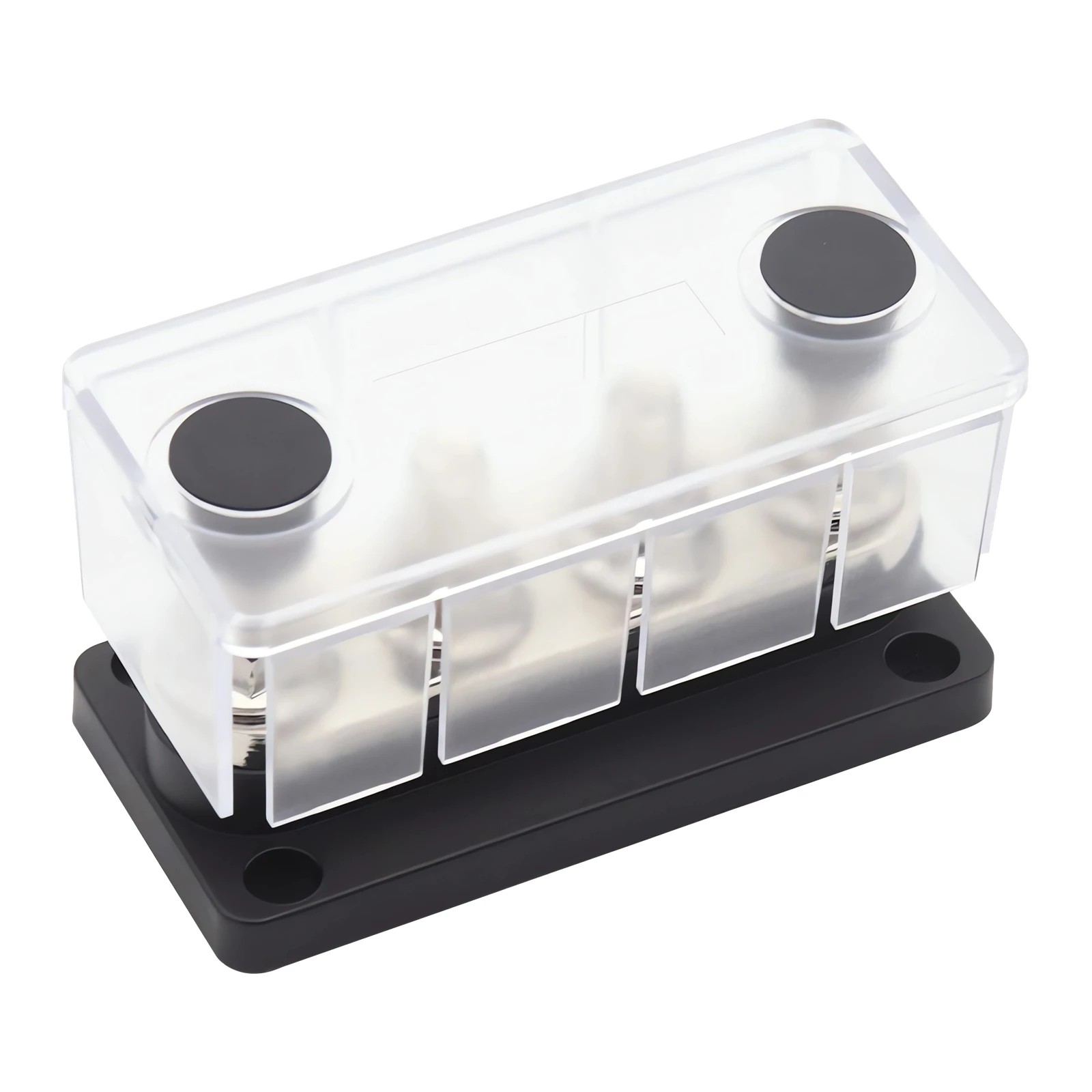

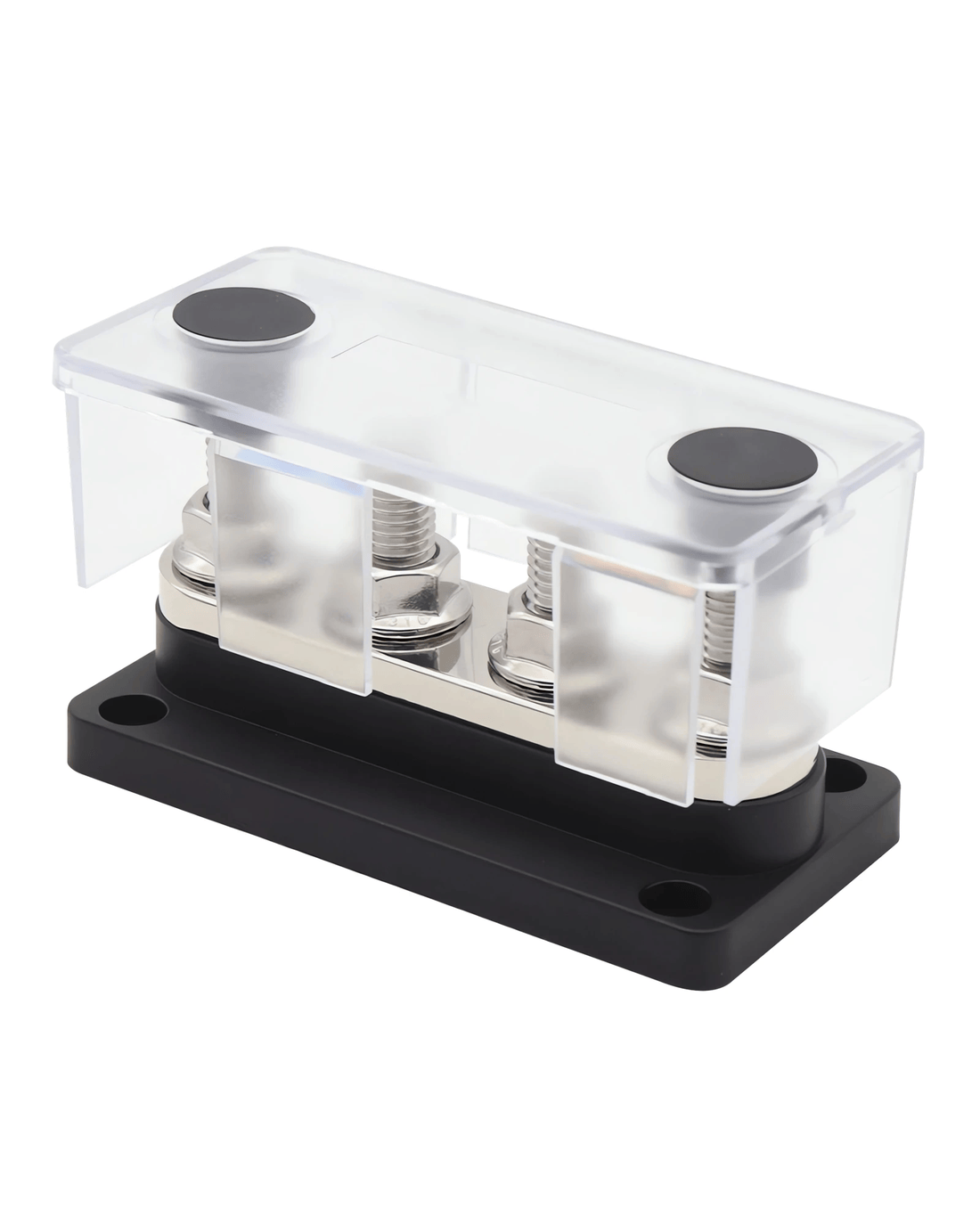

Product 3: Bus Bar M8 Power Distribution Terminal Block (4 GANG 300A Black)

• Specifications

• Base& Cover Material: Nylon, Glass Fiber reinforc

• Bus Material:Tin-Plated Copper

• Max Operating Voltage:DC48V

• Max Continuous Amp:300A

• Terminal Stud Size:4*M10(3/8")

Tips: The items in this bundle will be shipped separately, the packages may arrive at different times, please be patient and wait.
