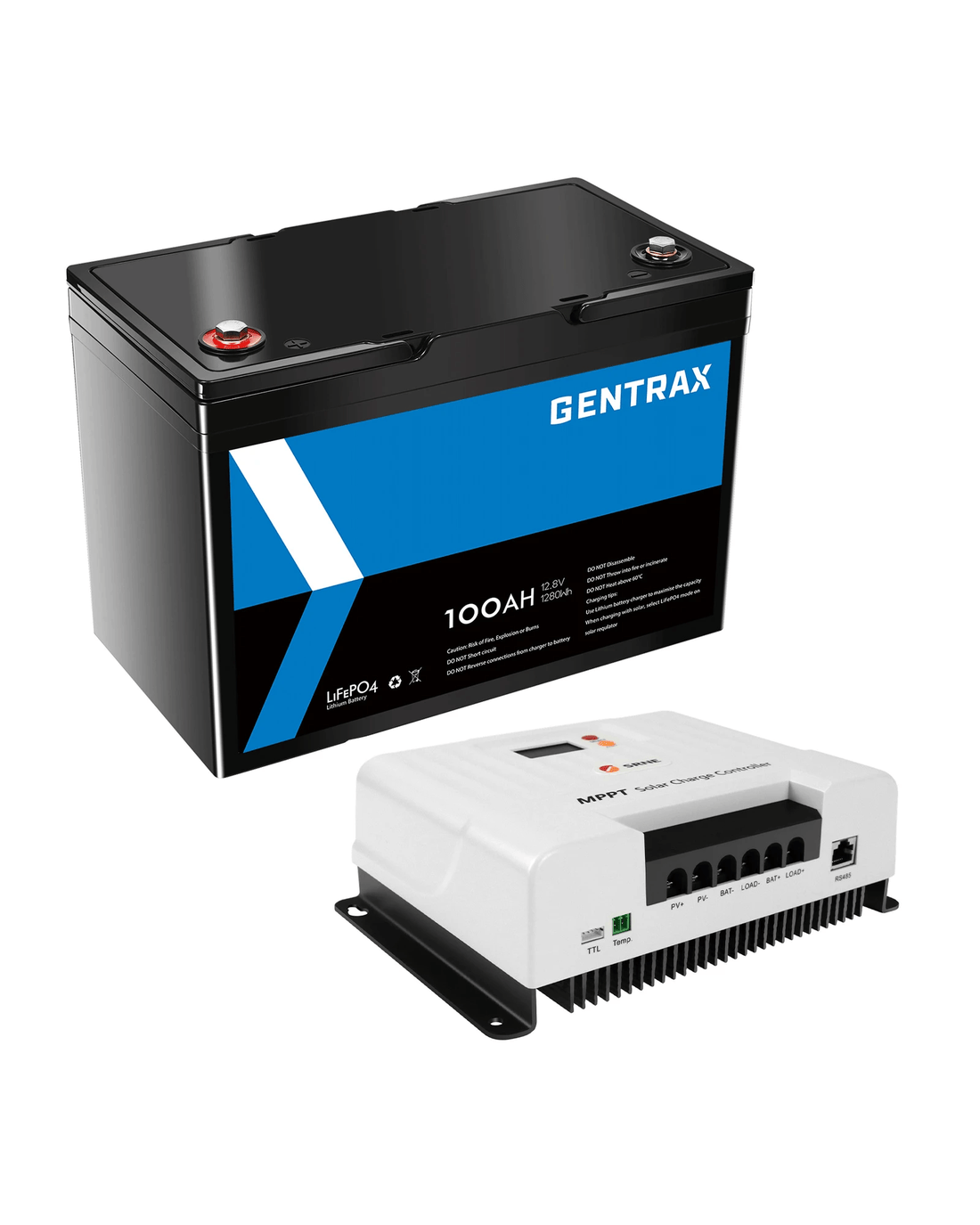

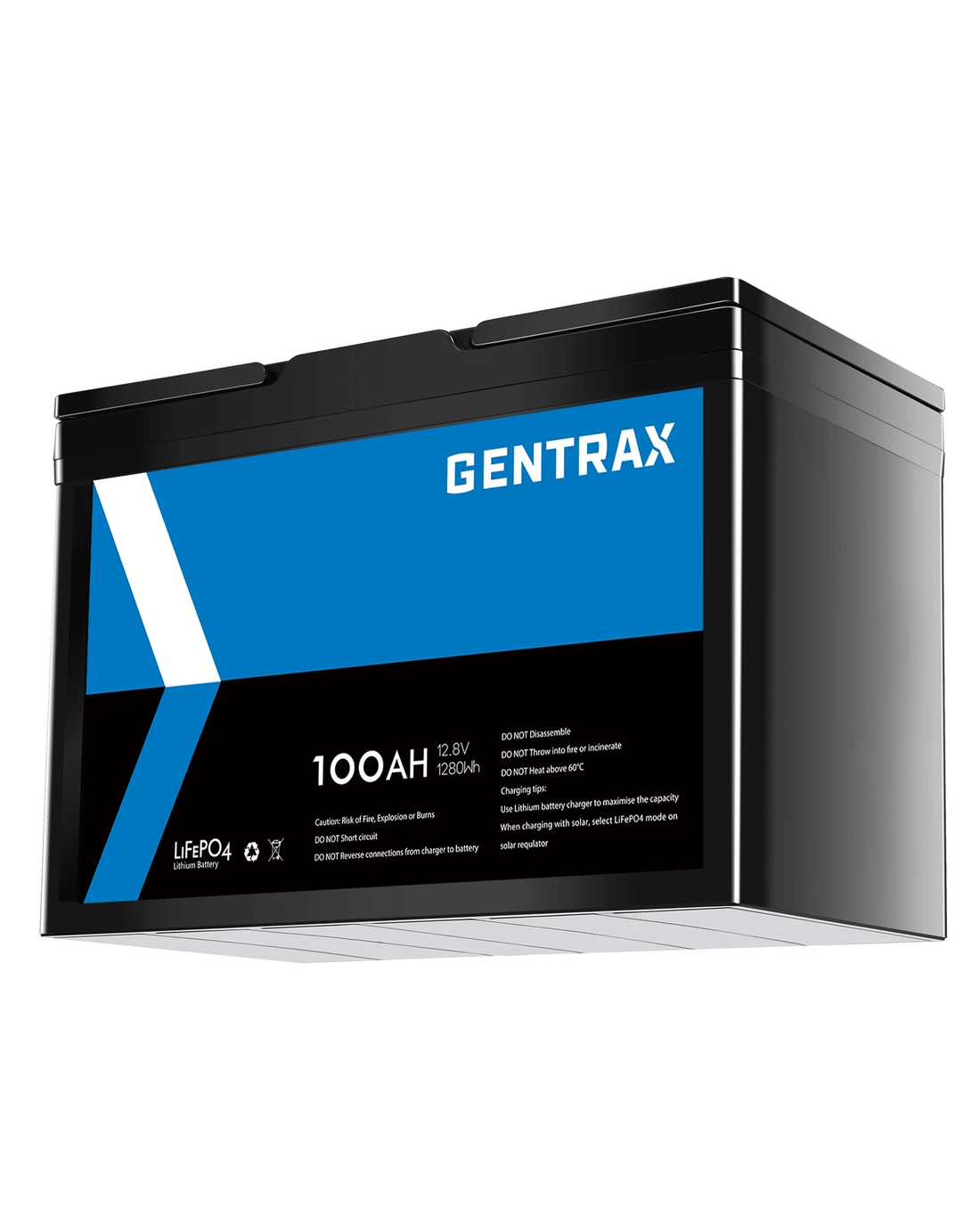

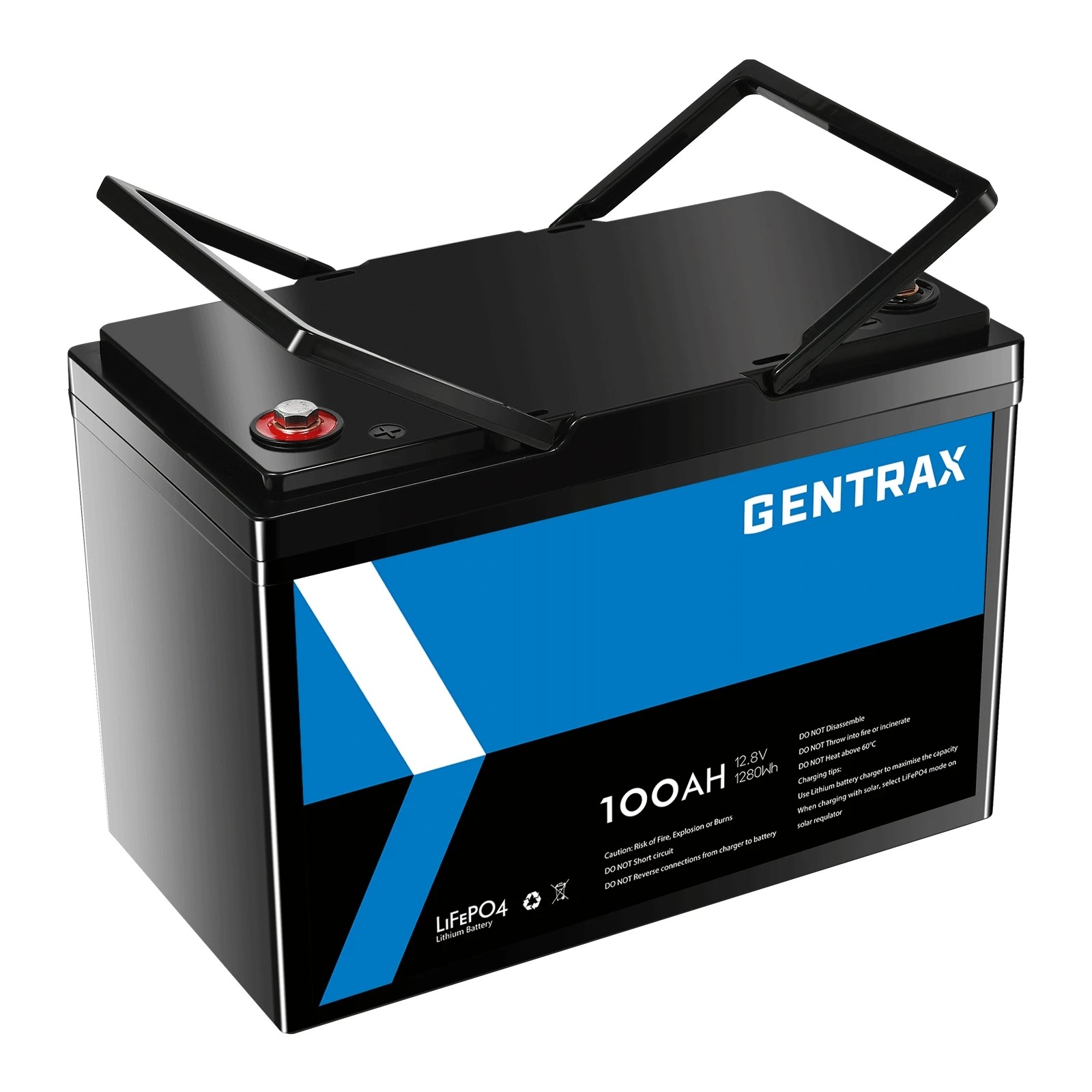

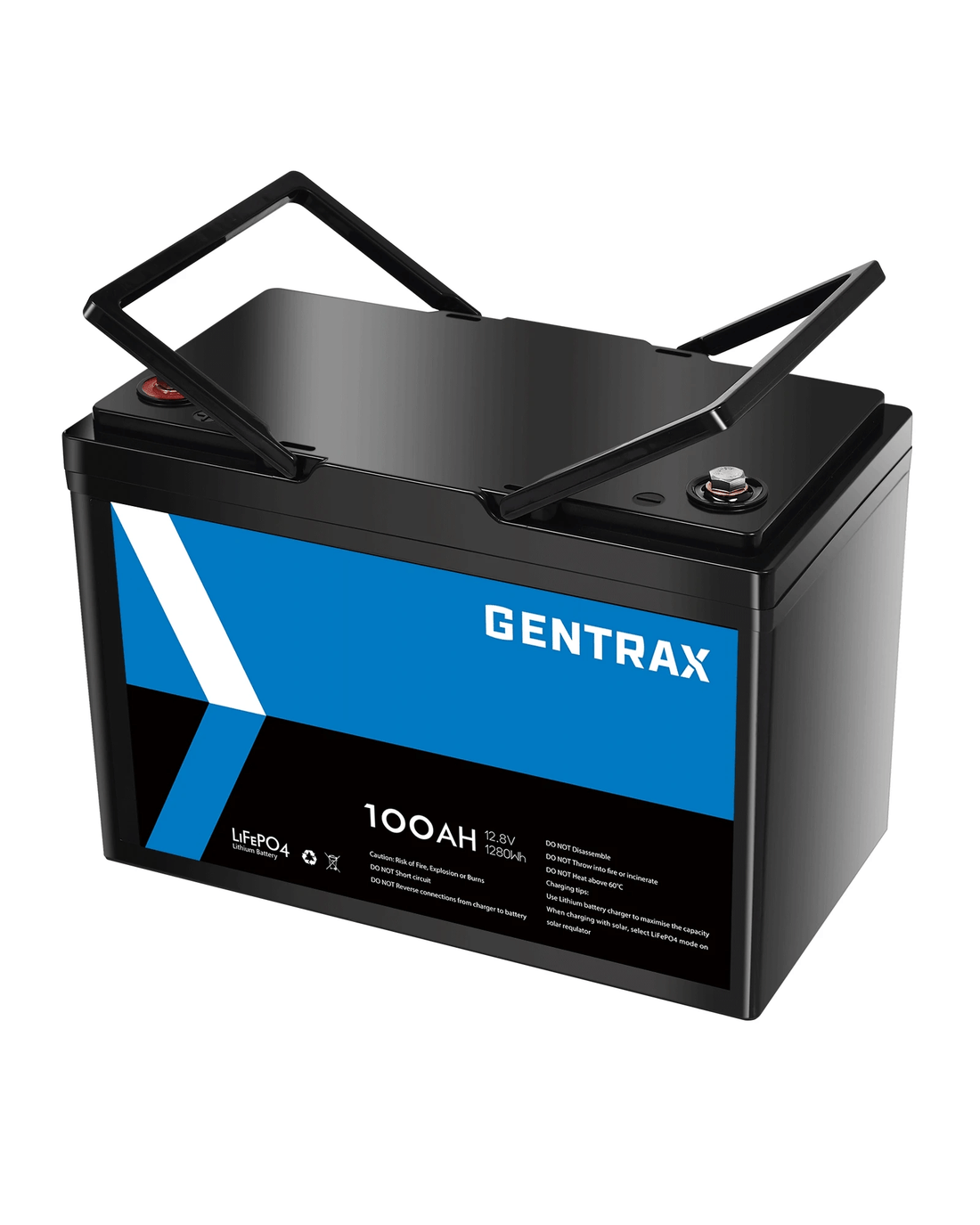

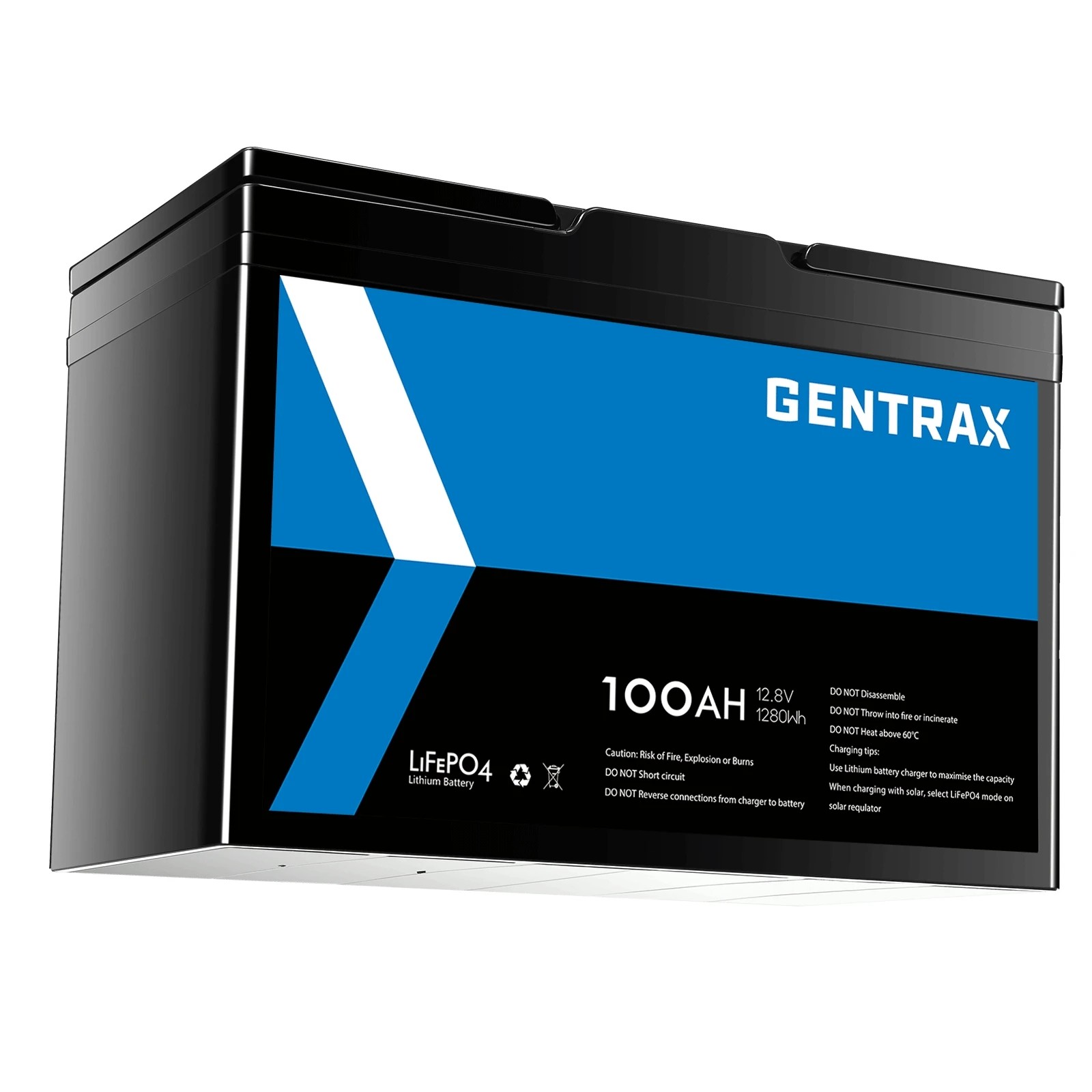

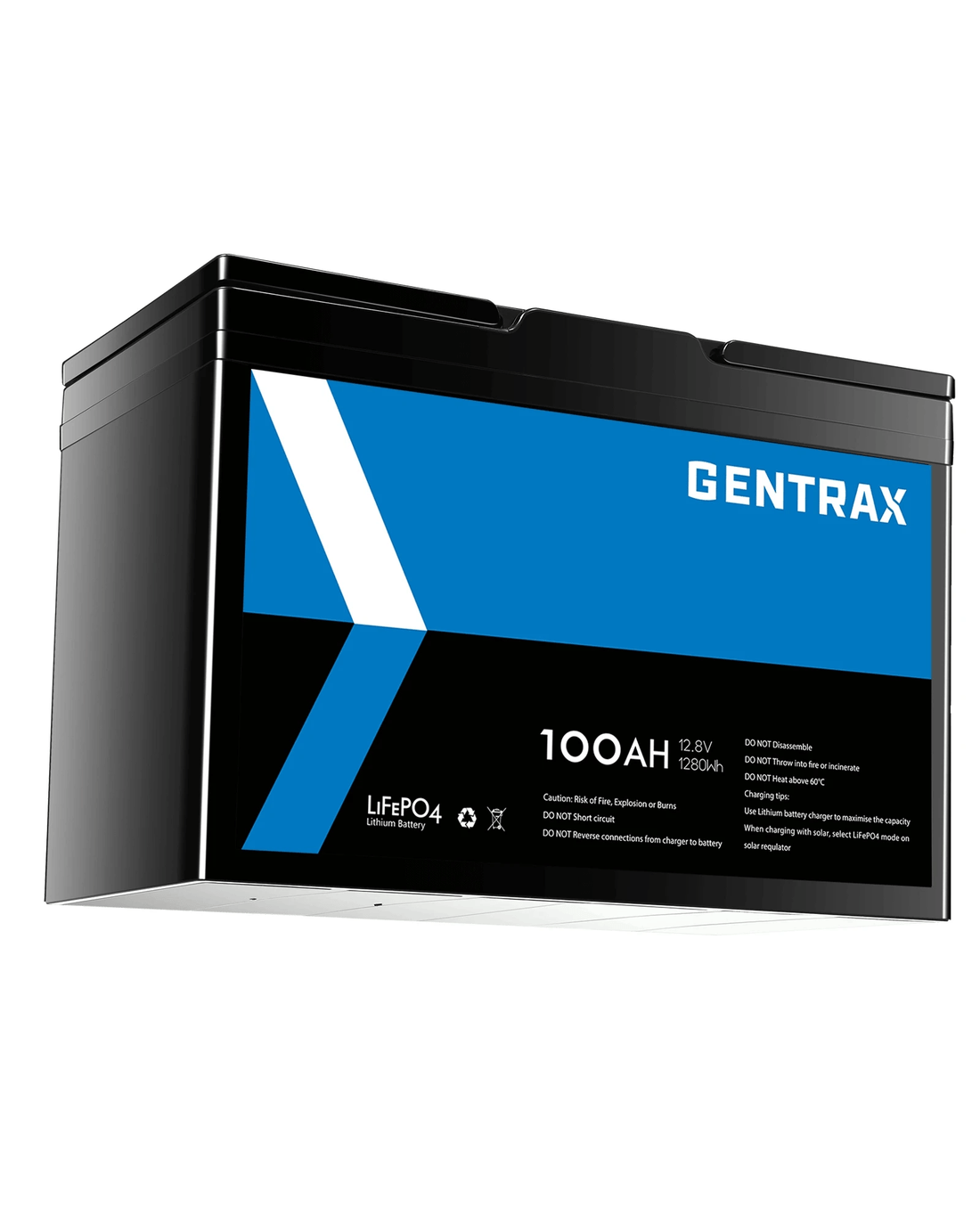

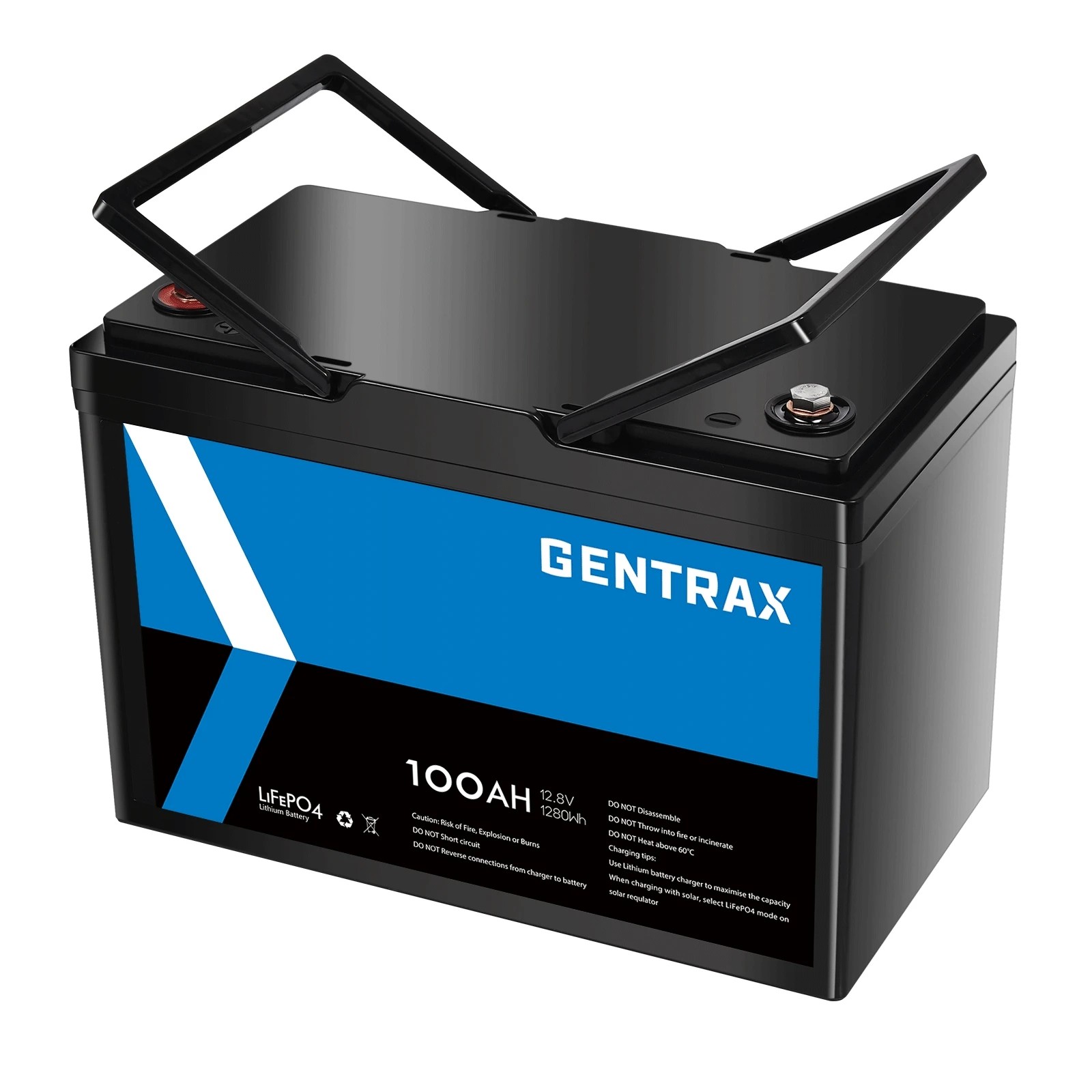

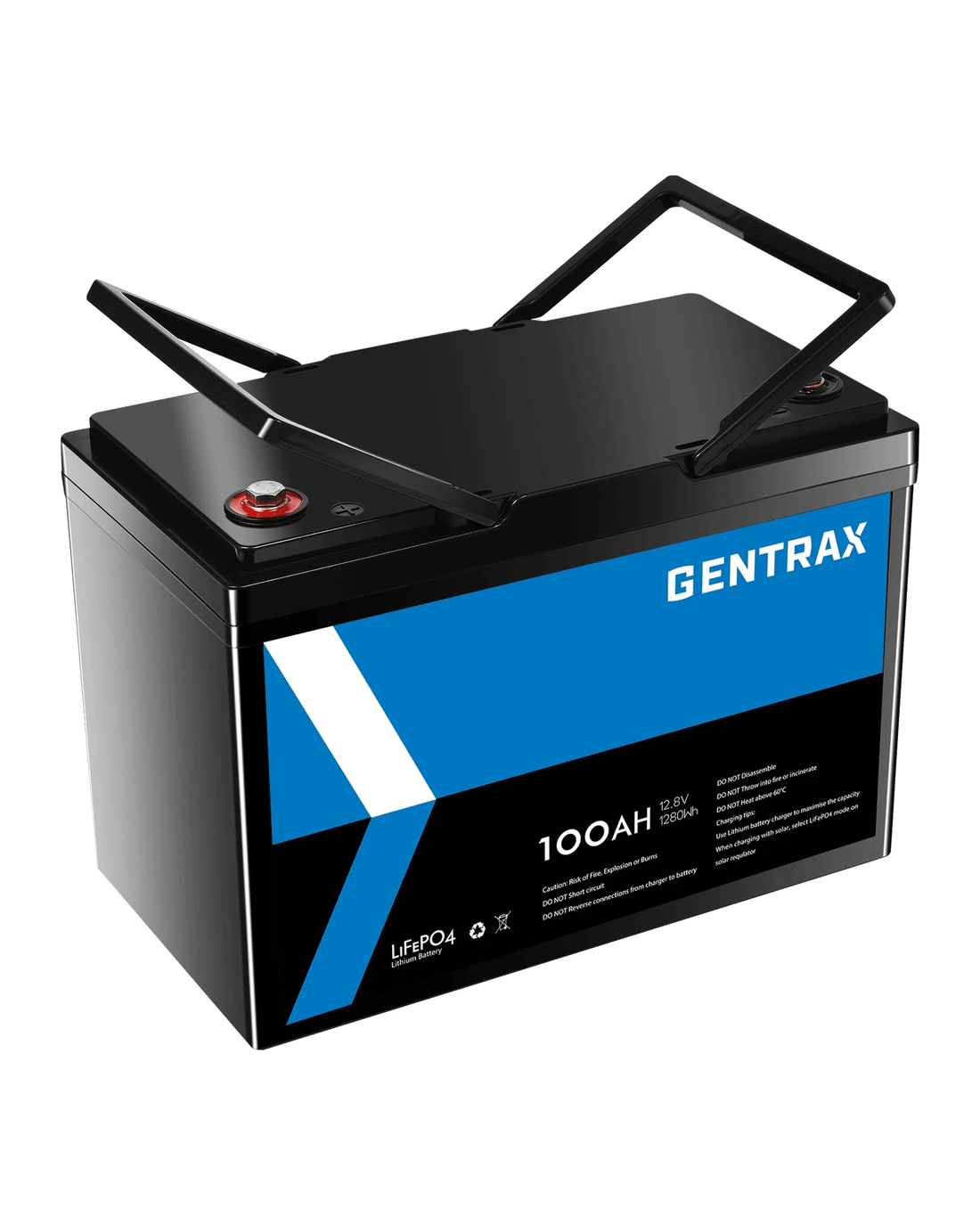

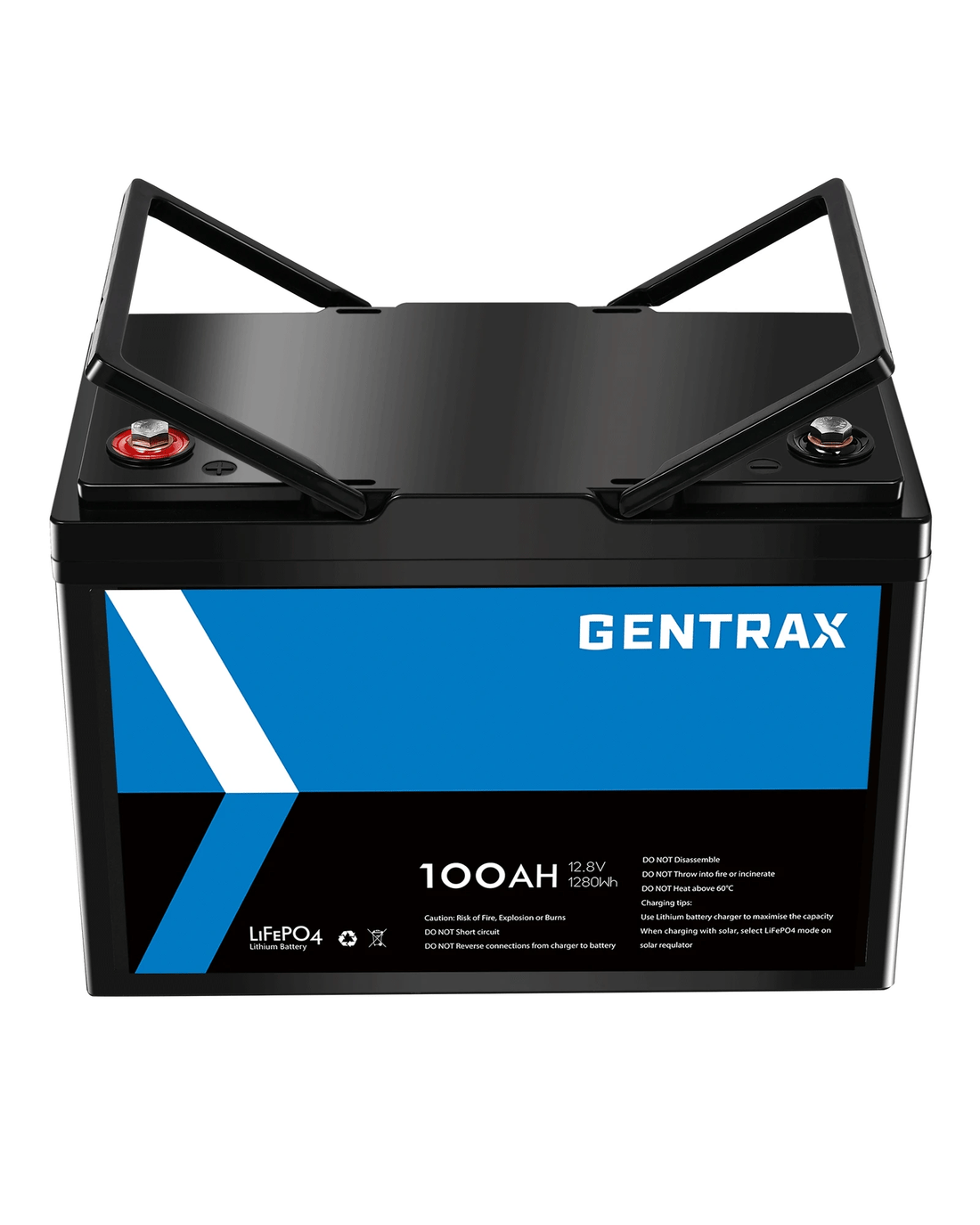

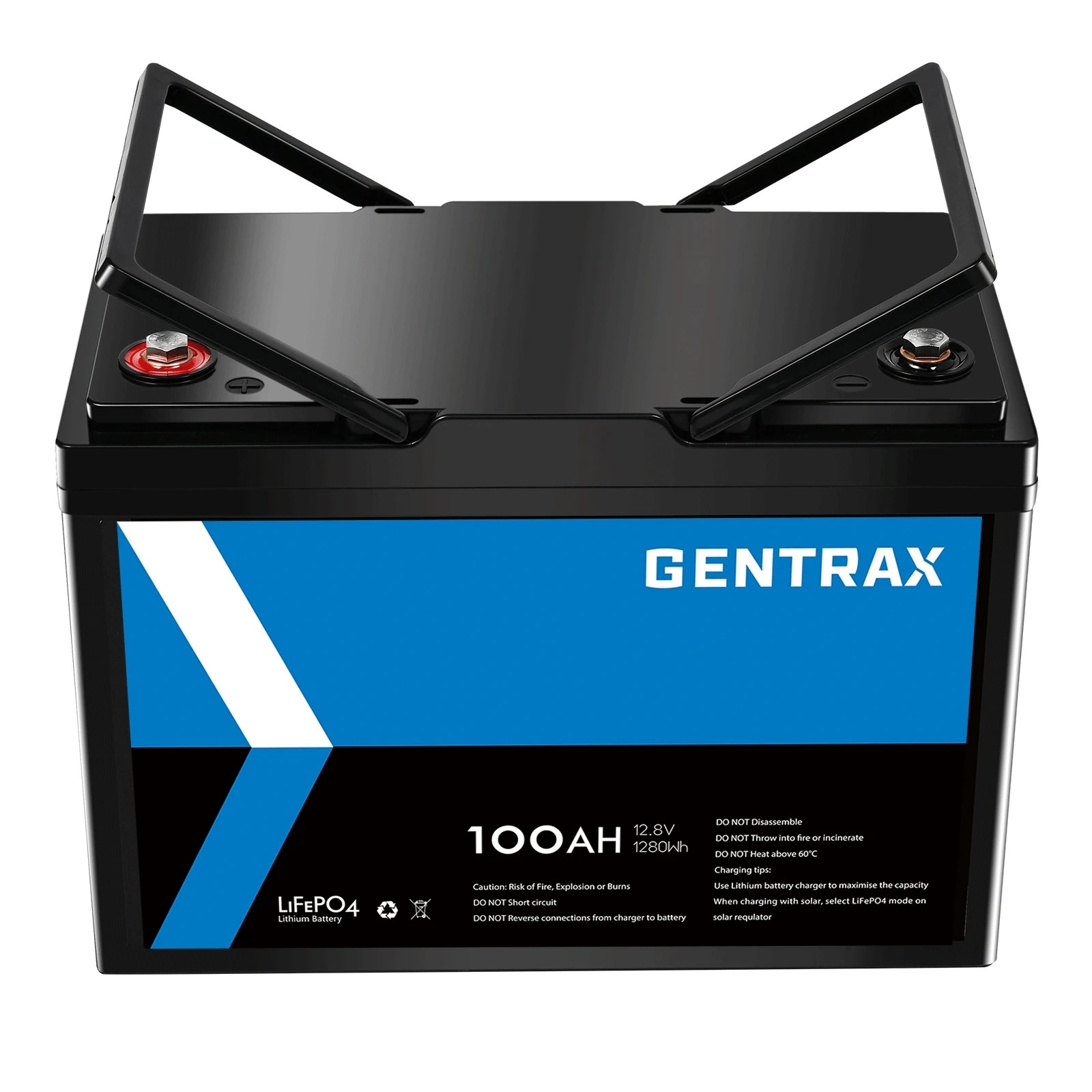

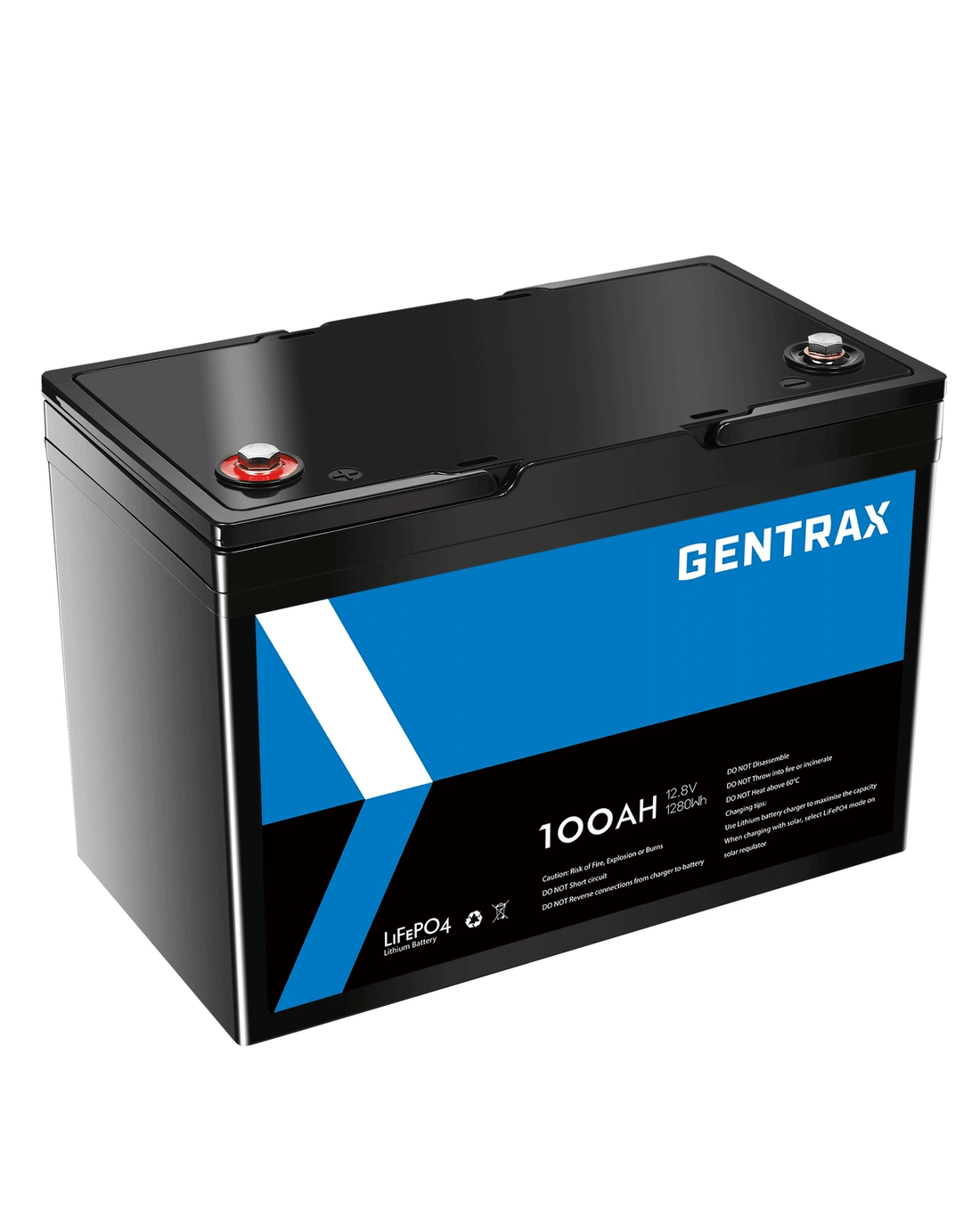

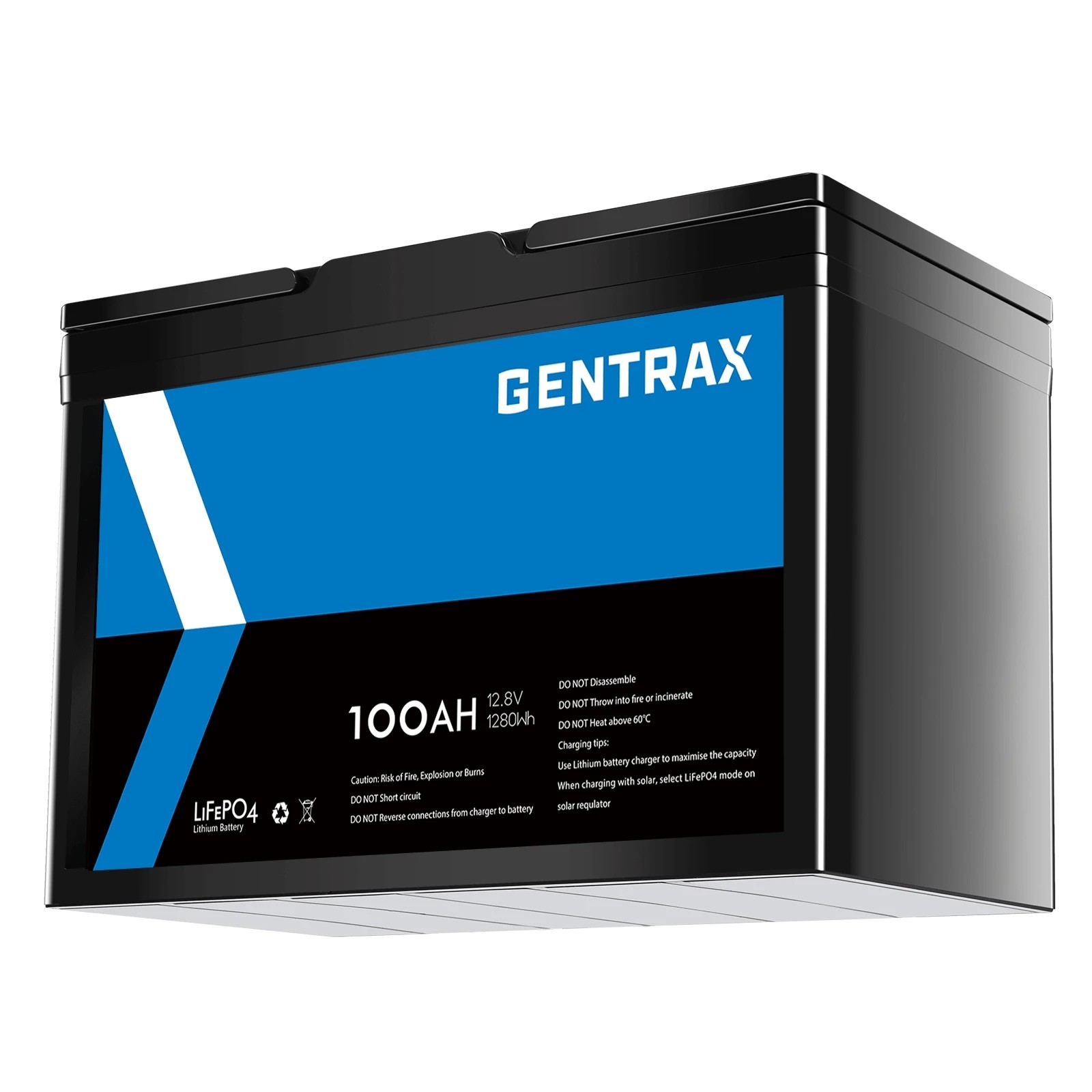

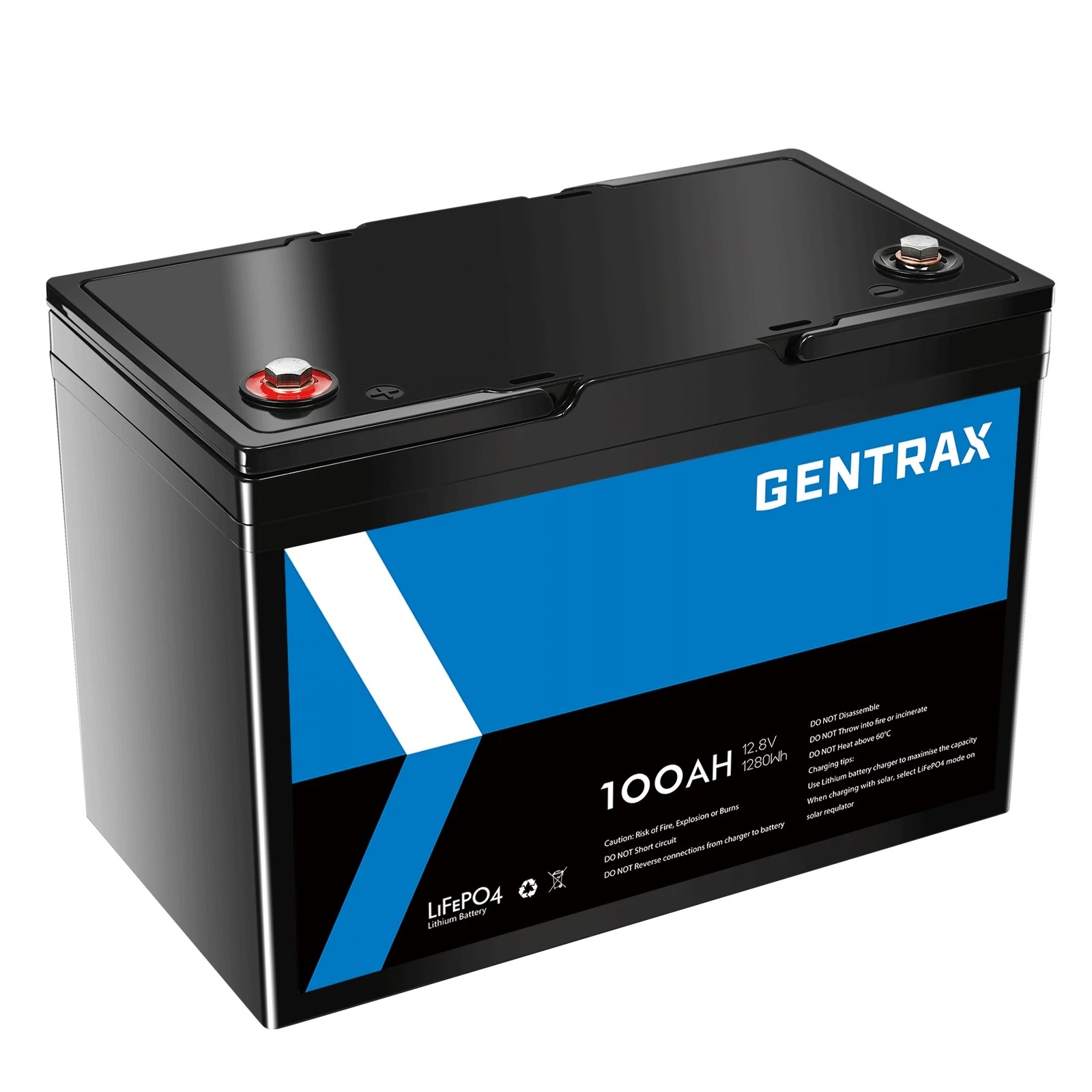

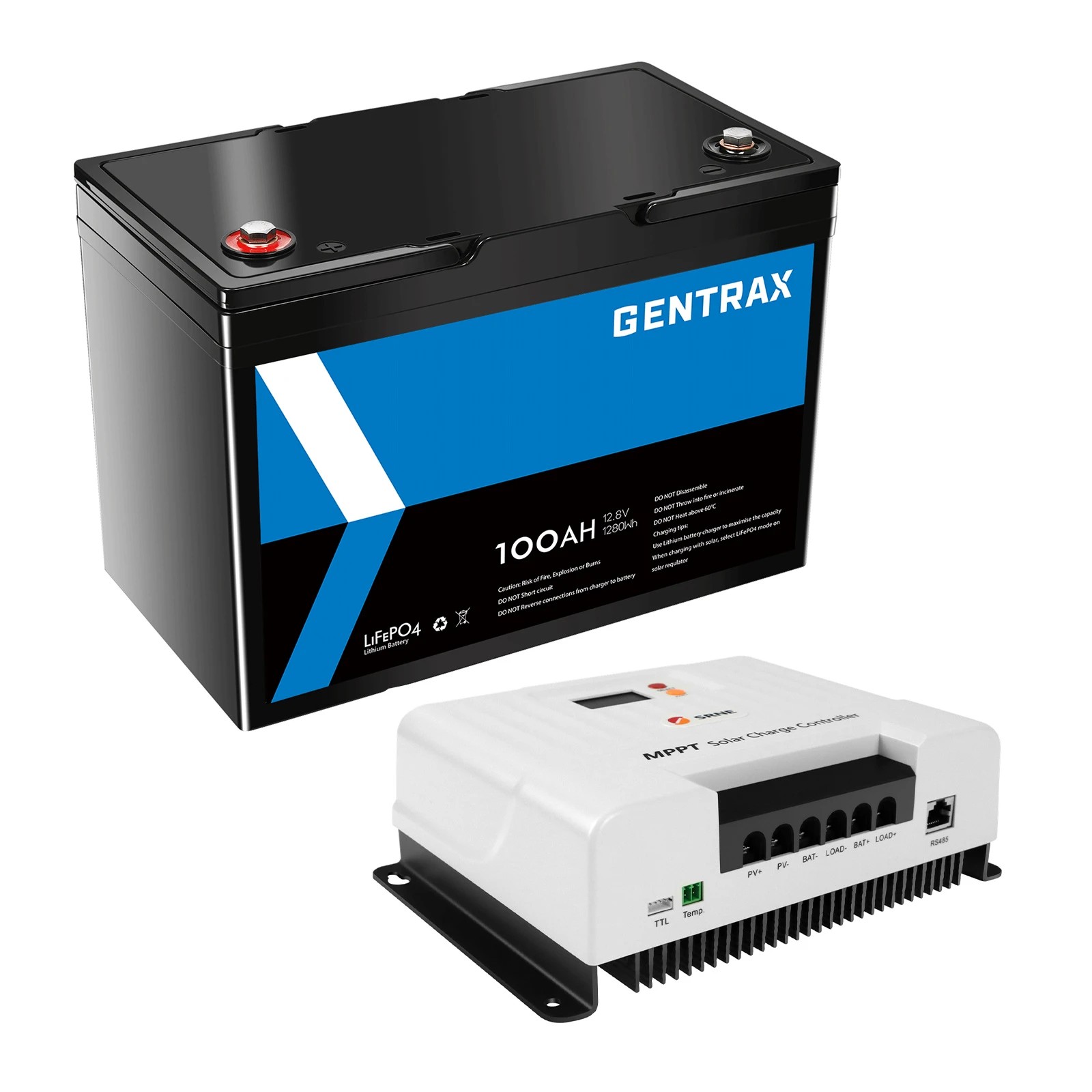

Product 1: 12V 100Ah Lithium Battery

• Specifications

• Brand: GENTRAX

• Nominal Voltage: 12.8V

• Nominal Capacity: 100Ah

• Rated Energy: 1280Wh

• Approx Life Cycles: ≥3000

• Battery Manage System: 100A

• Standard Charging Current: 50A

• Max. Charging Current: 100A

• Standard Discharge Current: 100A

• Max. Continuous Discharge Current: 100A

• Max. Discharge Current 5 sec: 200A

• Charger: 14.6V 50A (not include)

• Charging Voltage: 14.2-14.6V

• Absorption Voltage: 14.2-14.6V

• Float Voltage: 13.6V

• Overcharge Protection: 15V

• Overcharge Recovery: 14.4V

• Overdischarge Protection: 11.2V

• Overdischarge Recovery: 10.6V

• Charge Temperature : 0°C to 45°C

• Discharge Temperature : -20°C to 60°C

• Storage Temperature: -10°C to 50°C

• Charge Method: CC/CV

• Charging Way: LiFePO4 Charger, Solar Panel, Generator

• Case Material: ABS Plastic

• Battery Type: LiFePO4 Lithium Battery

• Battery Model: Standard

• Battery Shape: General

• Certifications: UN38.3

• Protection Class: IP65

• Warranty in Years: 2

• Bolt Type: M8

• Bolt Material: Iron nickel-plated

• Cell Grouping: 4S2P

• Parallel Connection: Max 4

• Series Connection: No

• Dimensions & Weight

• Product Size: L306 x W169 x H215mm

• Package Size: L360 x W230 x H271mm

• Bolt Terminal Size: Hexagon x 14mm

• Bolt Terminal Perimeter: 25.12mm

• Net Weight: 9.5kg

• Gross Weight: 10.4kg

• Package List

• 1x 100Ah Lithium Battery

• 2x Terminal Bolts M8*14

• 2x Insulating Covers

• 2x Screw Spring Washer

• 4x Screw Washers

• 1x User Manual

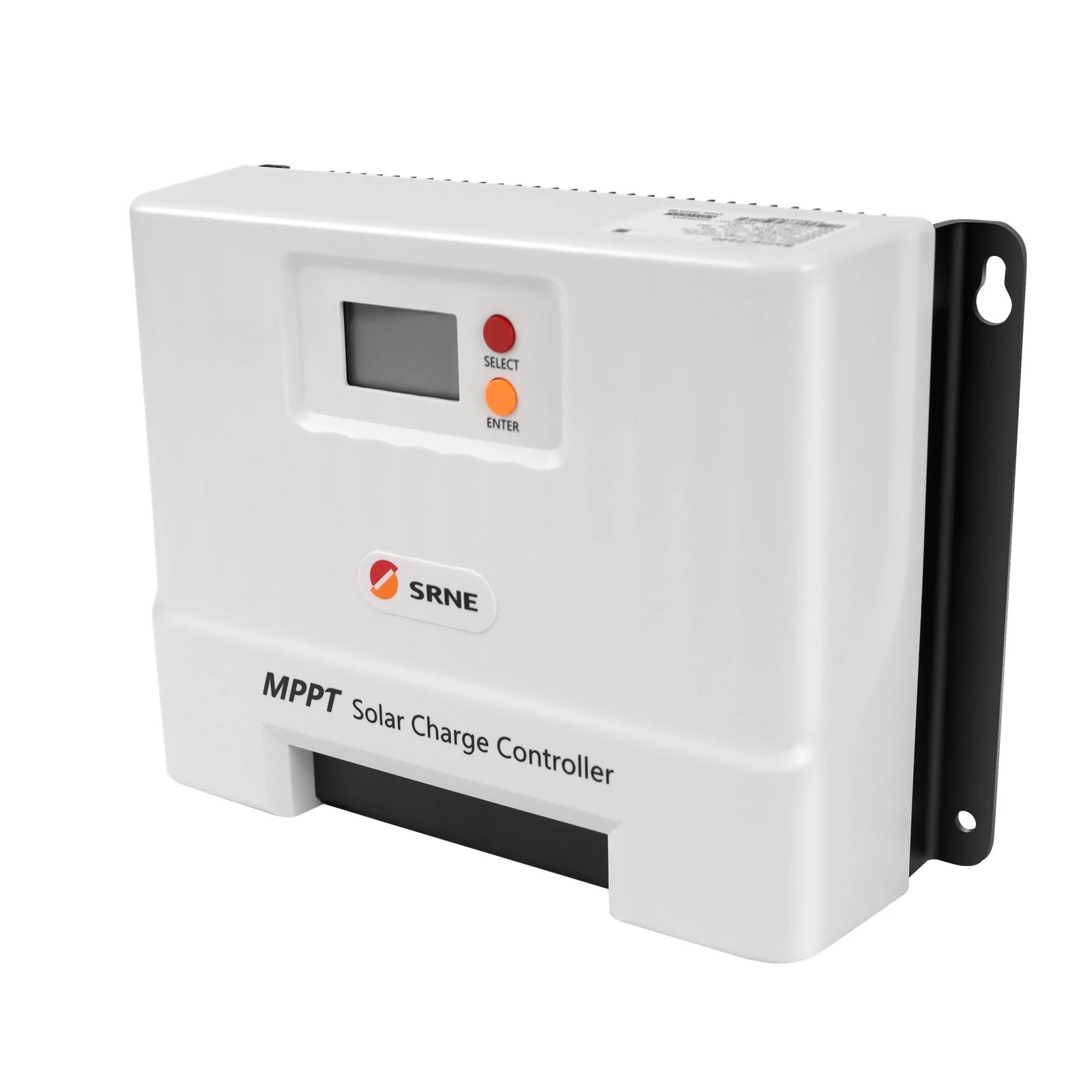

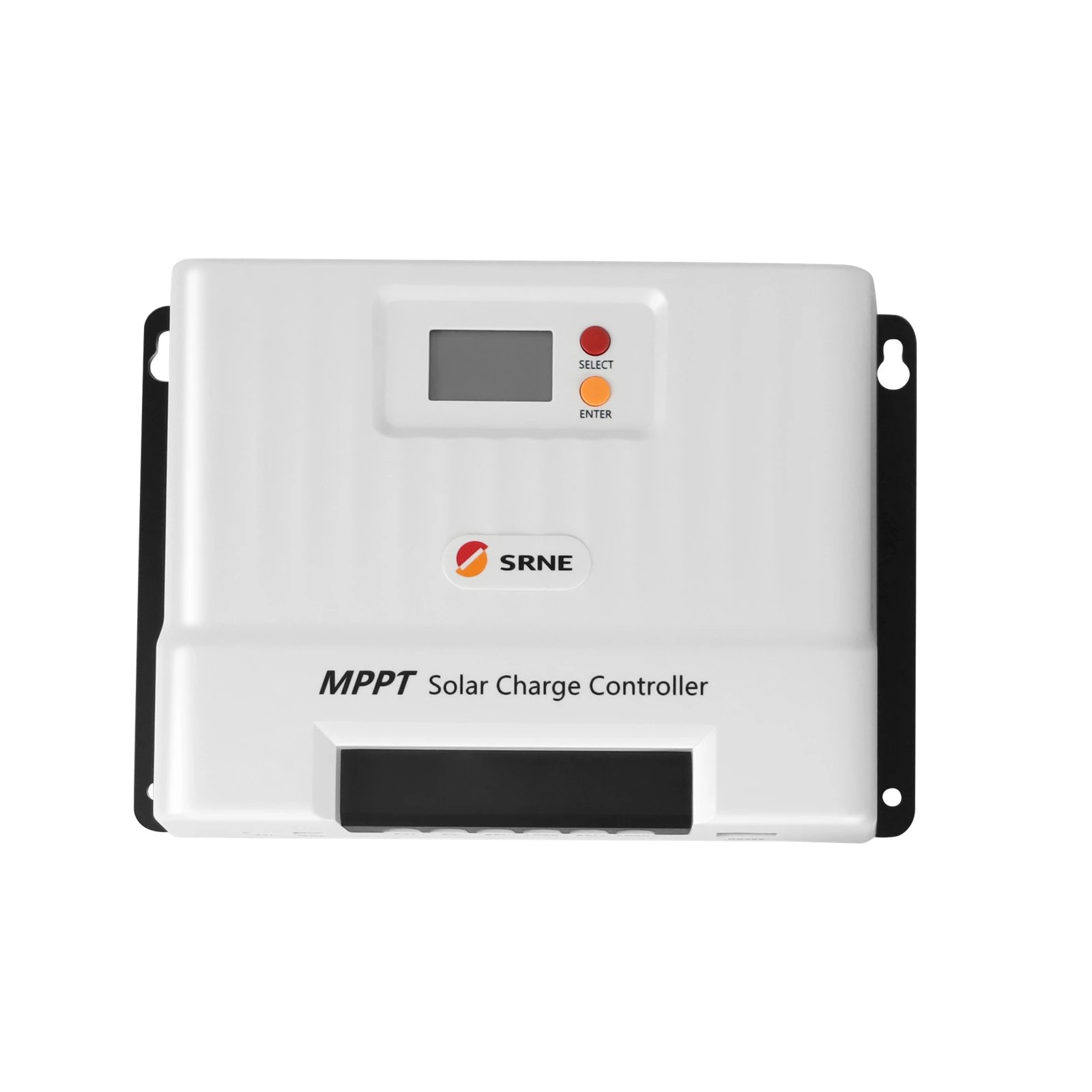

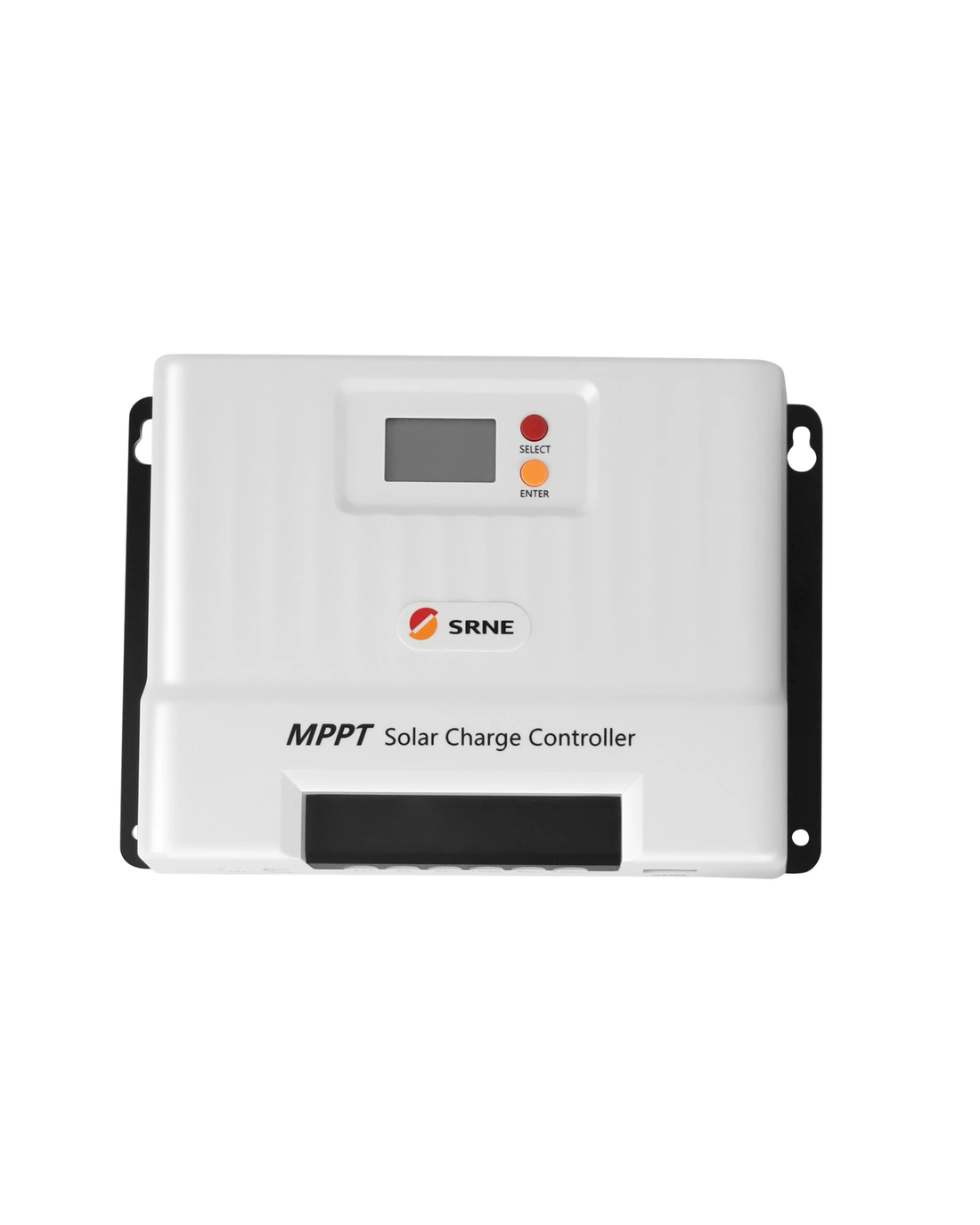

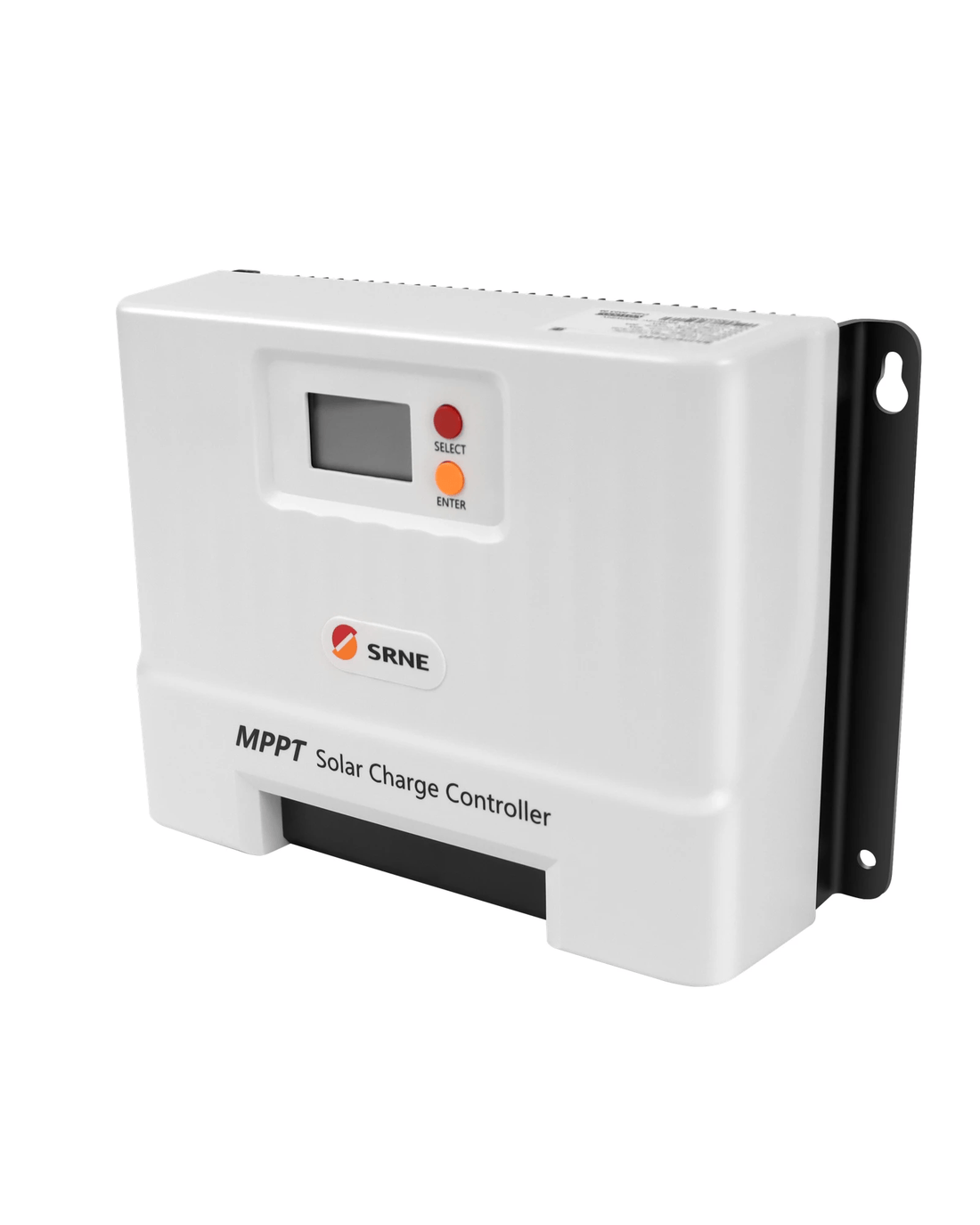

Product 2: 20A Solar Charge Controller MPPT Battery Charger

• Electrical Parameters

• System voltage: 12V/24V

• Rated charging current: 20A

• Static power consumption: ≤10mA

• Maximum solar panel power: 260W/12V; 520W/24V

• Maximum PV open-circuit voltage: 60V (55V protection, 50V recovery)

• MPPT operating voltage range: (Battery voltage +2V)~45V

• Battery operating voltage range: 8V-32V

• MPPT tracking efficiency: >99%

• Charging conversion efficiency: 85%-98% (10%-100% of rated power)

• Rated load current: 20A

• Load operating mode: Light control, light control + time control, manual mode (default), debugging mode, normally open

• TTL communication: Baud rate: 9,600 bps

• RS485 communication: RJ45 interface, with power output 5V/200 mA,The baud rate is 9,600 bps by default, adjustable.

• Bluetooth communication: Optional

• CAN communication: RJ45 interface, optional (RV-C protocol)

• Historical data: Save the last 200 days of historical data

• Protection function: PV overvoltage protection, PV reverse connection protection, PV shortcircuit protection, night reverse charging protection, input power limit protection, over-temperature protection, load short-circuit protection, overload protection, battery over-voltage/over-discharge protection,battery reverse connection protection, battery end short circuit protection.

• Grounding type: Grounding of common negative electrode

• Cooling mode: Natural heat dissipation

• Charging current setting: Yes

• Full-charging setting: Yes

• Constant voltage output setting: Yes

• Charging temperature compensation of lead-acid battery: Yes

• Temperature unit setting: Yes

• Overload/Short-circuit protection: Yes

• Environmental Data

• Protection grade: IP32

• Operating ambient temperature range: -35°C~65°C

• Mechanical Specifications

• Dimension: 181*118*61.7mm

• Mounting hole spacing: 161*96mm

• Weight: 650g

• Fixed hole position: Φ4.5mm

Tips: The items in this bundle will be shipped separately, the packages may arrive at different times, please be patient and wait.

Tips for Bluetooth functionality:

Additional Bluetooth module is required to achieve Bluetooth functionality.
