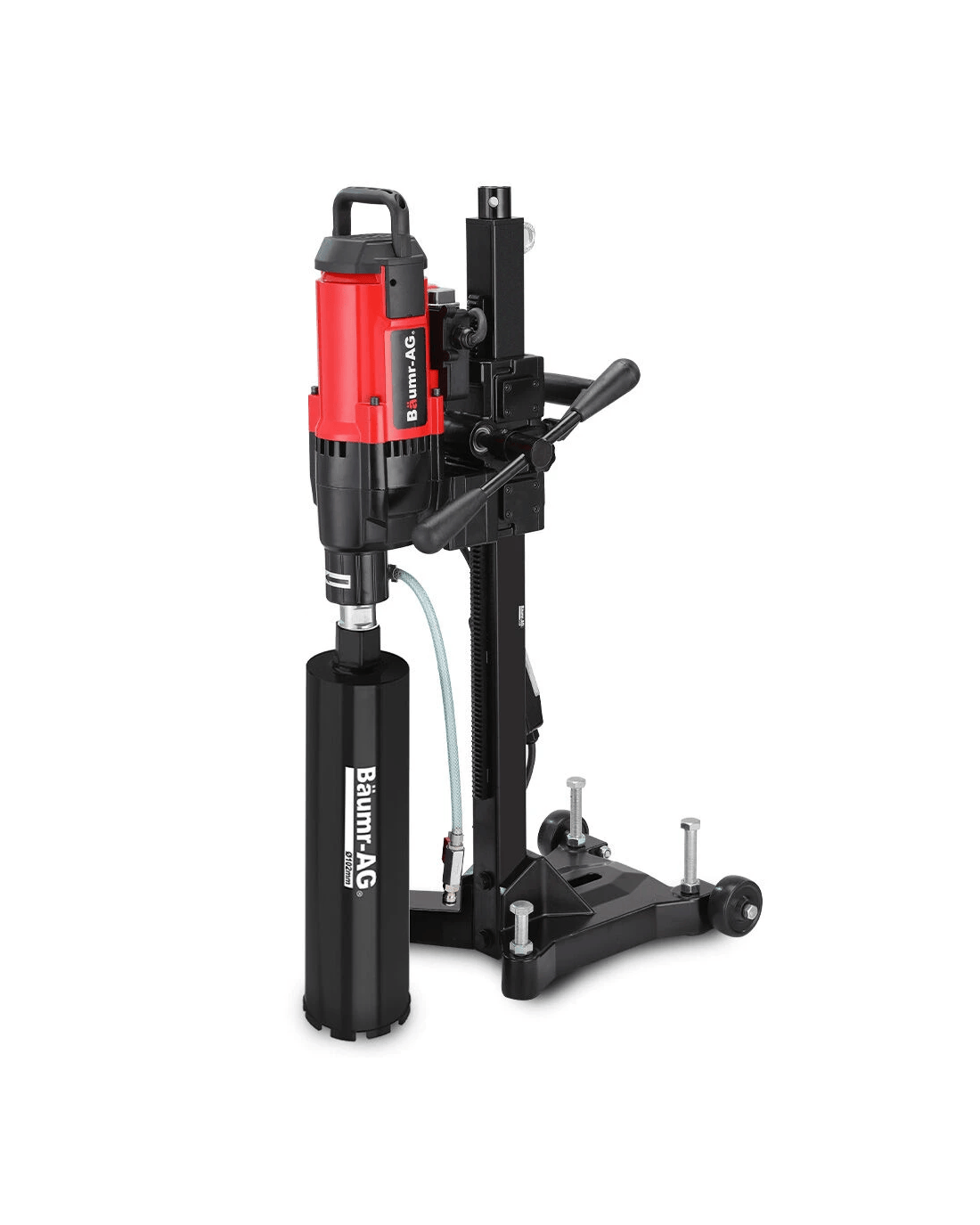

Baumr-AG 3200W 280mm Wet/Dry Core Drill w/ Wheeled Stand & 102mm Bit Combo, for Concrete Coring Hole Drilling

$699

(0)

SKU : P_110203461

Online only

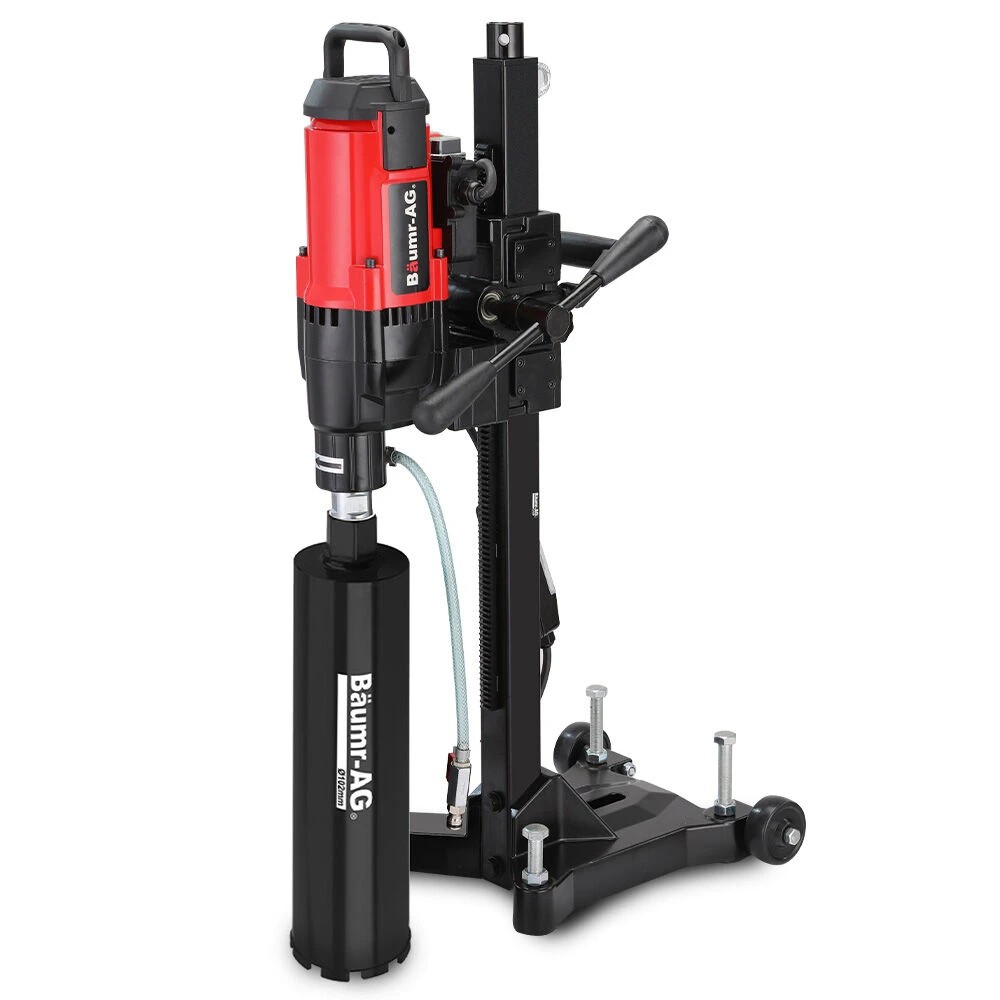

1 Baumr-AG 3200W 280mm Wet/Dry Core Drill w/ Wheeled Stand & 102mm Bit Combo, for Concrete Coring Hole Drilling, 1 of 1
Marketplace
Shop Edisons

Baumr-AG 3200W 280mm Wet/Dry Core Drill w/ Wheeled Stand & 102mm Bit Combo, for Concrete Coring Hole Drilling

$699

(0)

SKU : P_110203461

Online only
Sold and shipped by Edisons

Description

FEATURES

  • Heavy-duty 3200W commercial-grade motor for consistent power
  • 280mm maximum drilling diameter
  • Includes 102mm diamond core drill bit for reinforced concrete, red brick, and granite
  • Adjustable stand mounts from 0 to 90 degrees for vertical and horizontal drilling
  • Wheeled base for effortless positioning and stability
  • Copper motor for high reliability
  • Slip-clutch system prevents overload and sudden bit seizing
  • 550 RPM single speed for smooth and controlled drilling
  • IP54 rating for dust protection and splash resistance
  • Aluminium construction for durability in tough environments
  • Steel-forged drill shaft ensures long-lasting performance
  • 1 ¼ inch UNC standard-sized spindle thread
  • The copper water inlet is corrosion-proof
  • Non-slip handle for a secure grip and fatigue reduction
  • Double insulation for motor and operator protection

SPECIFICATIONS

  • 280mm Core Drill
  • Input Power: 240V 50Hz AC
  • Rated Output Power: 3200W
  • Cooling method: Air
  • No load speed: 550r/min
  • Speeds: 1
  • Drilling Diameter Range: 20-280mm
  • Spindle Thread: 1-1/4" UNC
  • Coring Type: Wet/Dry Coring
  • Construction Material:
    Drill: Aluminium Chassis, Steel Forged Output Shaft, Copper Water Inlet, Copper Motor
    Stand: Aluminium Guide Rail, Steel Base
  • IP Rating: IP54
  • Diamond Core Drill Bit - 102mm
  • Cutting Diameter: 102mm
  • Length: 10mm
  • Type: Hole Cutter
  • Featured Refinements: Hole Saw
  • Shaft Material: Commercial Grade Steel
  • Cutting Teeth Material: Diamond/Steel Blend
  • Thread Size: 1 1/4 UNC
  • Cutting Teeth Length: 10mm
  • Threaded Connection: 1 1/4 UNC

IN THE BOX

  • 1 x Baumr-AG Core Drill
  • 1 x Drill Rig (Assembly Required)
  • 1 x Baumr-AG Diamond Core Drill Bit
  • Note: User Manual is accessible online

SIZE & WEIGHT

280mm Core Drill with Stand

  • Product Dimensions (W x D x H): 260 x 520 x 930mm
  • Product Weight: 28kg
  • Carton Dimensions (W x L x H): 32 x 100 x 44cm
  • Carton Weight: 32kg

Diamond Core Drill Bit - 102mm

  • Product Dimensions: φ102mm x L455mm
  • Product Weight: 2.6kg
  • Carton Dimensions (W x L x H): 12 x 47 x 11cm
  • Carton Weight: 3kg

SKU: DRLCREBM28WA-102
