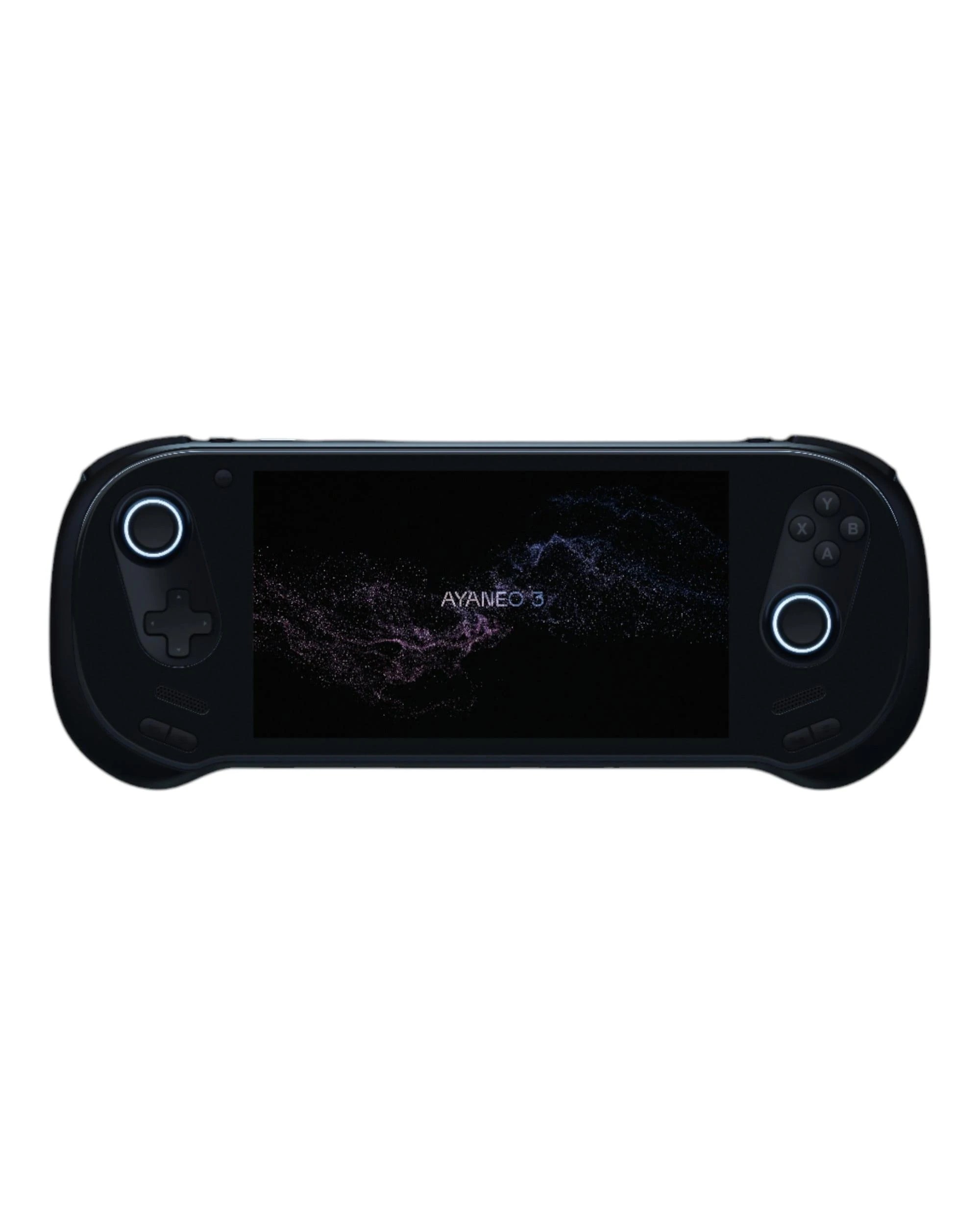

Ayaneo 3 The World's First Modular Handheld Modular Buttons: The first modular design in handheld consoles; the sticks orientation can be adjusted to suit your preferred layout. The ABXY buttons are detachable and can be swapped at will, with customisable key values. Agile Hall Triggers: Ayaneo handheld introduces the limit-trigger design for the first time, optimising the appearance and contour. The lock button “clicks” to switch between the 7.5mm long travel and the 3mm crisp feel, allowing tactile freedom in different games. Magnetic Suspension Motor: Jointly developed with GuliKit Technology, it innovatively supports both linear motor and rotor motor vibration modes, allowing you to freely enjoy the impact of continuous strong vibrations and the realistic, delicate haptic feedback from resonant vibrations. Ergonomic Dual Rear Buttons: Support preset functions, designed with ergonomics to prevent accidental pressed, providing a convenient and worry-free experience. Immersive Sound: Dual Smart Amp speakers on the front deliver immersive stereo sound while the large speaker cavities offer a broad sound field and balanced tone. HyperSound 2.0's finely-tuned algorithm provides pure and transparent audio quality.
Specifications

• Screen Size: 7" Borderless High-refresh-rate Mirror Screen
• Screen Specifications

  • OLED：1920 x 1080丨800nits丨315 PPI 150% sRGB color gamut volume丨110% DCI-P3 60Hz / 90Hz / 120Hz / 144Hz for option
• CPU: AMD Ryzen™ 7 8840U
• Memory: LPDDR5X 7500MT/s
• SSD: M.2 2280 PCIe 4.0
• Storage Combination: 32GB+1TB
• Cooling System:

  • 7093mm Triple Copper Pipes + Copper Sheet
  • 29062mm Fin Surface Area
  • Large PC-level Turbo Fan
    Performance: Up to 35W
• Color: Starry Black
• Controller: Master Controller 2.0丨Detachable ABXY Buttons丨All Buttons Customizable
• Optional Modules

  • Standard Module | Joystick + D-Pad + ABXY buttons | Conductive Rubber / Thin-film micro-action Buttons Available
  • Touchpad Joystick Module
  • Touchpad + D-Pad + ABXY buttons
  • Fighting Module | Joystick + Eight-way D-Pad + Six-button Module (Not Support Reverse Installation)
• Joystick: RGB Hall Joysticks丨250Hz
• Triggers: Limited Hall-effect Triggers丨250Hz丨Linear / Micro-action One-click Switch
• Vibration Motor: Magnetic Suspension Motor
• Speakers:

  • HyperSound 2.0 Panoramic Sound
  • Large-Cavity Dual Speakers
  • Gyroscope: Dual Six-axis Gyroscopes
• Interfaces:

  • 2 x USB4丨40Gbps丨DP 1.4
  • 1 x OCuLink丨64Gbps
  • 1 x Micro SD丨300MB/s
  • 3.5mm Headphone Jack
• Unique Features:

  • SoundTAPMagic Vibration
  • Hardware-Level Keyboard-Mouse Mode
• Special Buttons:
  • Controller protocol switch button
  • Switch between controller mode and keyboard/mouse mode 2 x Rear Buttons
  • Customizable Shortcut Functions and Macro Programming
  • Home Button
  • Quickly Call up Windows Game Bar
• Biometric Functions: Power Button Integrated with Fingerprint Recognition
• Battery Capacity: 49Wh
• Charging Power: 65W PD丨Supports Bypass Charging
• Dimensions: 289.8 x 115 x 22.4mm（Grip Area 34.8mm）
• Weight: 690g（Standard Modules Installed）
• Connectivity: Latest Ultra-fast WiFi / BT 5.3
• Software Management: AYASpace 3.0
• OS: Windows 11 64-bit Home Edition

Item Specifics

Barcode: 6974817423458
Manufacturer: ANYUN INTELLIGENT TECHNOLOGY (HONG KONG) CO.
Weight (Packaged): 1.30 kg
