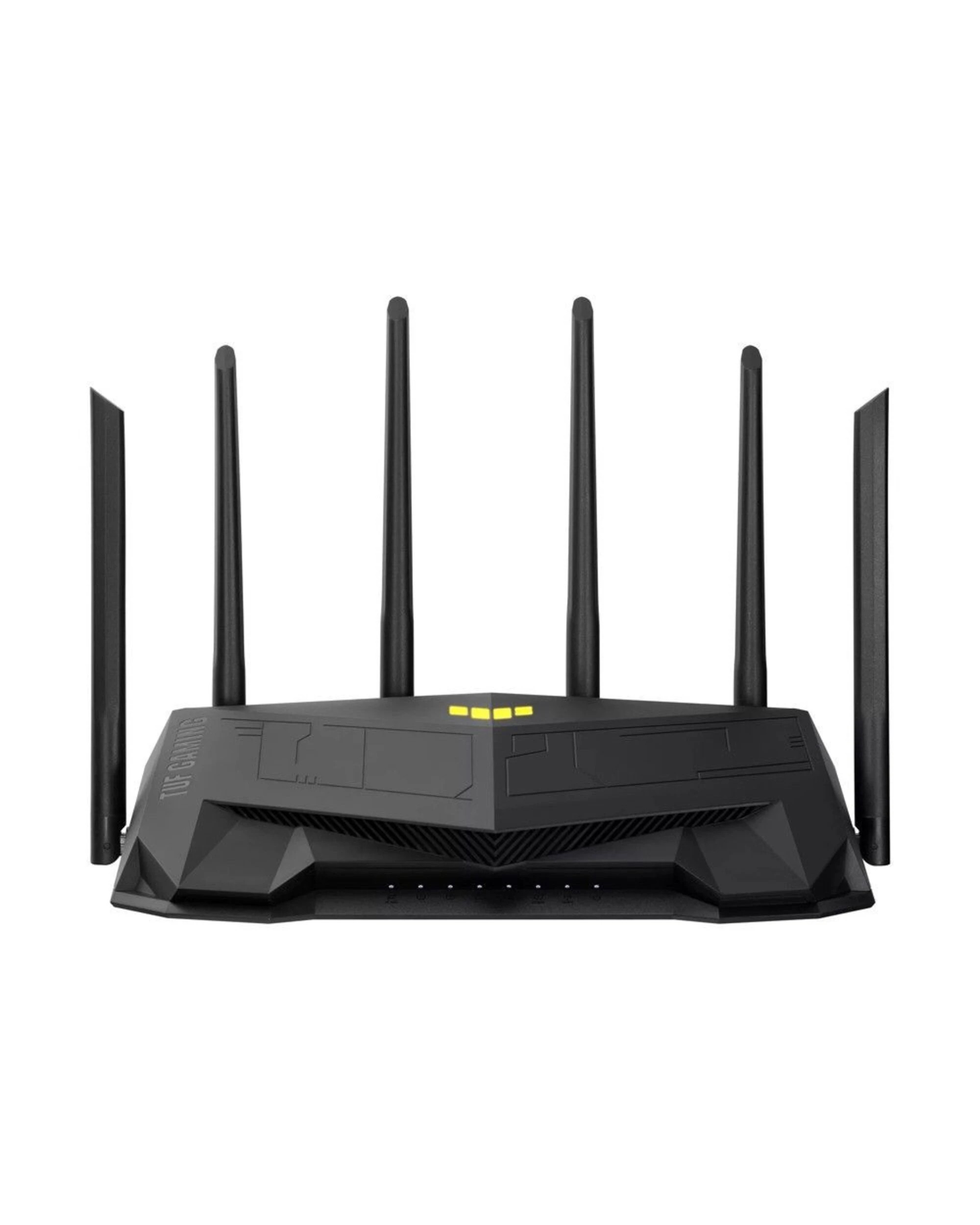

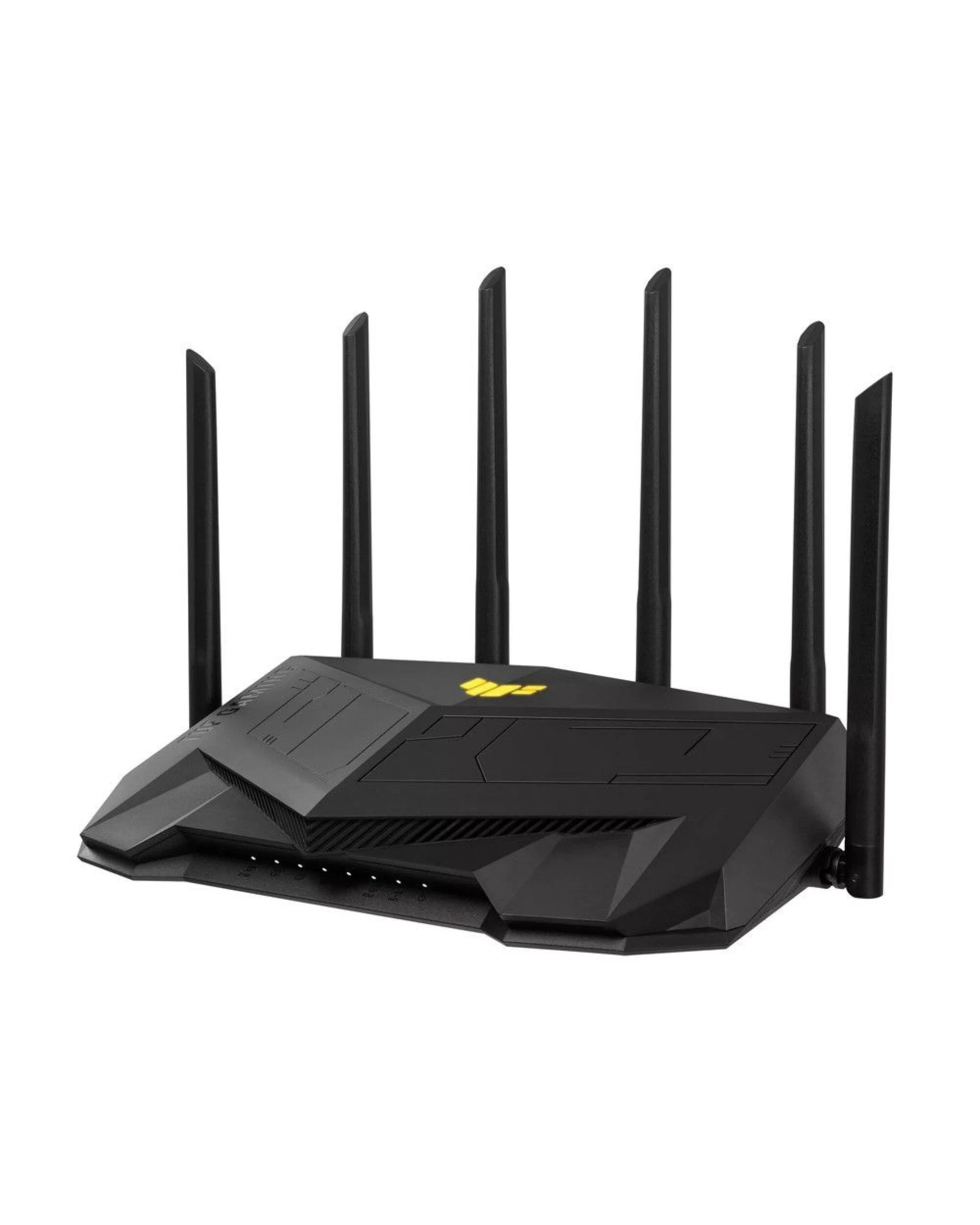

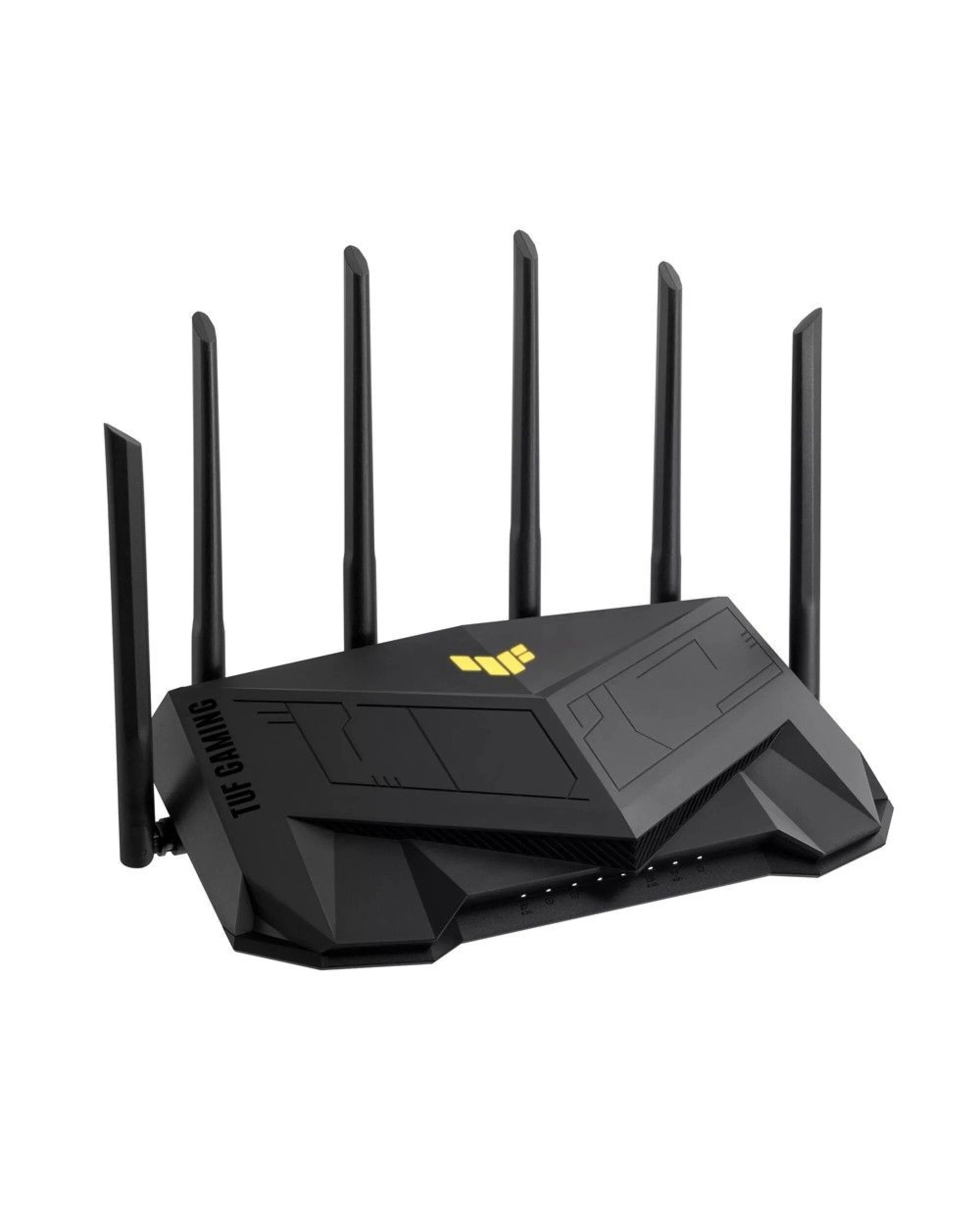

ASUS TUF Gaming AX6000 Dual Band WiFi 6 Gaming Router
This TUF Gaming AX6000 Dual Band WiFi 6 Gaming Router has a dedicated Gaming Port, Dual 2.5G Port, 3steps port forwarding, AiMesh for mesh WiFi, AiProtection Pro network security and AURA RGB lighting.
TUF Gaming AX6000 is designed to give you stable and fast wireless and wired connections in device-dense environments. It's a router that benefits all of your devices, from laptops, smartphones, and game consoles right down to all the IoT devices in your home.
WiFi 6 provides faster wireless speeds with OFDMA, BSS coloring and MU-MIMO technologies, and it also boosts network efficiency, so all your devices get their fair share of WiFi bandwidth. It's perfect for busy networks with lots of different WiFi devices, such as laptops, smartphones and smart home devices.
For true multi-gigabit performance, you need both WAN and LAN connections that support these speeds. TUF Gaming AX6000 features both WAN and LAN aggregation, so you can enjoy 5 Gbps wired speeds from your modem all the way to your PC and NAS.
Features:
Ultrafast WiFi 6 - Ultra WiFi speed up to 6000 Mbps and 4X network efficiency.
Dual 2.5G Ports - Dual 2.5G ports with flexible WAN/LAN port configuration.
Fast & Stable Wired Gaming - Dedicated gaming port to prioritize connected gaming device.
ASUS AiMesh Support - Support AiMesh to create a whole-home mesh network.
Tested Durability and Stable Operation - TUF Gaming AX6000 is built to be durable and undergoes verified testing to ensure reliable, stable operation.
Specifications:
Network Standard:
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
IPv4
IPv6
Product Segment: AX6000 ultimate AX performance : 1148+4804 Mbps
WiFi Data Rate:
802.11a : up to 54 Mbps
802.11b : up to 11 Mbps
802.11g : up to 54 Mbps
WiFi 6 (802.11ax) (2.4GHz) : up to 1148 Mbps
WiFi 6 (802.11ax) (5GHz) : up to 4804 Mbps
Antenna: External antenna x 6
Transmit/Receive:
2.4GHz 4x4
5GHz x 4x4
Processor: 2.0 GHz quad-core processor
Memory: 256MB Flash, 516 MB RAM
Boosts Speed:
OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
1024-QAM high data rate
20/40/80/160 MHz bandwidth
Operating Frequency: 2.4GHz / 5GHz
Operating Mode:
Wireless router mode
Access point mode
Media bridge mode

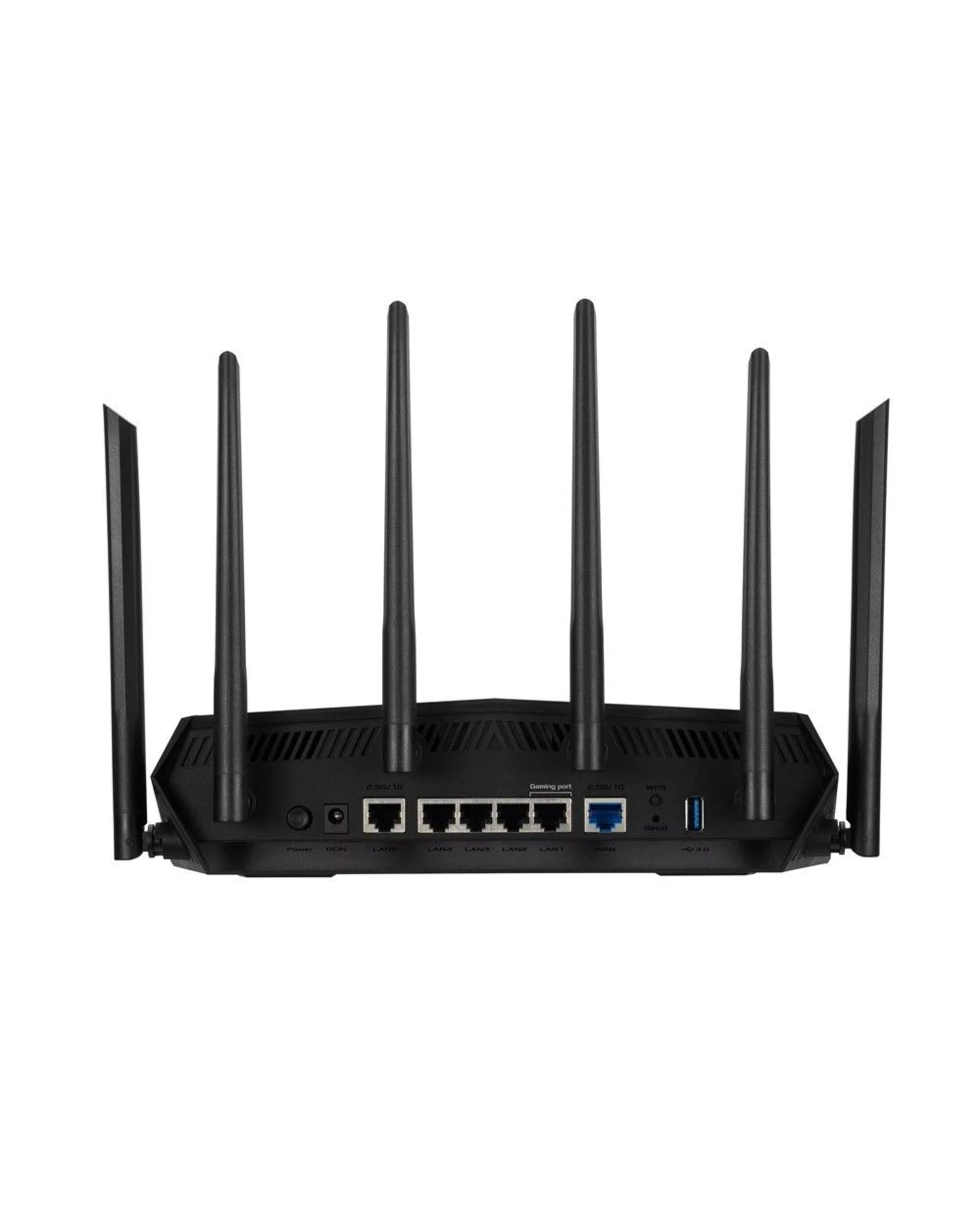

I/O Ports:
RJ45 for 2.5 Gigabits BaseT for WAN x 1
RJ45 for 2.5 Gigabits BaseT for LAN x 1
RJ45 for Gigabits BaseT for LAN x 4
USB 3.2 Gen 1 x 1
Buttons: WPS Button, Reset Button, Power Button
LED Indicator:
Power x 1
WiFi x 1
1G LAN x 4
2.5G WAN x 1
2.5G LAN x 1
Power Supply:
AC Input: 100V~240V (50~60Hz)
DC Output: 12 V with max. 2.5 A current
Package Contents:
TUF Gaming AX6000 Dual Band WiFi 6 router
RJ-45 cable
Power adapter
Quick Start Guide
Warranty card
AiMesh
AiMesh
Primary AiMesh Router
AiMesh Node
Game
Game Boost/ Acceleration
Mobile Game Mode
Parental Control
"Allow you to block access to unwanted websites and apps."
Safe Browsing
Customized Internet Schedule
Guest Network
"The Guest Network provides Internet connection for guests but restricts access to your local network."
Maximum Guest Network Rule : 2.4GHz x3, 5GHz x3
Guest Network Connection Time Limit
Security
AiProtection
WPS support, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise
WPS
Let's Encrypt
DNS-over-TLS
SSH
Security Scan
Firewall
Maximum Firewall Keyword Filter : 64
Maximum Firewall Network Service Filter : 32
Maximum Firewall URL Filter : 64
AiProtection
Router Security Assessment
Malicious Site Blocking
Two-Way IPS
Infected Device Prevention and Blocking
VPN
VPN Client L2TP
VPN Client Open VPN
VPN Client PPTP
VPN Client WireGuard
VPN Server IPSec
VPN Server Open VPN
VPN Server PPTP
VPN Server WireGuard
Traffic Control
Adaptive QoS
Bandwidth Monitor
Bandwidth Limiter
Maximum Bandwidth Limiter Rule: 32
Traditional QoS
Maximum Traditional QoS Rule : 32
Traffic Monitor
Real-time Traffic Monitor
Wired Traffic Monitor
Wireless Traffic Monitor
Traffic Analyser
Traffic Analysis Period : Daily, Weekly, Monthly
Website History
WAN
Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP
WAN Aggregation
3G / 4G LTE dongle
Port forwarding
Maximum Port Forwarding Rule: 64
Port Triggering
Maximum Port Triggering Rule: 32
DMZ
DDNS
NAT Passthrough : PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, SIP Pass-Through, PPPoE relay
LAN
DHCP Server
IGMP Snooping
IPTV
LAN Link Aggregation
Manually Assign IP Address - Maximum Manually Assign IP Address Rule : 64
Wake on LAN (WOL)
Wireless
UTF-8 SSID
WiFi MAC Address Filter - Maximum MAC Filters : 64
Wireless Scheduler
Airtime Fairness
RADIUS Client
Universal Beamforming
Explicit Beamforming
USB application
File System : HFS+, NTFS, vFAT, ext2, ext3, ext4
Safely Remove Disk
AiCloud
Download Master
AiDisk
Media Server
Time Machine
Samba Server
FTP Server
Shared Folder Privileges
Administration
Configuration Backup and Restore
Diagnosis tools
Feedback System
System Log
New Device Connect Notification
Login Captcha
Connection Diagnosis
Auto Firmware Update
